Section 4 (Disc): Overhaul

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For exploded views of calipers, see Fig 1 and Fig 2 . For exploded view of master cylinder, see Fig 3 .

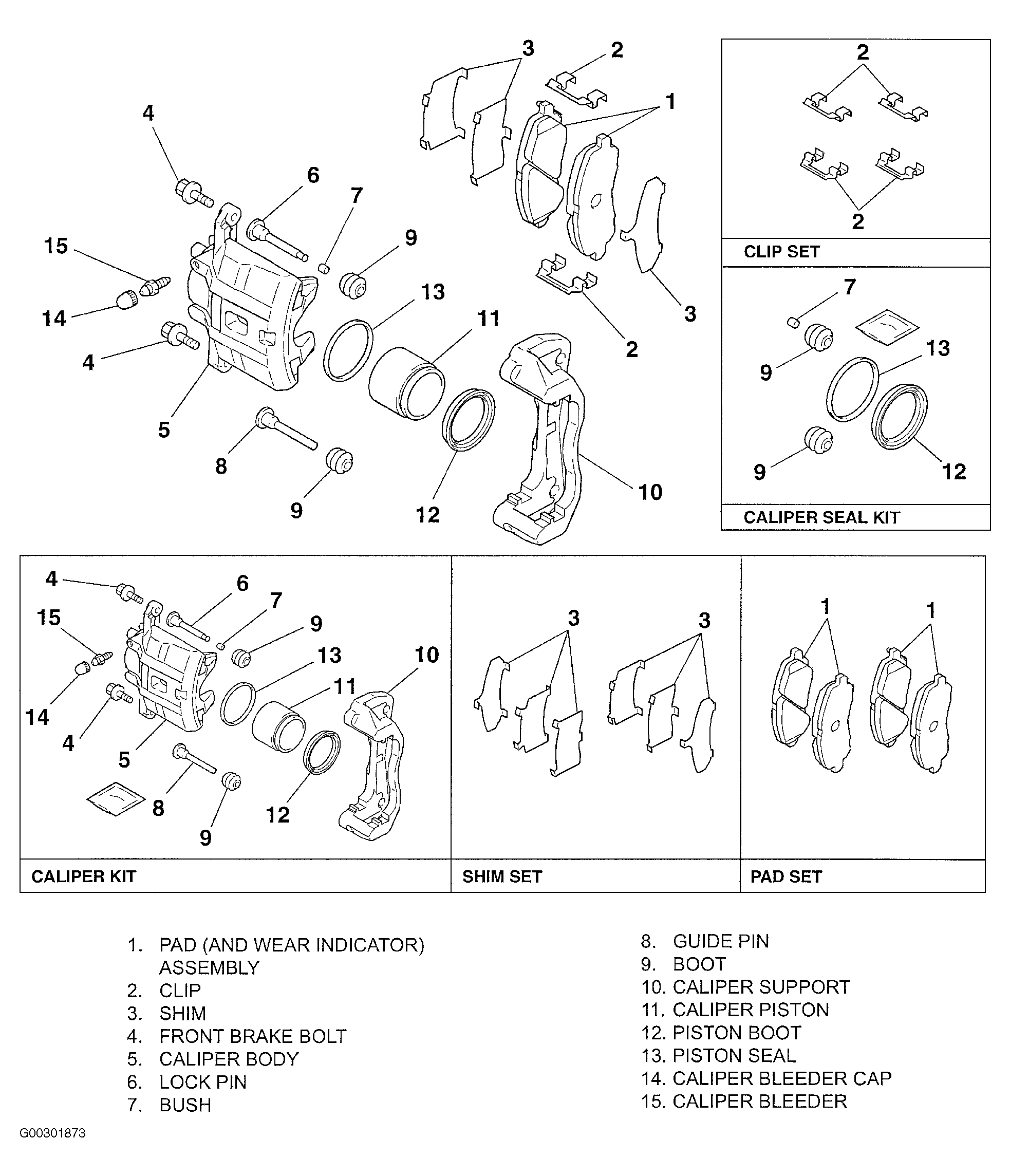

Fig 1: Exploded View Of Front Caliper Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

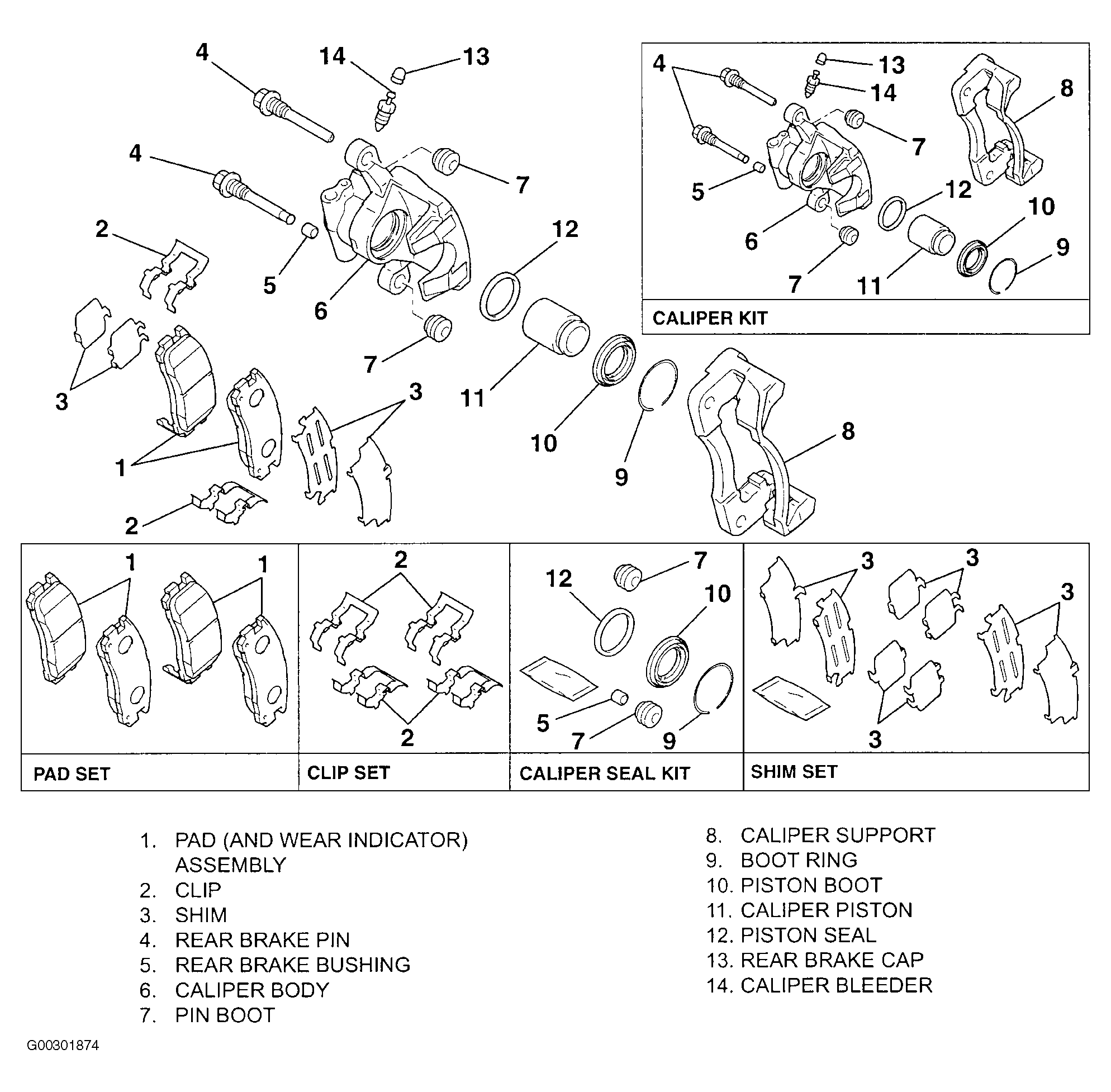

Fig 2: Exploded View Of Rear Caliper Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

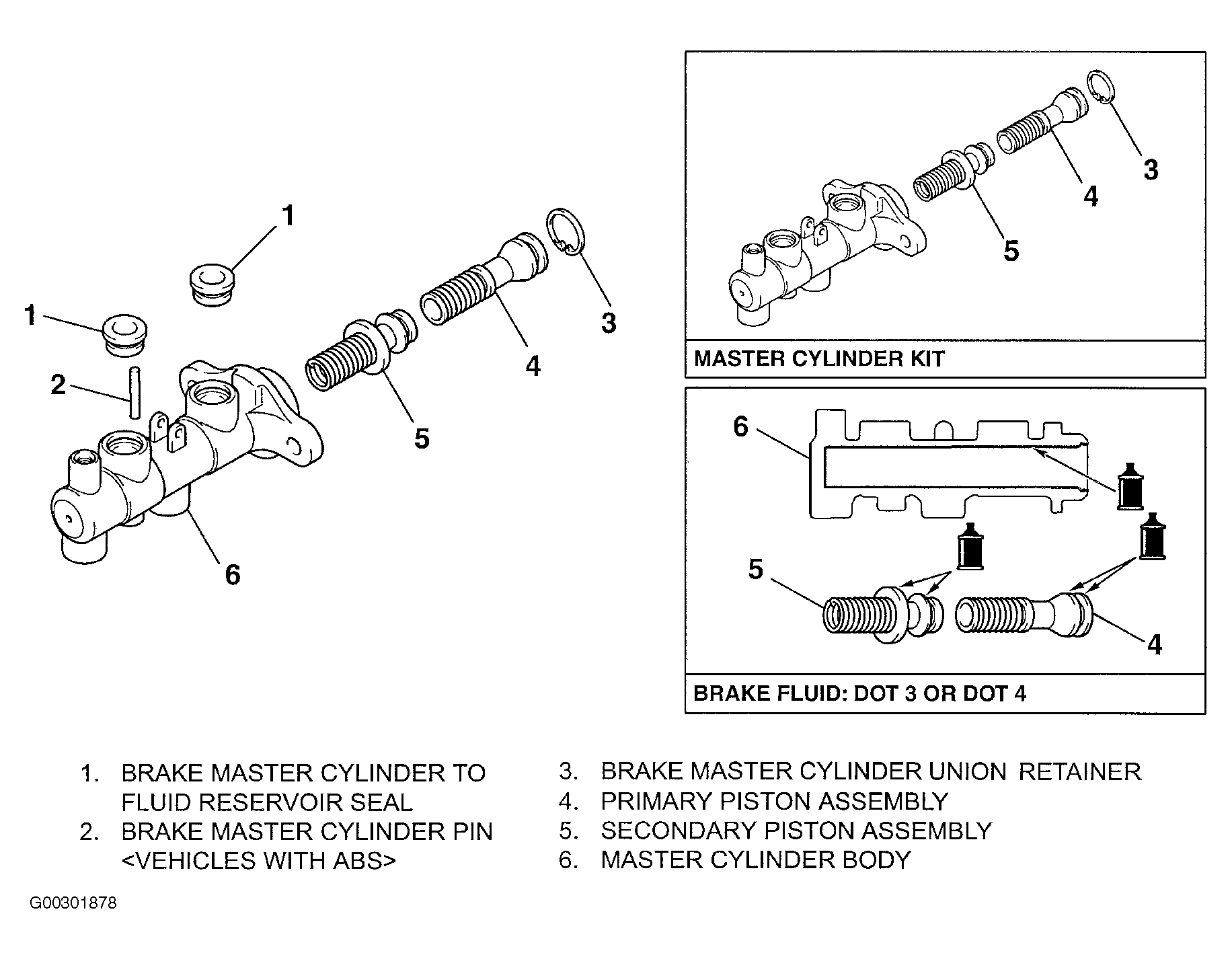

Fig 3: Exploded View Of Master Cylinder

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
