Differential Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

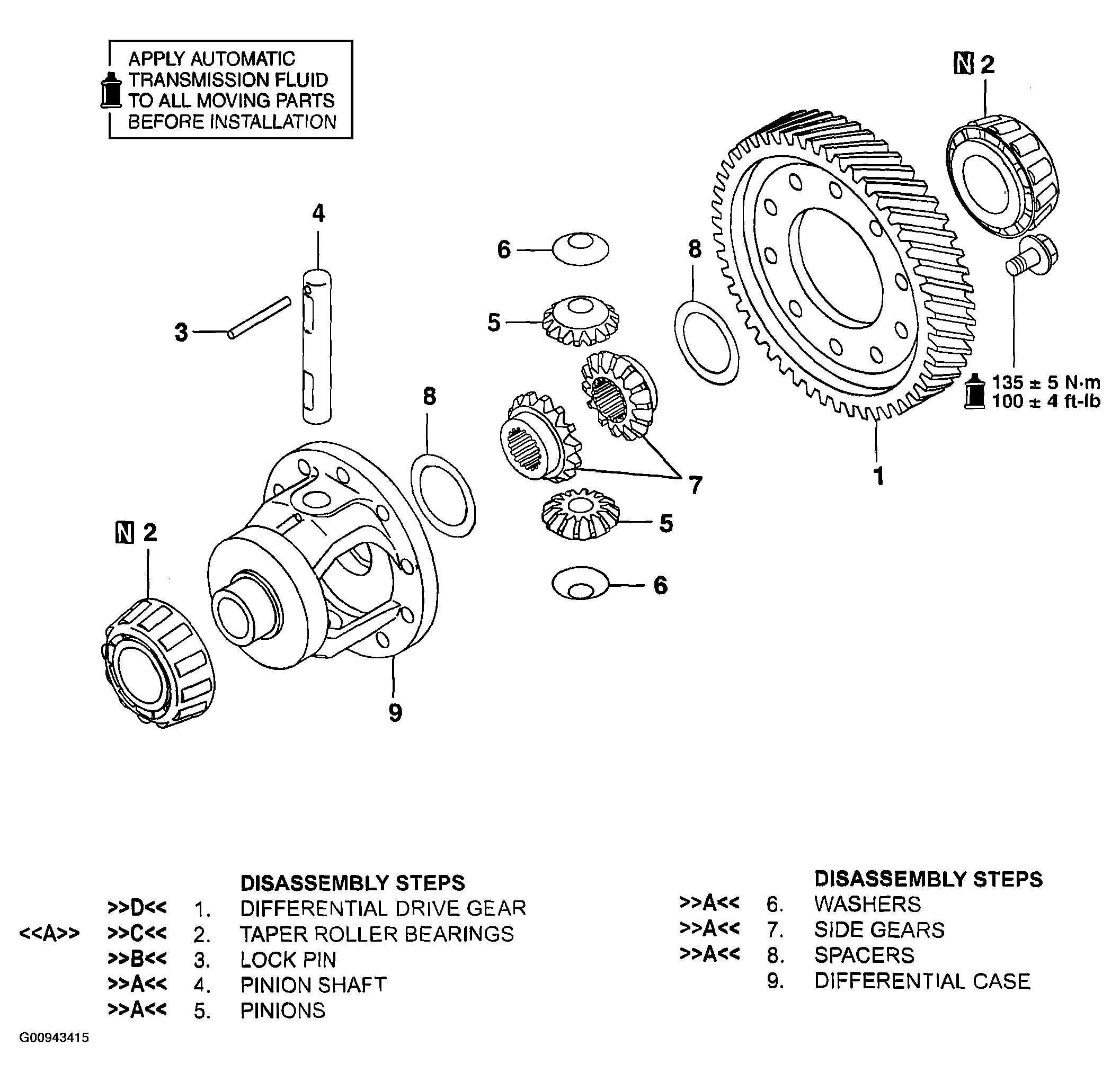

Fig 1: Exploded View Of Differential Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MD998801: Bearing Remover
MD998812: Installer Cap
MD998820: Installer Adapter (42)
MD998823: Installer Adapter (48)
