Sectional View < F4A5A>: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

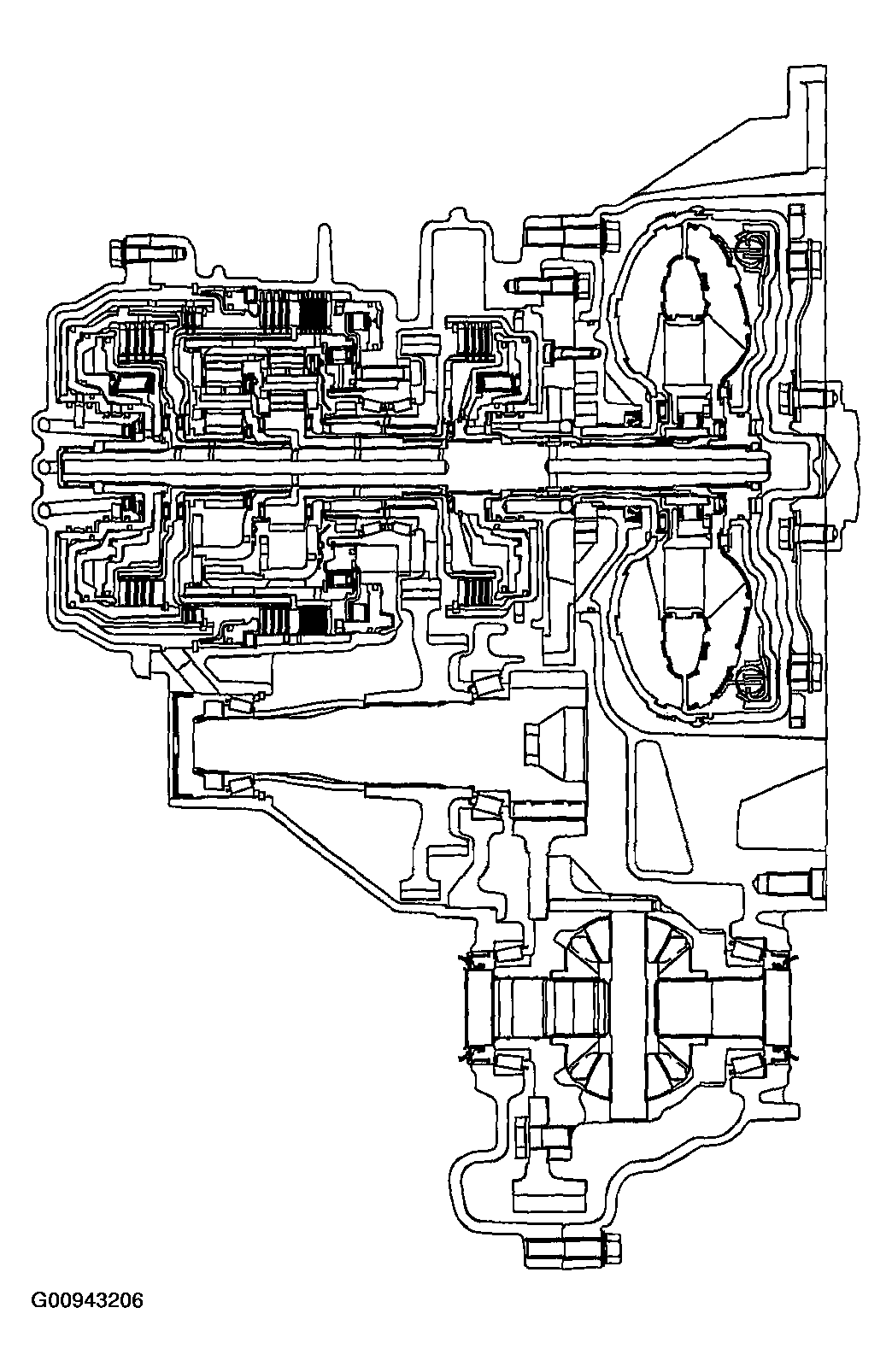

Fig 1: Sectional View Of Automatic Transaxle (F4A5A)
G00943206Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
