Disassembly And Assembly: Assembly

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not reuse the gasket, O-ring, oil seal. Always replace with a new one when assembling.
Do not use grease. Use petroleum jelly (i.e. Vaseline).
Apply ATF to friction components, rotating parts, and sliding parts before installation. Immerse new clutch discs or brake discs in ATF for at least two hours before assembling them.
When replacing a bushing, replace the assembly which it belongs to.
Do not use cloth gloves or shop towels during assembly. Use nylon cloth or other lint-free material.

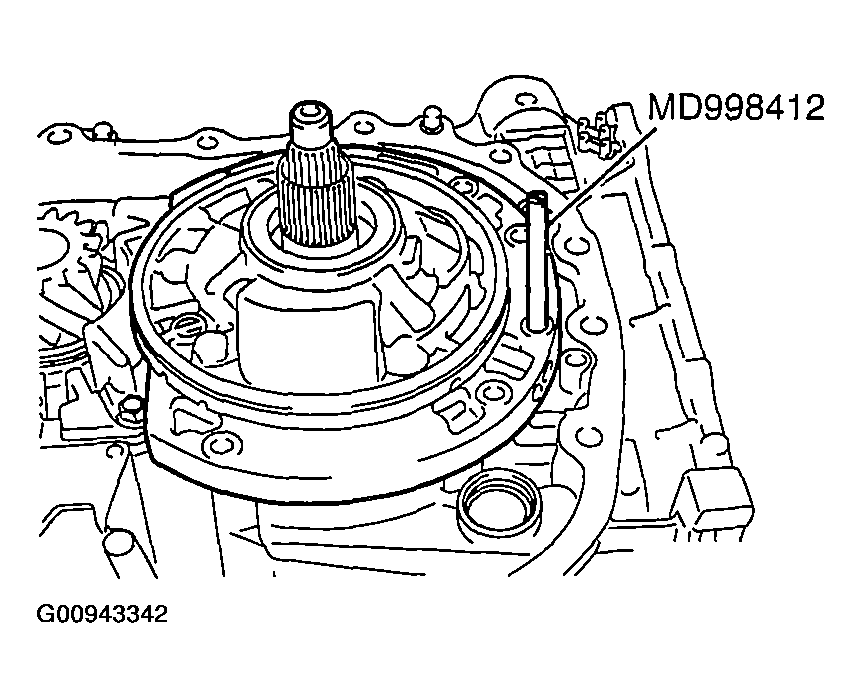

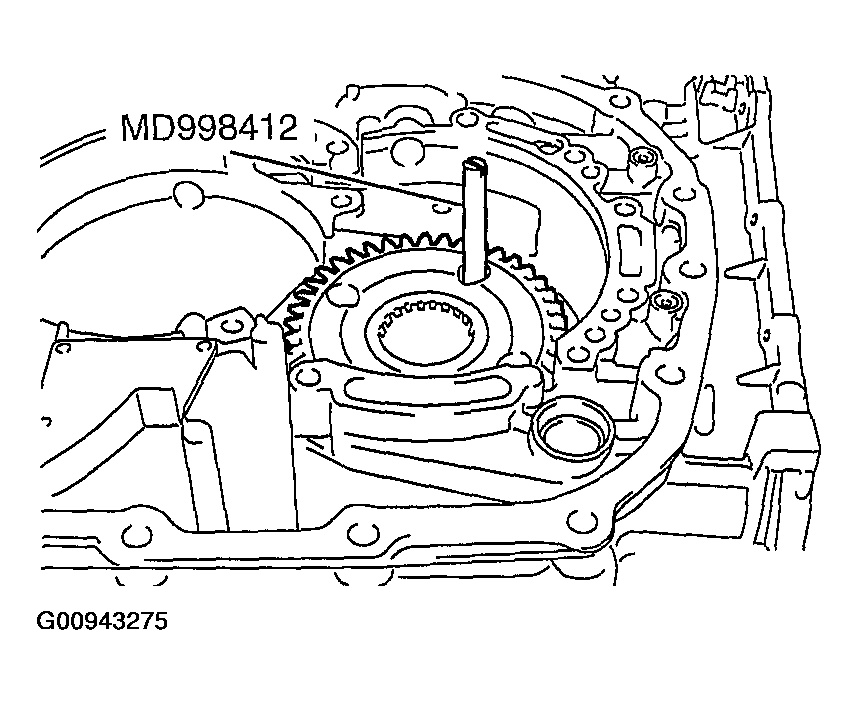

Install special tool MD998412 in the installation screw hole of the transfer drive gear bearing located in the transaxle case. Using this as a guide, install the transfer drive gear bearing and gear in the transaxle case.

Fig 1: Installing Special Tool In Screw Hole Of Transfer Drive Gear Bearing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

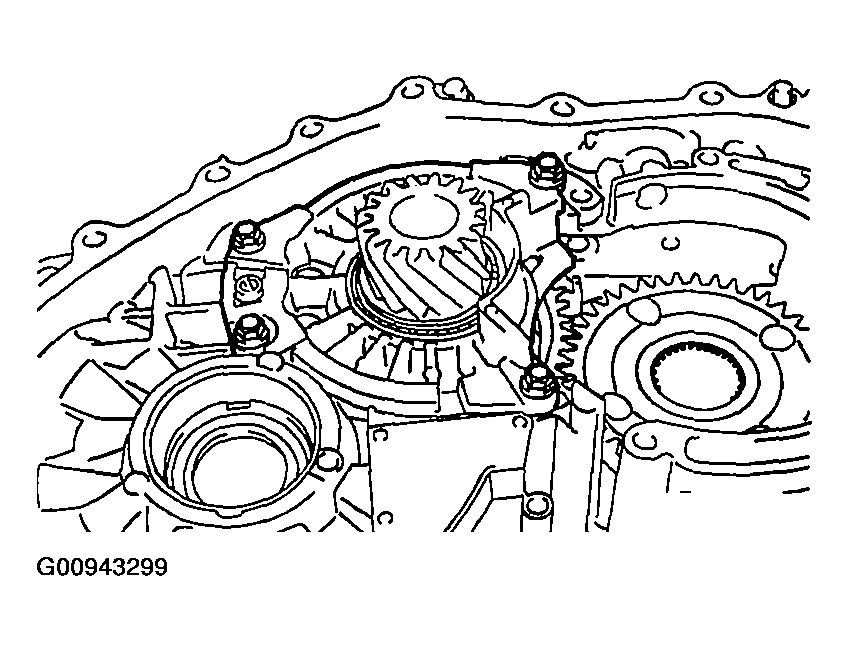

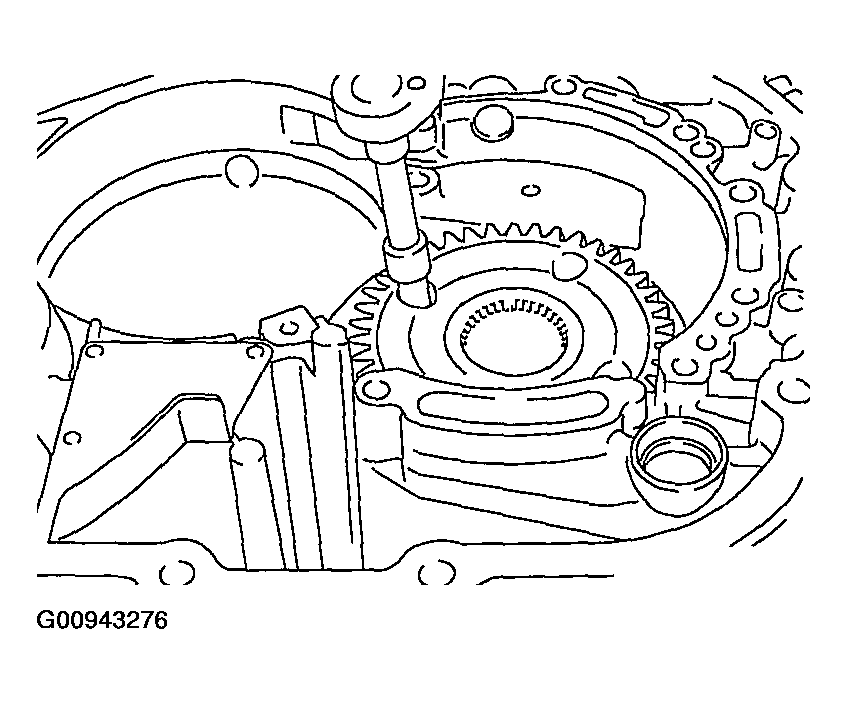

Tighten the mounting bolts of the transfer drive gear bearing to the specified torque.
F4A4B: seven mounting bolts

F4A5A: eight mounting bolts

Tightening torque:

34 +/- 2 N.m (25 +/- 1 ft-lb)

Fig 2: Tightening Mounting Bolts Of Transfer Drive Gear Bearing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

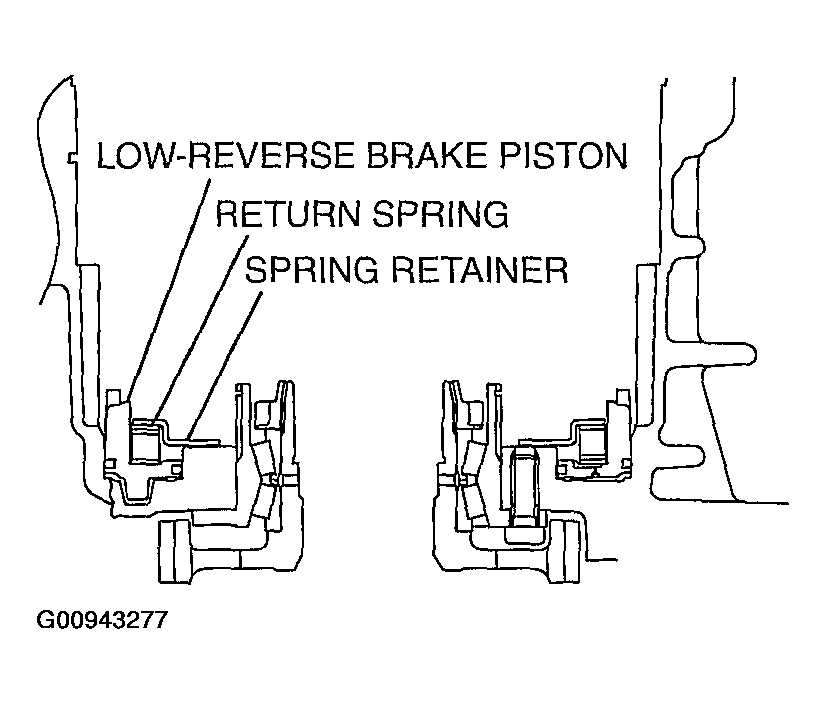

Install the low-reverse brake piston, return spring, and spring retainer into the transaxle case.

Fig 3: Installing Low-Reverse Brake Piston, Return Spring And Spring Retainer
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

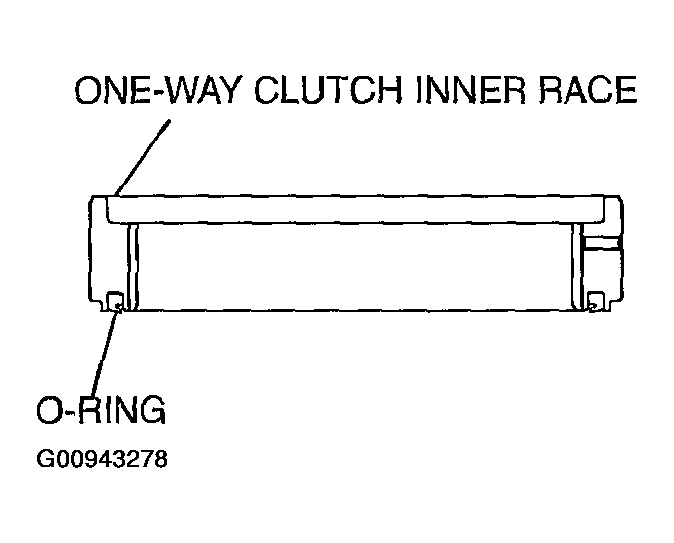

Fit a new O-ring into the groove of one-way clutch inner race.

Fig 4: Installing O-Ring Into Groove Of One-Way Clutch Inner Race
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

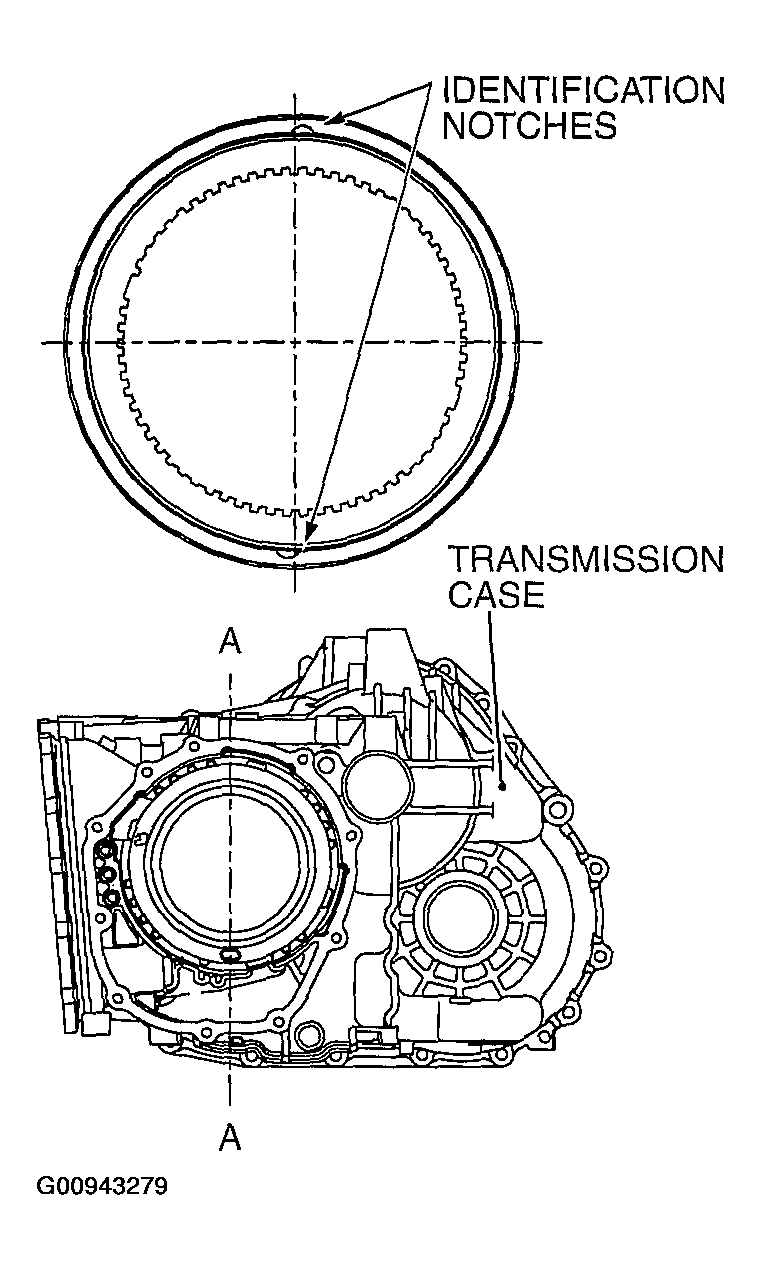

Check the placement of the identification notches in the one-way clutch inner race. Install the one-way clutch inner race to the transfer drive gear bearing so that the notches fall along the A - A line.

Fig 5: Checking Placement Of Identification Notches In One-Way Clutch Inner Race
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

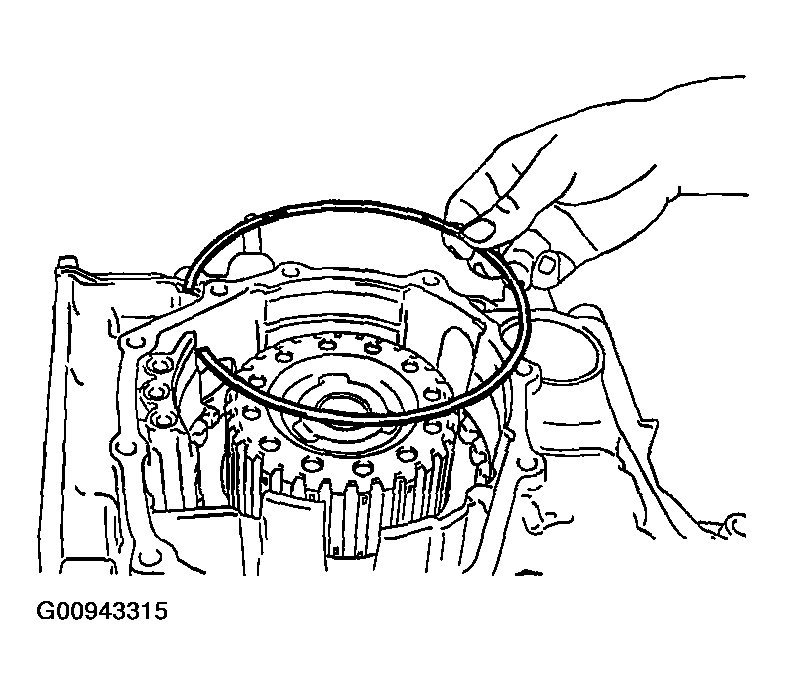

Put the snap ring on the inner race.

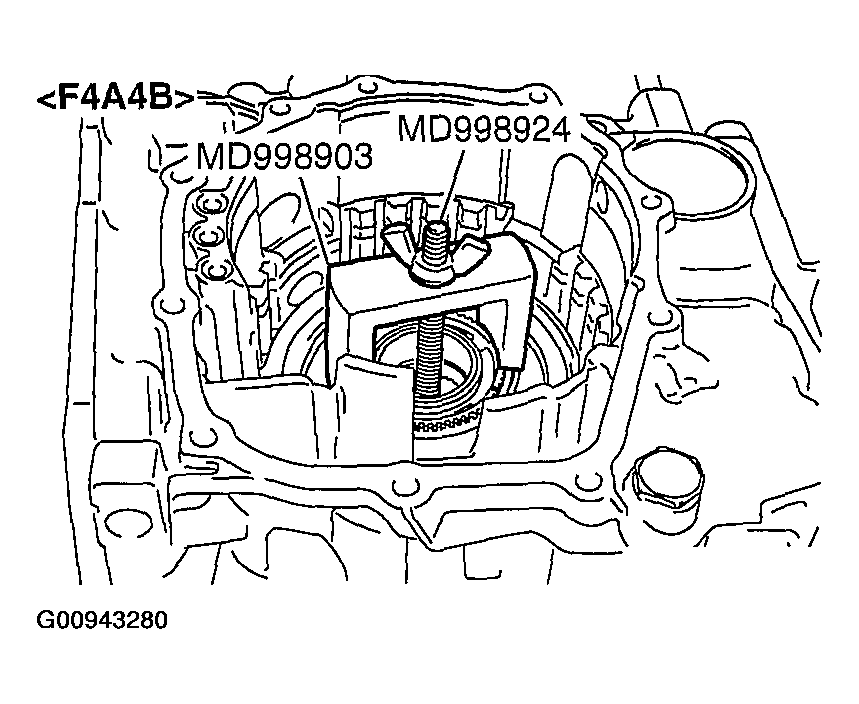

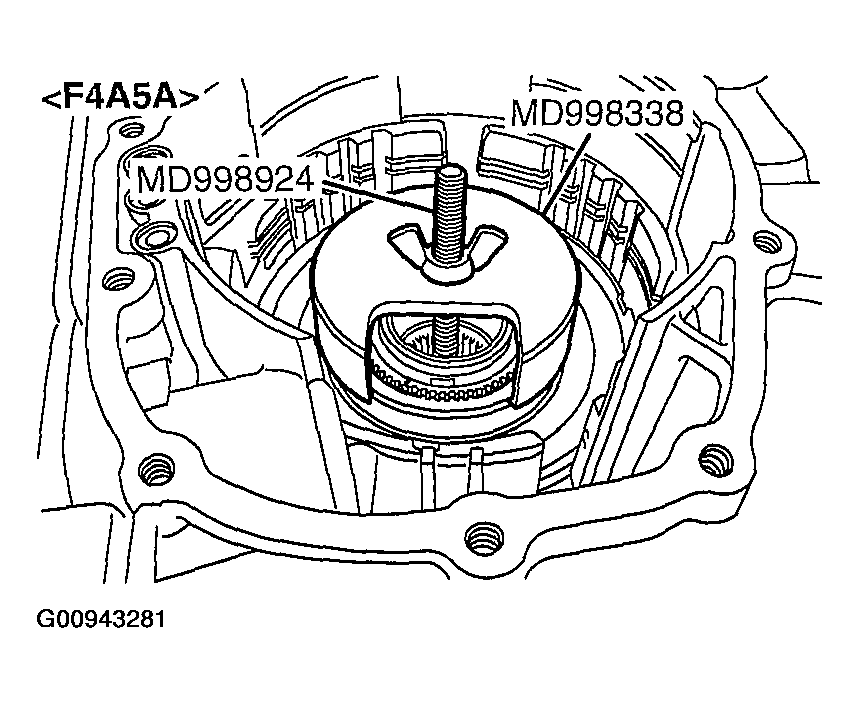

Set special tools MD998903 < F4A4B> or MD998338 < F4A5A> and MD998924 as shown, and then compress the one-way clutch inner race and install the snap ring.

Fig 6: Installing Snap Ring On Inner Race (F4A4B)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Installing Snap Ring On Inner Race (F4A5A)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the wave spring onto the low-reverse brake piston.

Fig 8: Installing Wave Spring Onto Low-Reverse Brake Piston
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

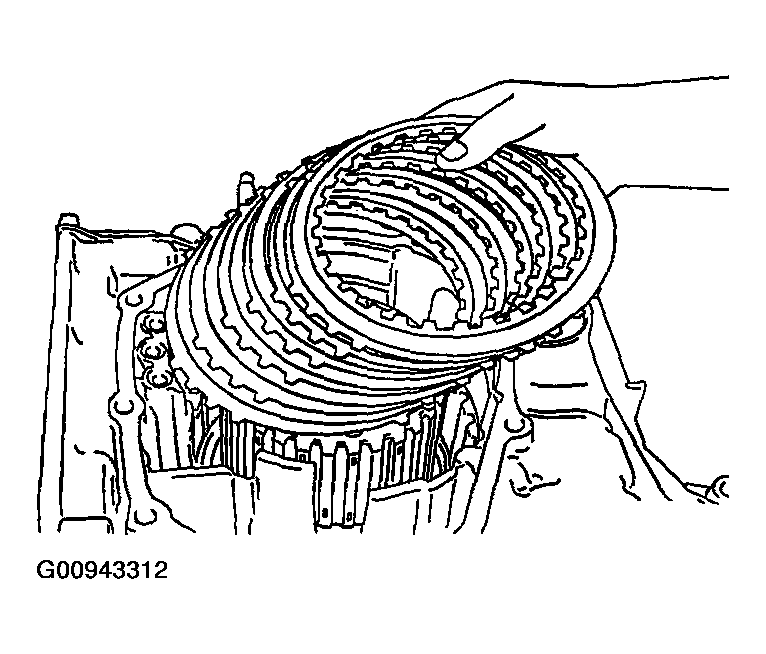

Install the brake discs (six pieces), brake plates (five pieces) and snap ring as shown in the Fig 9.
NOTE: Do not install the pressure plate at this time.
Install special tool MB991631 < F4A4B> or MB991632 < F4A5A> on the brake disc.
Install the reaction plate and the used snap ring.

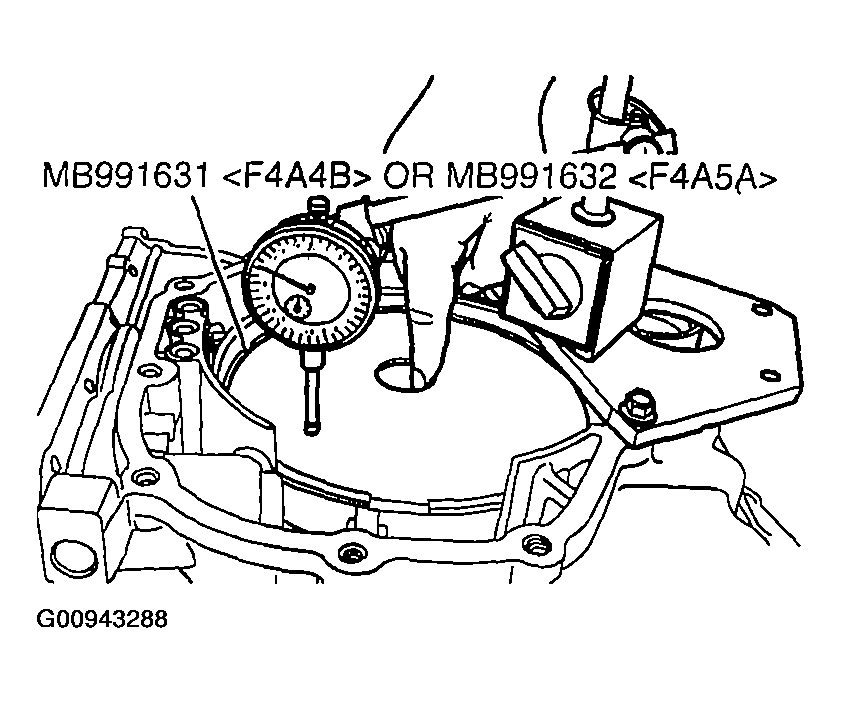

Move special tool MB991631 < F4A4B> or MB991632 < F4A5A> to measure the end play of reaction plate. Then replace the snap ring installed in step 11 to adjust the end play to standard value.
Standard value: 0 - 0.16 mm (0 - 0.0063 inch)

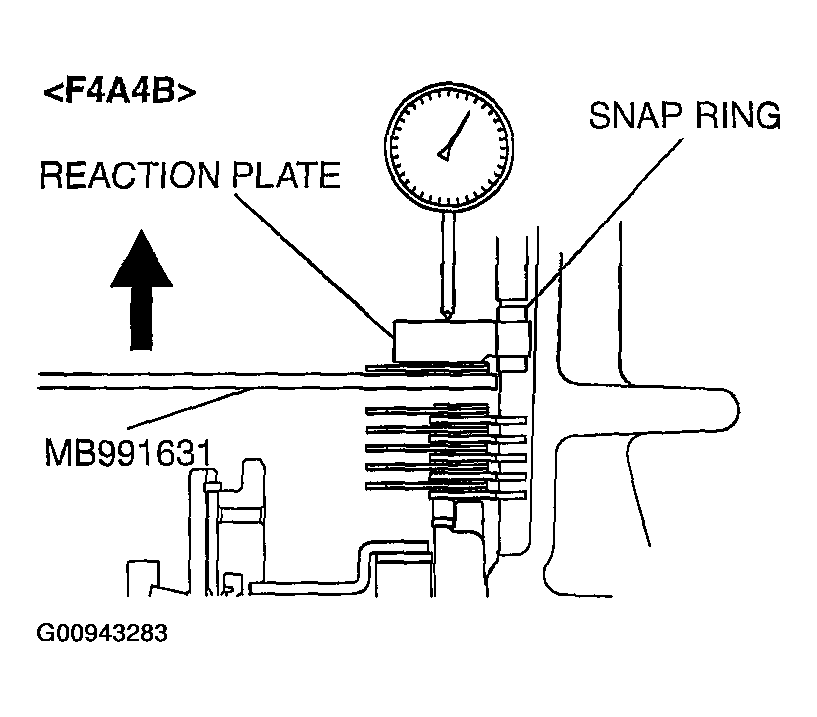

Fig 9: Measuring End Play Of Reaction Plate (F4A4B)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

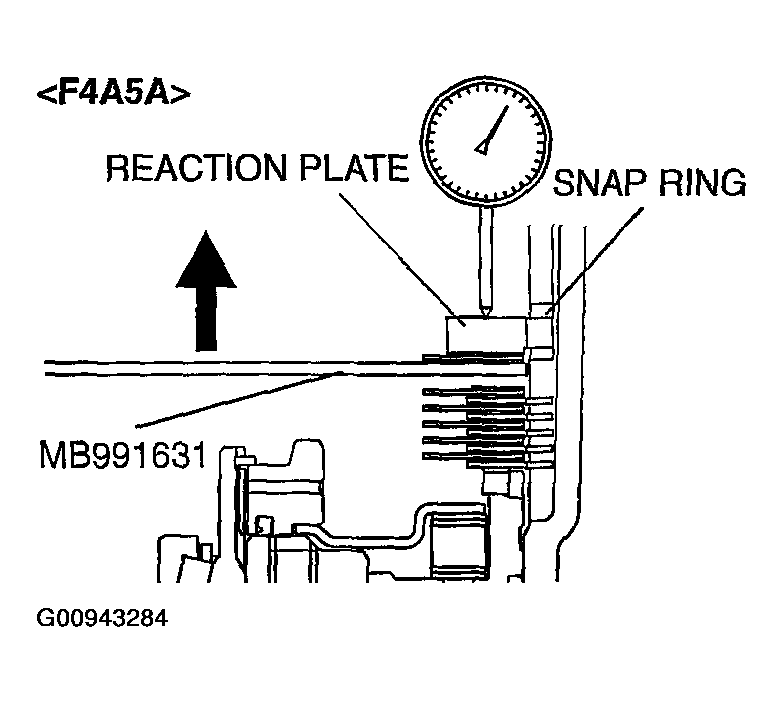

Fig 10: Measuring End Play Of Reaction Plate (F4A5A)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the brake discs and brake plates as shown in the Fig 11.
Number of second brake discs and plates

Fig 11: Placing Special Tool On Top Of Brake Disc In Place Of Pressure Plate (F4A4B)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 12: Placing Special Tool On Top Of Brake Disc In Place Of Pressure Plate (F4A5A)

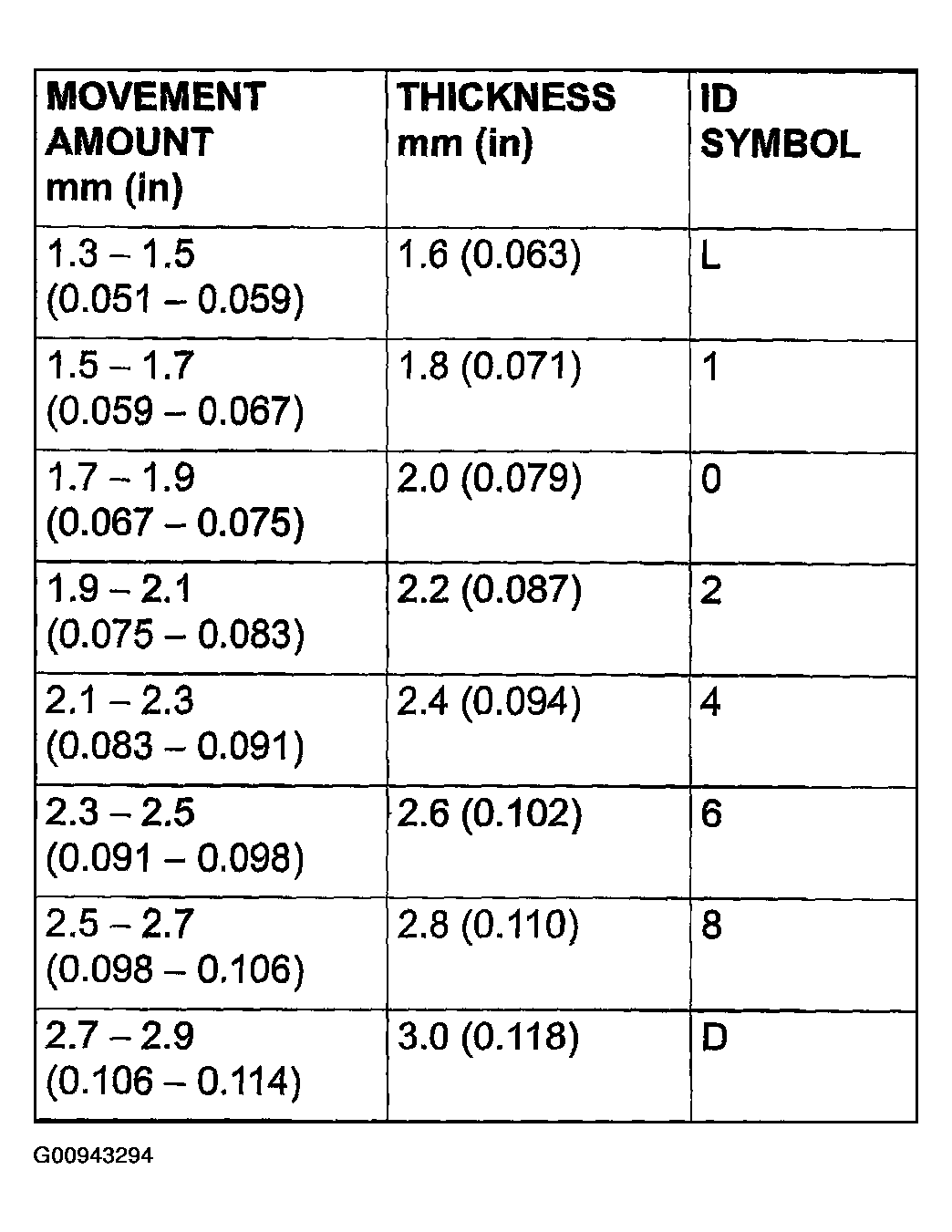

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Place special tool MB991631 < F4A4B> or MB991632 < F4A5A> on top of the brake disc in place of the pressure plate.

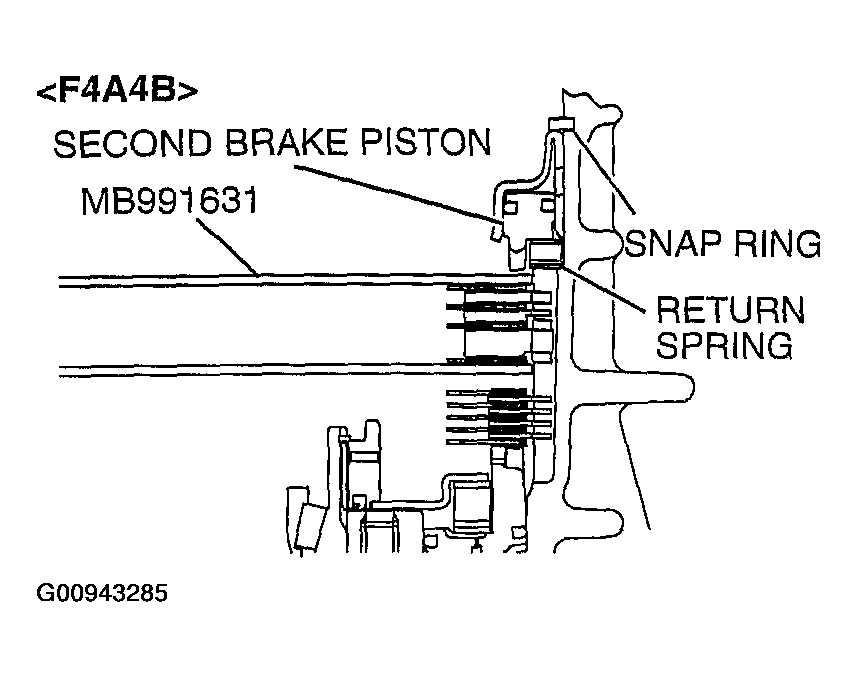

Install the return spring, second brake piston and snap ring.

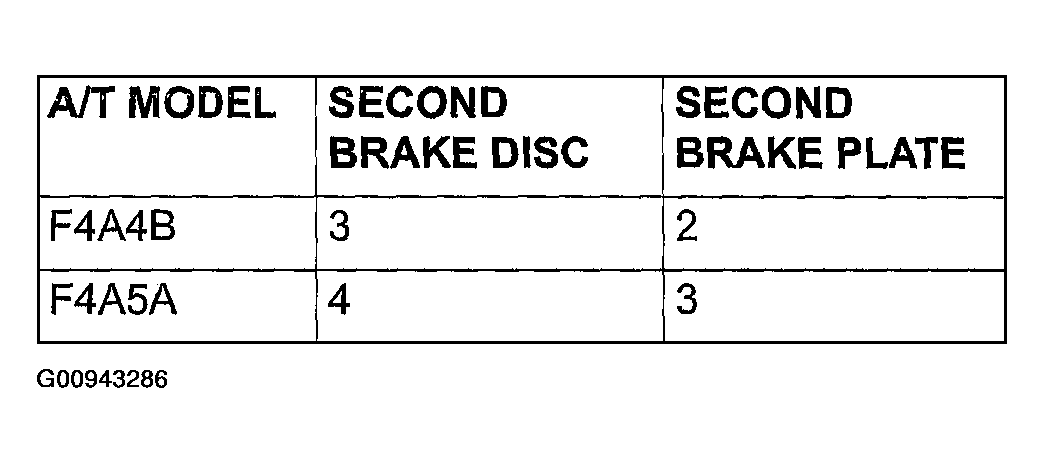

Fig 13: Second Brake Discs And Plates Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

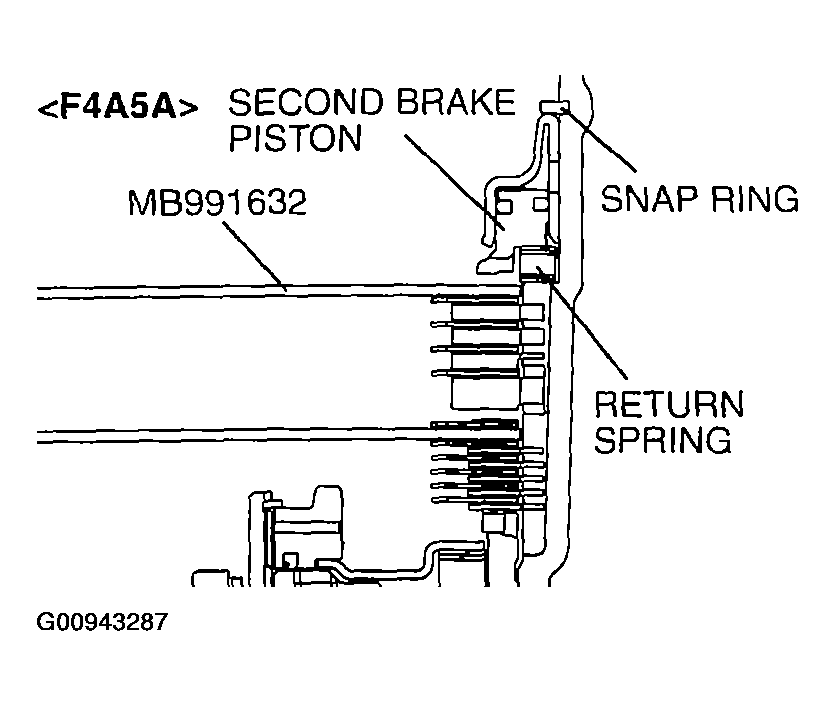

Fig 14: Moving Special Tool And Measuring Movement
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

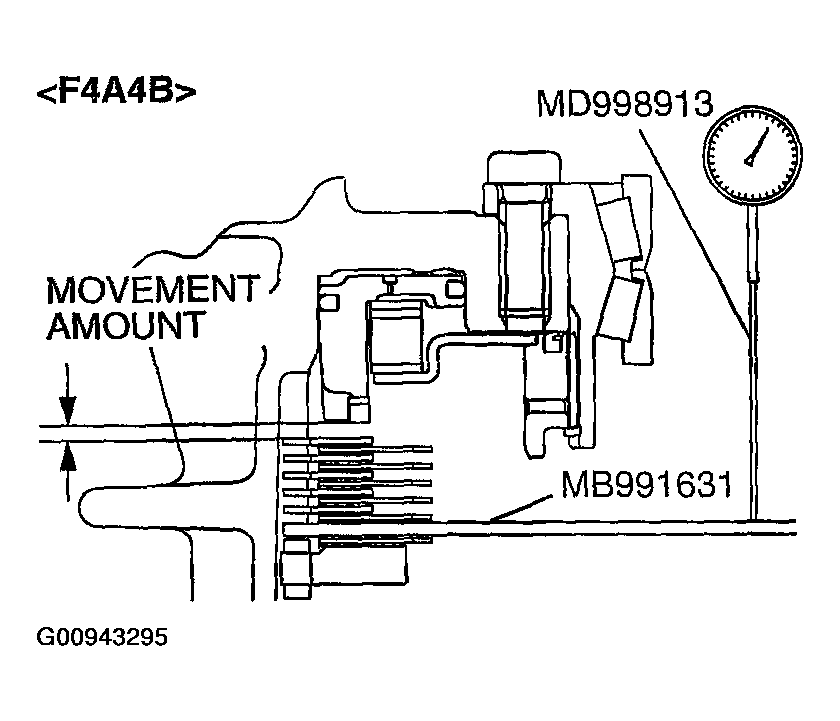

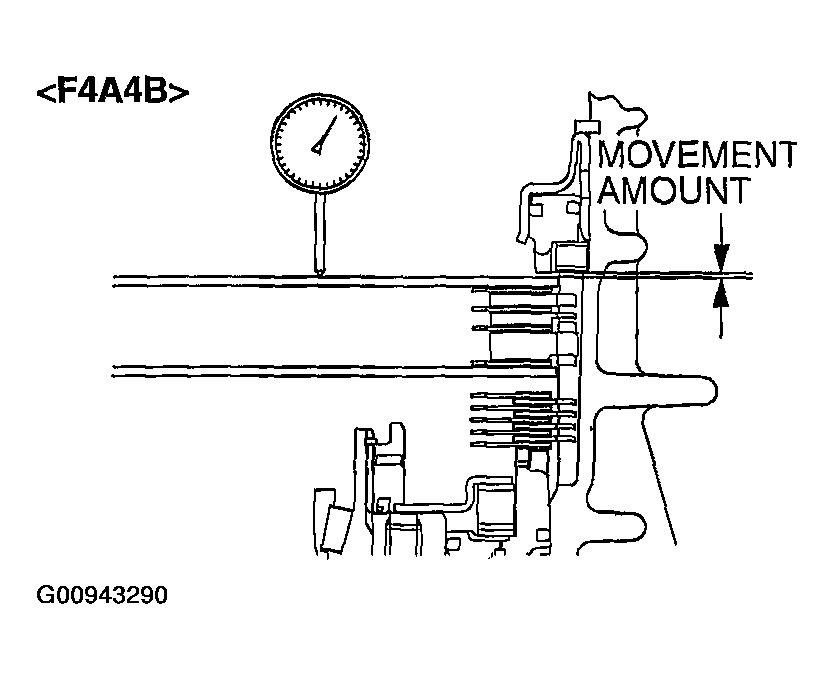

Fig 15: Measuring Movement Amount Thickness (F4A4B)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

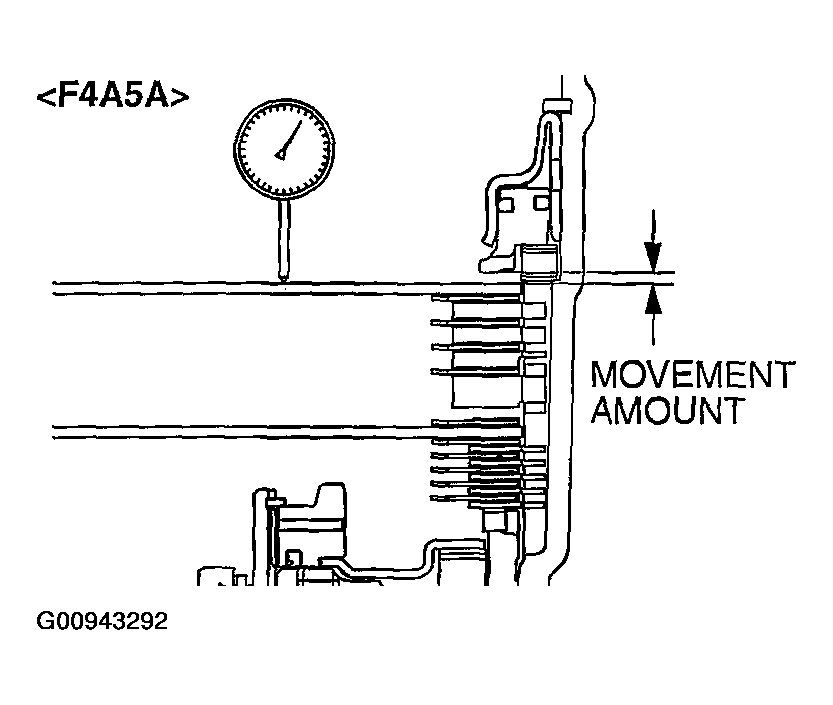

Fig 16: Measuring Movement Amount Thickness (F4A5A)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Move special tool MB991631 < F4A4B> or MB991632 < F4A5A> and measure its movement.
Standard value of end play (Reference):

0.79 - 1.25 mm (0.0311 - 0.0492 inch) < F4A4B>

1.09 - 1.55 mm (0.0429 - 0.0610 inch) < F4A5A>

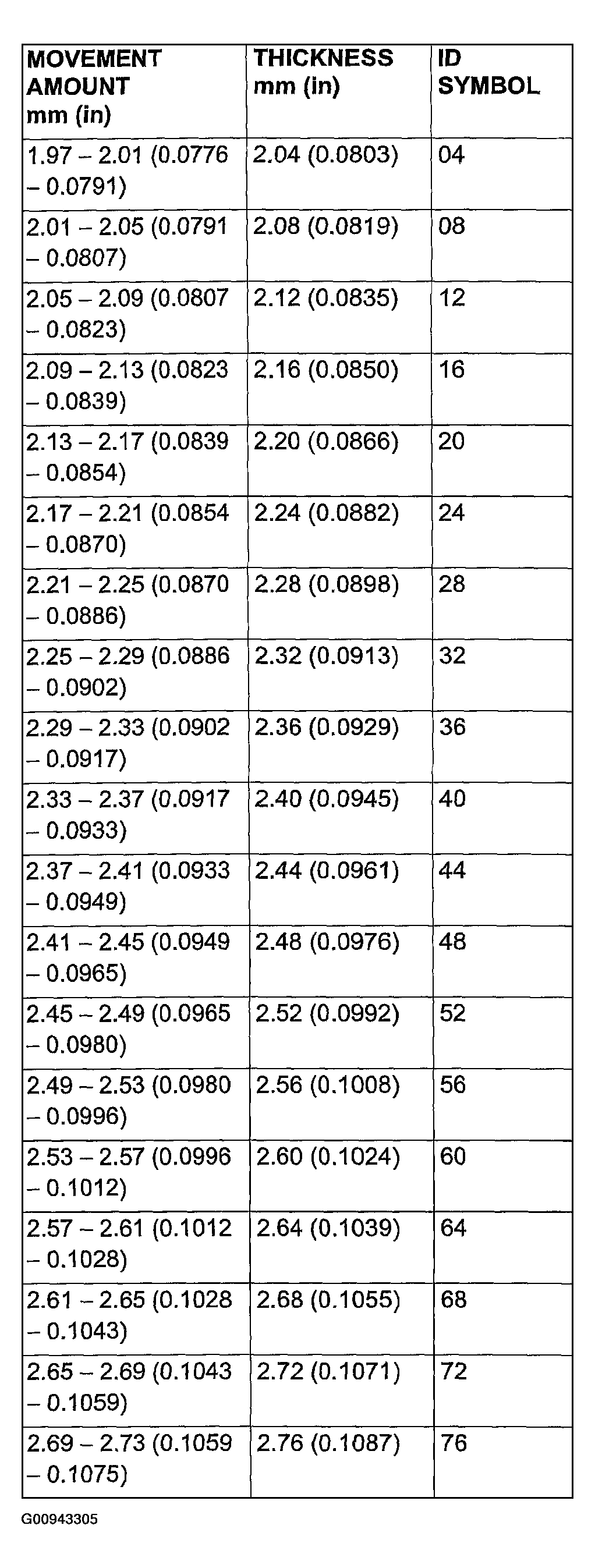

Select a pressure plate whose thickness corresponds to the measured amount of movement from the following Fig 17.

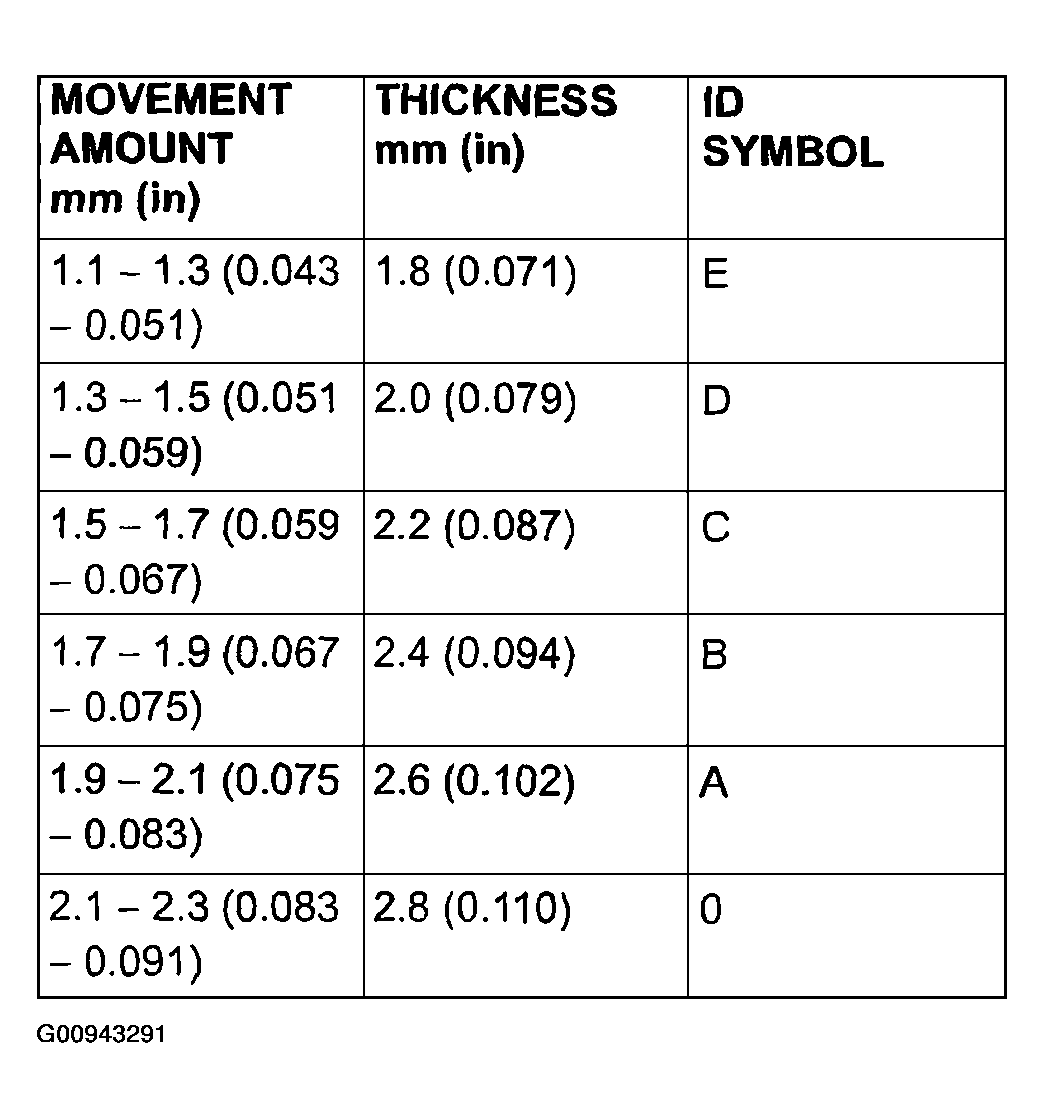

PRESSURE PLATE FOR SECOND BRAKE < F4A4B>

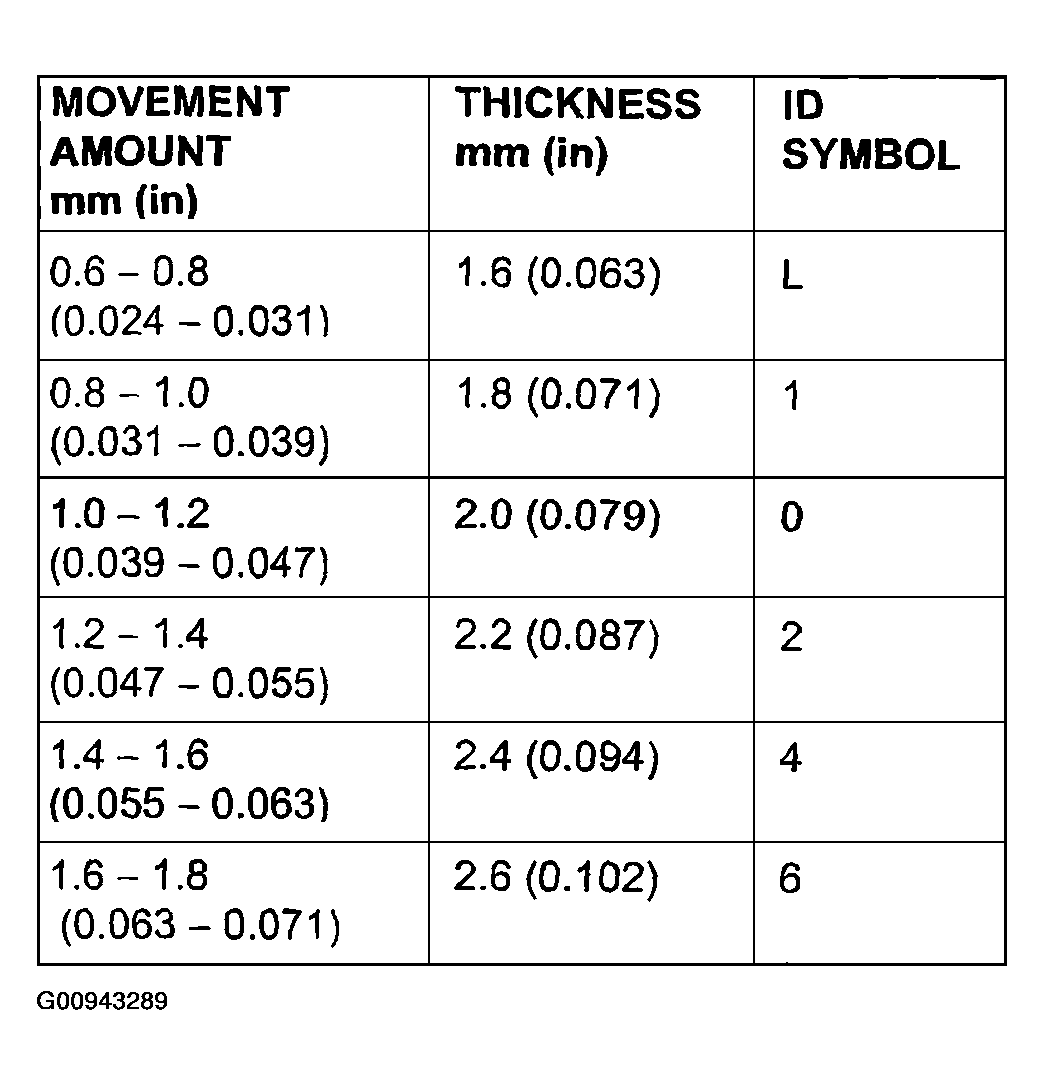

Fig 17: Movement Amount And Thickness Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

PRESSURE PLATE FOR SECOND BRAKE < F4A5A>

Fig 18: Movement Amount And Thickness Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Turn the transaxle over so that the installation surface of the torque converter housing is facing up.

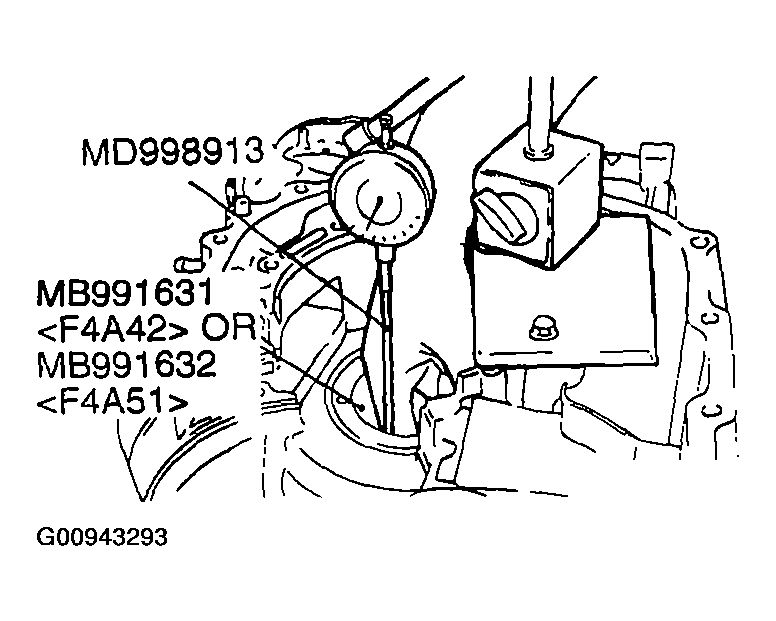

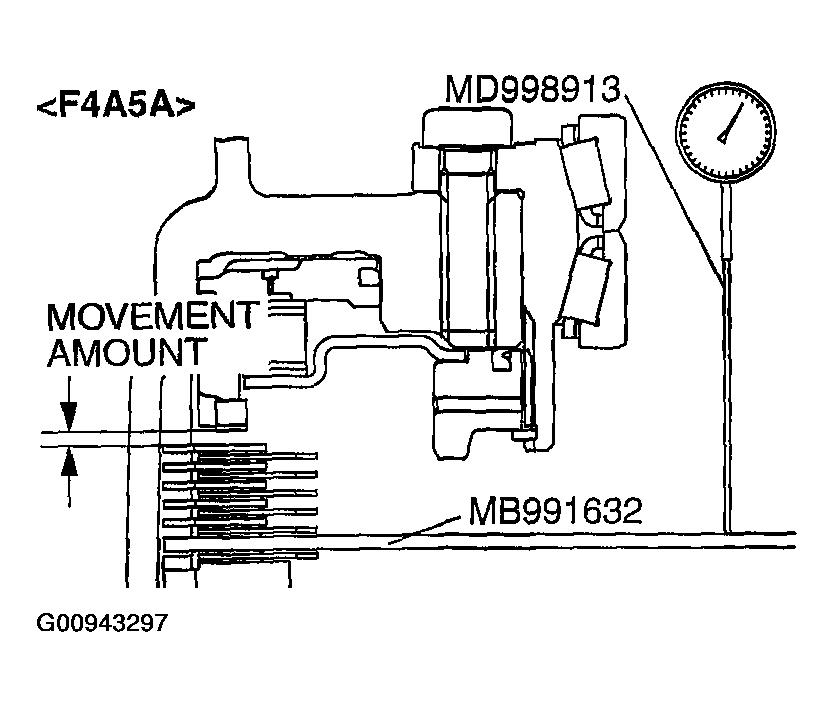

Install special tool MD998913 in a dial gauge, and then move special tool MB991631 < F4A4B> or MB991632 < F4A5A> and measure its movement.

Fig 19: Moving Special Tool And Measuring Movement
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Standard value of end play (Reference): 1.65 - 2.11 mm (0.0649 - 0.0831 inch)

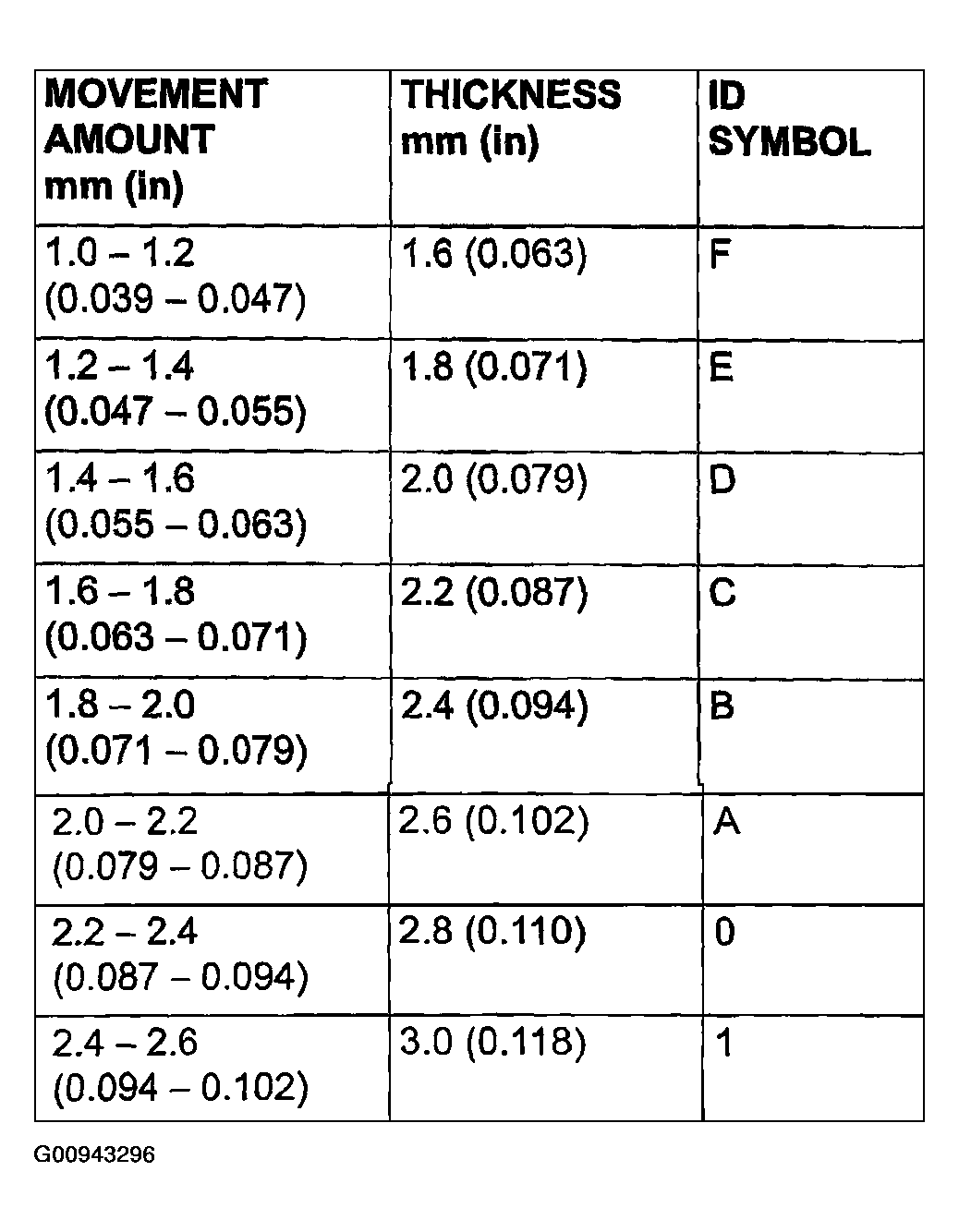

Select a pressure plate whose thickness corresponds to the measured amount of movement from the Fig 20.
PRESSURE PLATE FOR LOW-REVERSE BRAKE < F4A4B>

Fig 20: Movement Amount And Pressure Plate Thickness Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 21: Measuring Movement And Amount And Pressure Plate Thickness (F4A4B)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

PRESSURE PLATE FOR LOW-REVERSE BRAKE < F4A5A>

Fig 22: Movement Amount And Pressure Plate Thickness Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 23: Measuring Movement And Amount And Pressure Plate Thickness (F4A5A)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If necessary, take the measurements in steps 9 to 18 after replacing the pressure plate, brake plate and brake disc.
Remove all parts and special tools that were installed to take the measurements in steps 9 to 18. Remove and separate the pressure plate and snap ring chosen in steps 12, 16 and 18.
Install the snap ring into the groove of transaxle case output shaft bore.

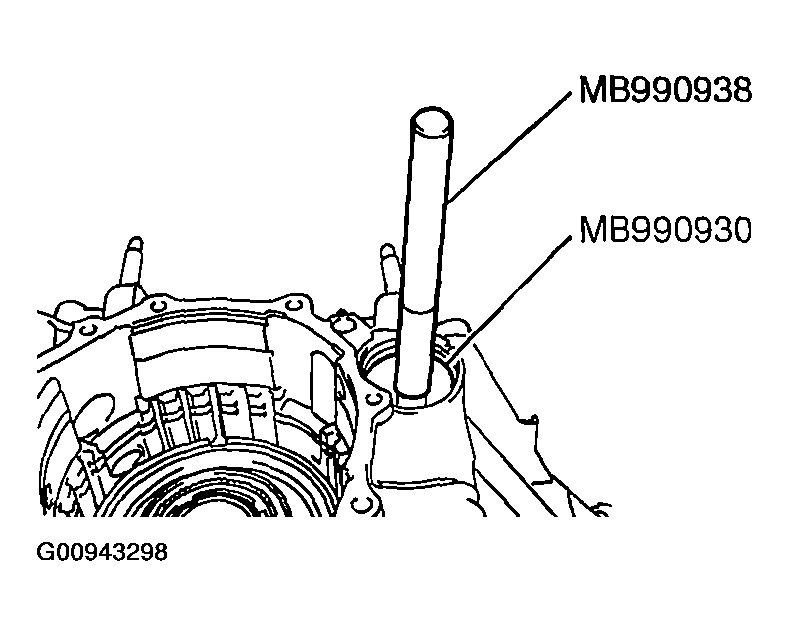

Use special tools MB990930 and MB990938 to tap the output shaft bearing outer race in the transaxle case.

Fig 24: Using Special Tools To Tap Output Shaft Bearing Outer Race In Transaxle Case
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Do not reuse the bolt, as it has had sealant applied.
Tighten the mounting bolts of the output shaft bearing retainer to the specified torque.
Tightening torque:

29 +/- 2 N.m (21 +/- 1 ft-lb) < F4A4B>

54 +/- 5 N.m (40 +/- 4 ft-lb) < F4A5A>

Fig 25: Tightening Mounting Bolts Of Output Shaft Bearing Retainer
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

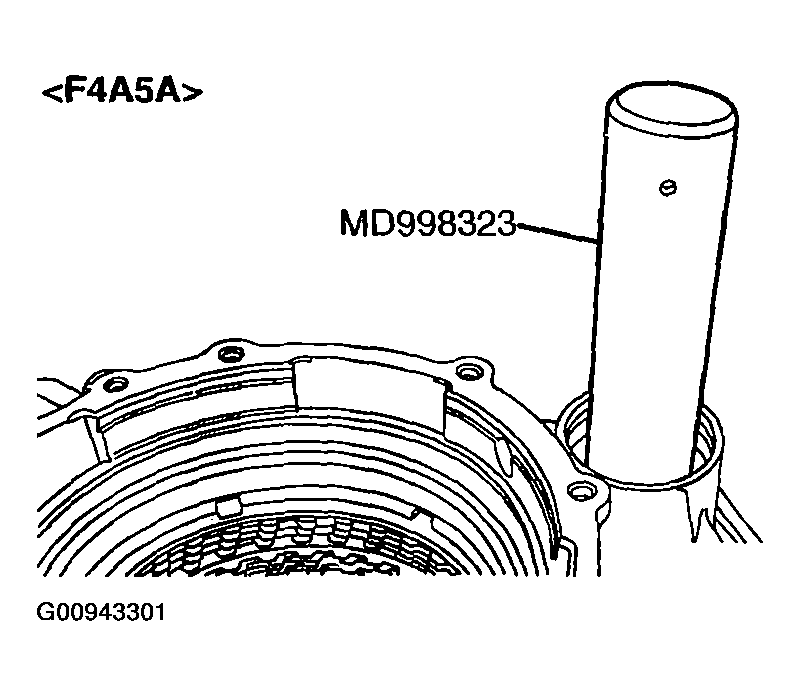

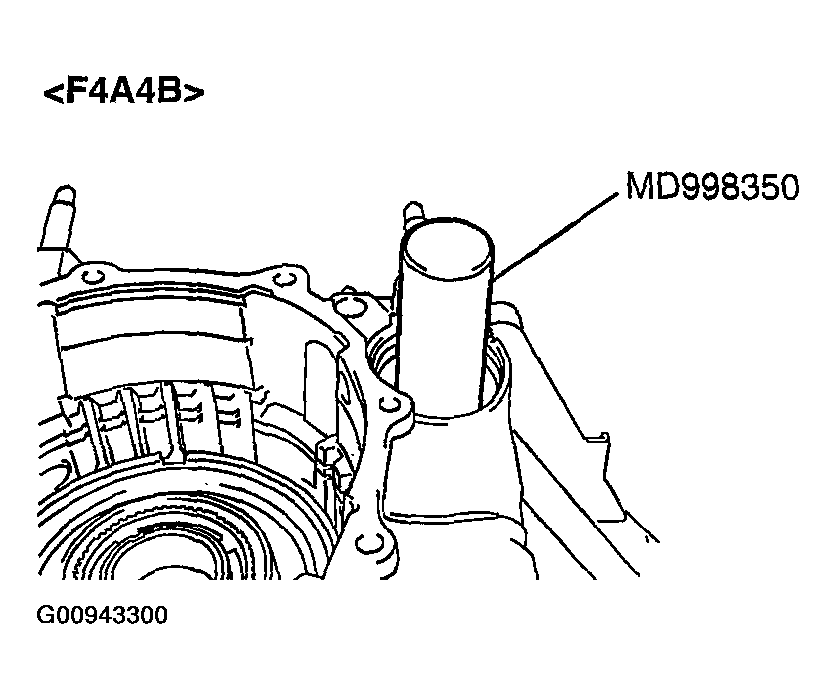

Use special tool MD998350 < F4A4B> or MB998323 < F4A5A> to install the collar and taper roller bearing on the output shaft.

Fig 26: Installing Collar And Taper Roller Bearing On Output Shaft (F4A4B)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 27: Installing Collar And Taper Roller Bearing On Output Shaft (F4A5A)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

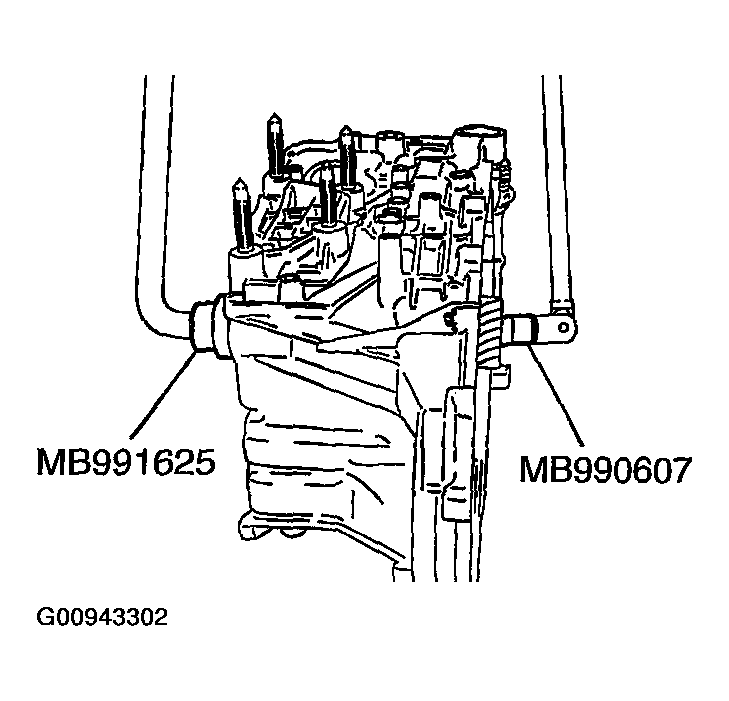

Apply ATF to a new jam nut, and use special tools MB990607 and MB991625 to tighten the jam nut to the specified torque. Then turn back one turn, and tighten to the specified torque again.
Tightening torque: 170 +/- 10 N.m (125 +/- 7 ft-lb)

NOTE: The jam nut is reverse threaded.

Fig 28: Applying ATF To New Jam Nut And Using Special Tools To Tightening Jam Nut
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

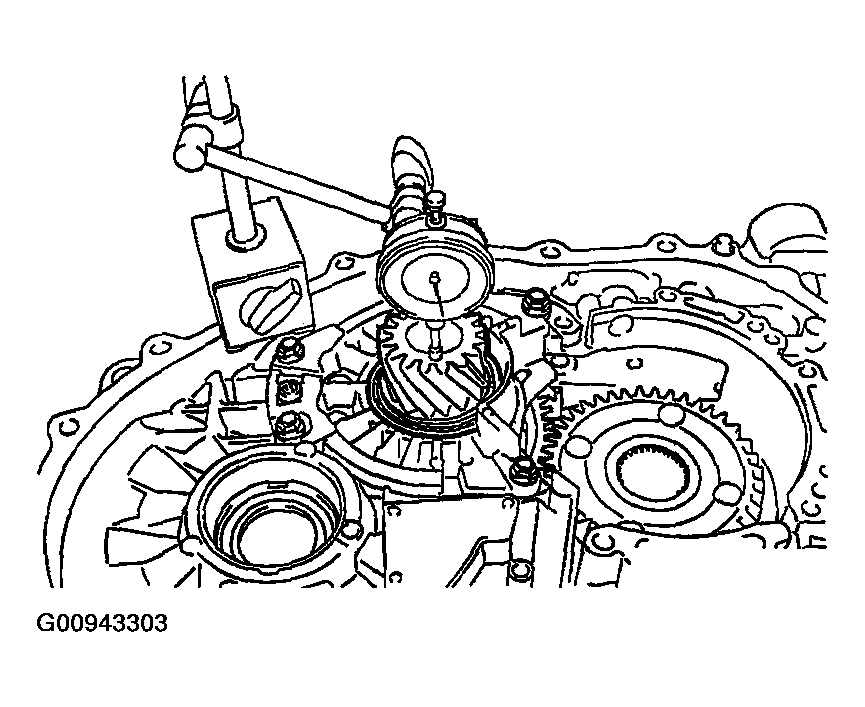

Fig 29: Moving Output Shaft To Measuring End Play
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Move the output shaft to measure the end play and record the measurement value.
Remove the parts that were installed in steps 22 to 25.
Select a spacer whose thickness corresponds to the measured amount of movement from the following Fig 30.
SPACER FOR OUTPUT SHAFT

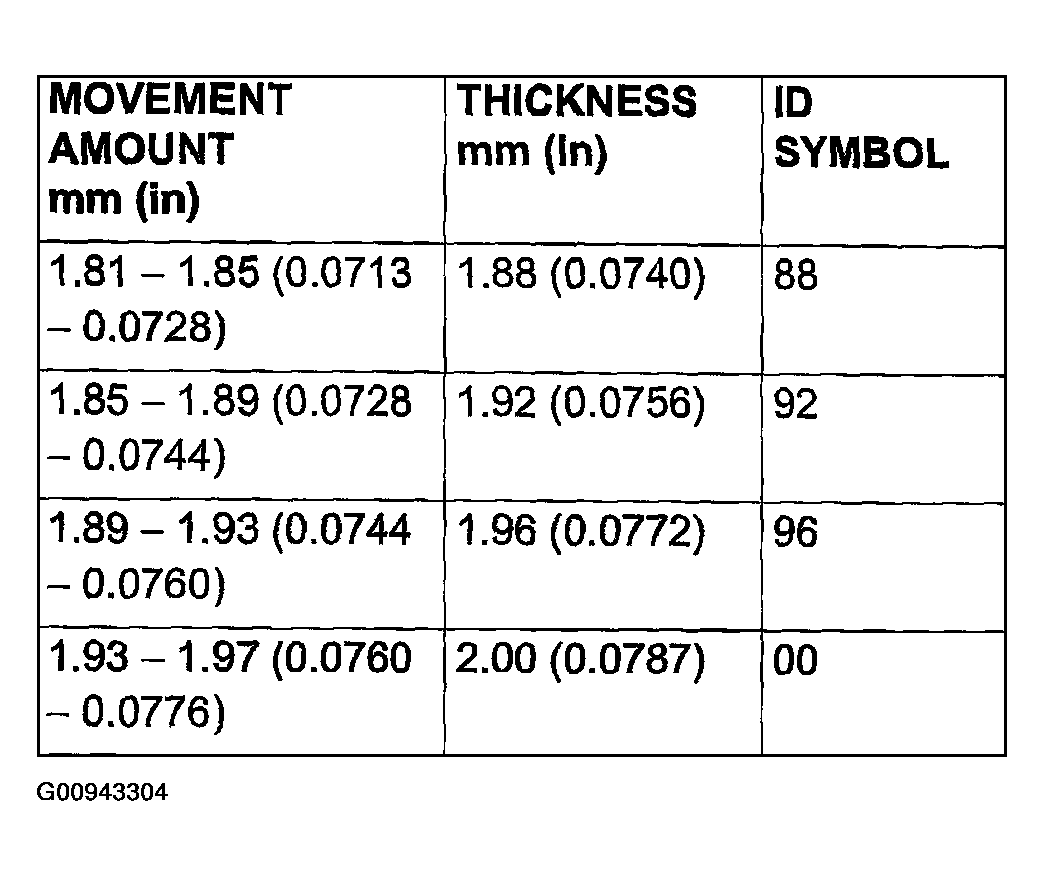

Fig 30: Spacer For Output Shaft Thickness Chart (1 of 2Spacer For Output Shaft Thickness Chart)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 31: Spacer For Output Shaft Thickness Chart (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Repeat steps 22 to 25 again, installing each part and using the appropriate adjustment spacer determined in step 28.

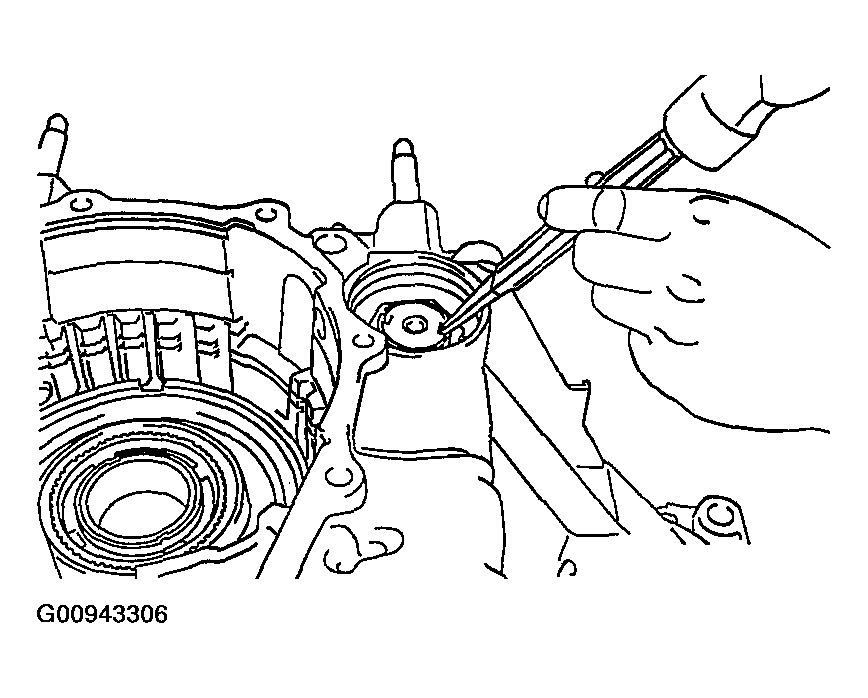

Stake the jam nut with a punch (two places).

Fig 32: Staking Jam Nut With A Punch (Two Places)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

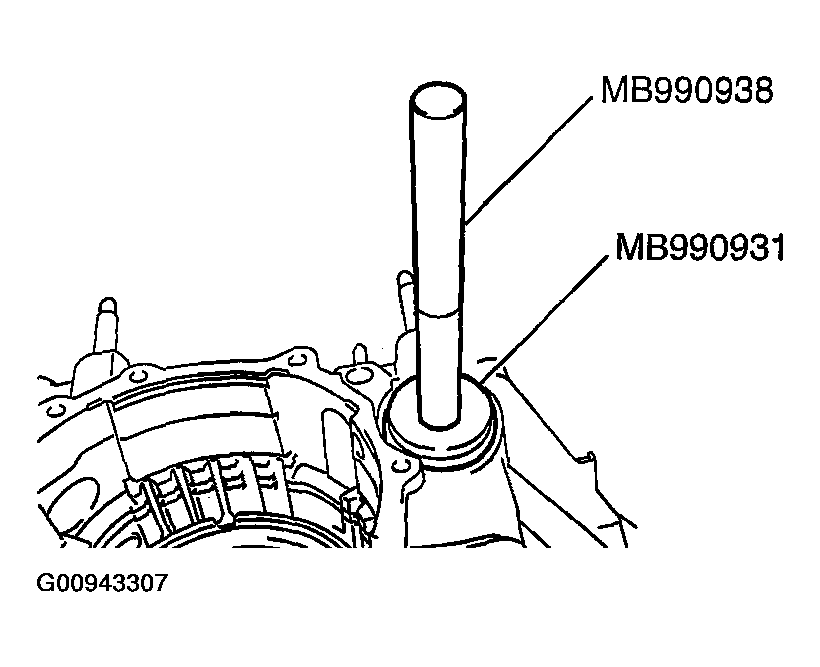

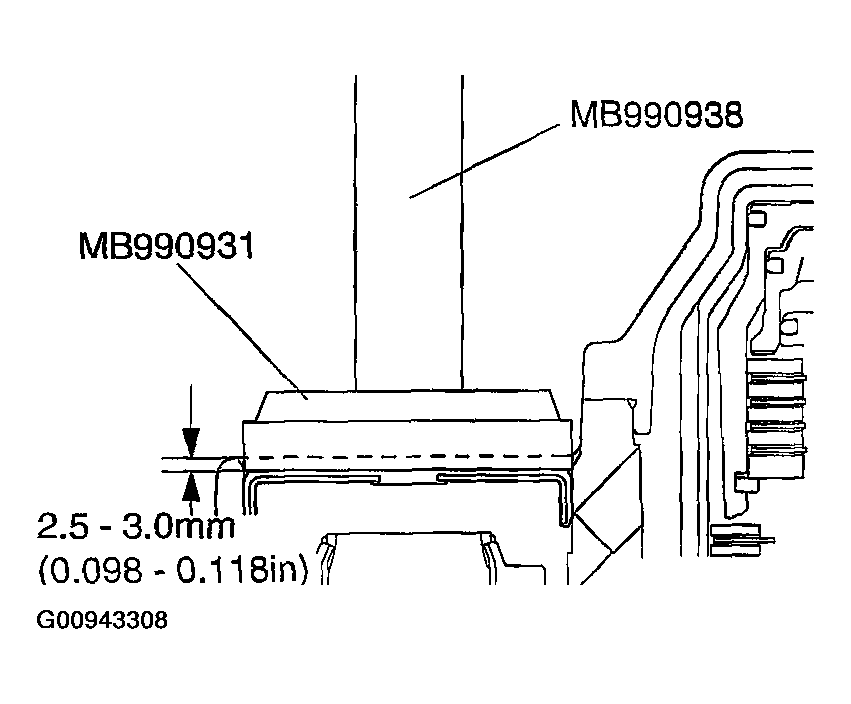

Use special tools MB990931 and MB990938 to install the cap as shown in the illustration.

Fig 33: Installing Cap Using Special Tools (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 34: Installing Cap Using Special Tools (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

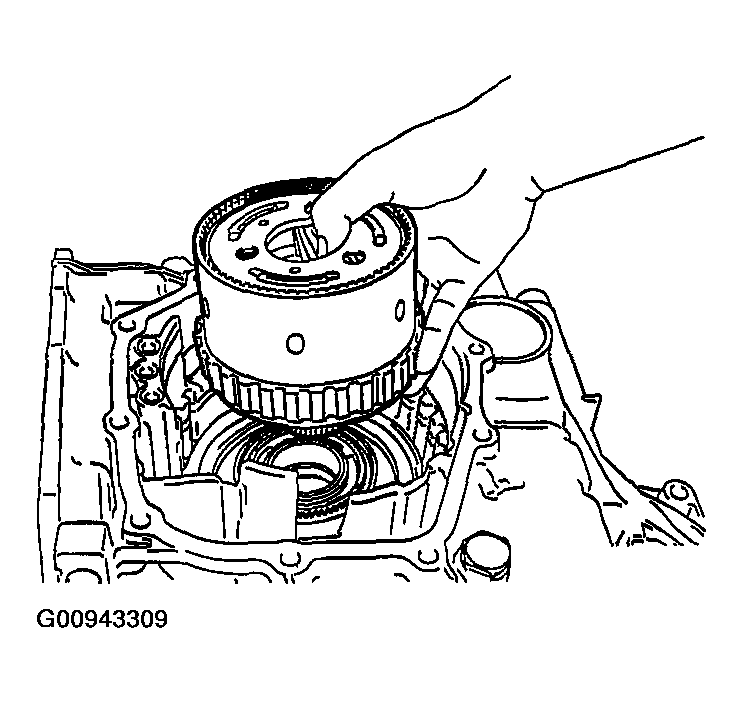

Install the planetary carrier assembly.

Fig 35: Installing Planetary Carrier Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the planetary reverse sun gear.

Fig 36: Installing Planetary Reverse Sun Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the wave spring on the low-reverse brake piston.

Fig 37: Installing Wave Spring On Low-Reverse Brake Piston
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the pressure plate that was selected in step 19. Next, install brake discs (six pieces) and brake plates (five pieces), one on top of the other.

Fig 38: Installing Pressure Plate And Brake Discs And Brake Plates
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

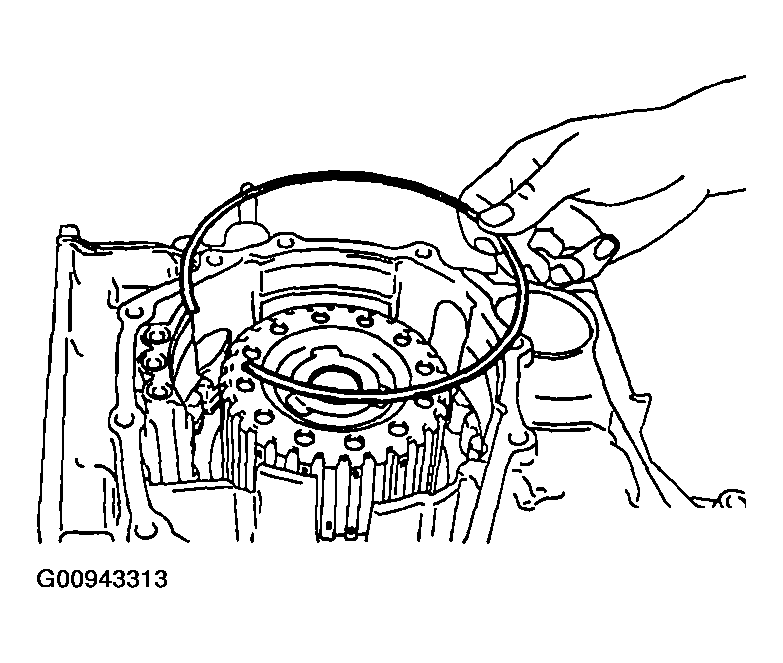

Install the snap ring.

Fig 39: Installing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

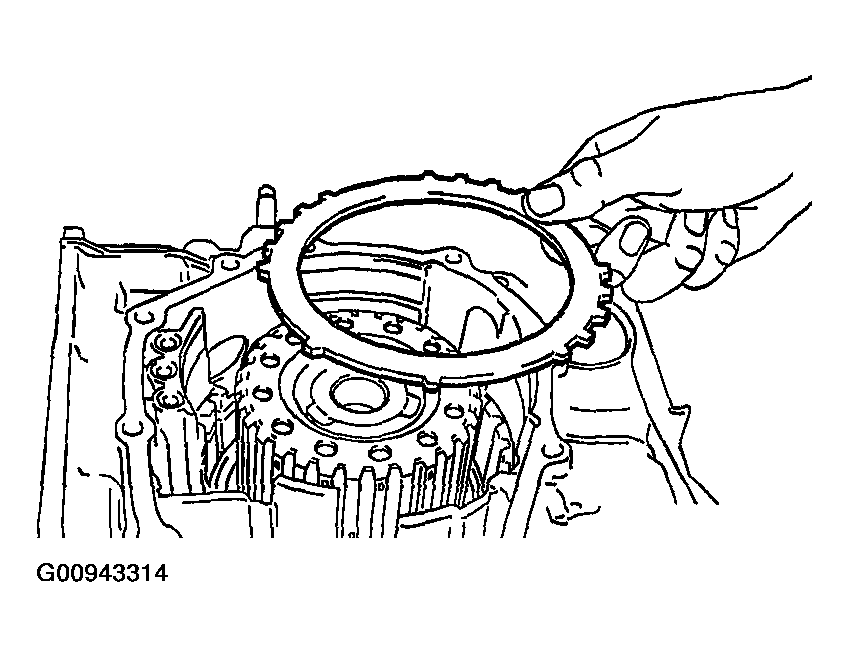

Install the reaction plate.

Fig 40: Installing Reaction Plate
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the snap ring that was selected in step 12.

Fig 41: Installing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

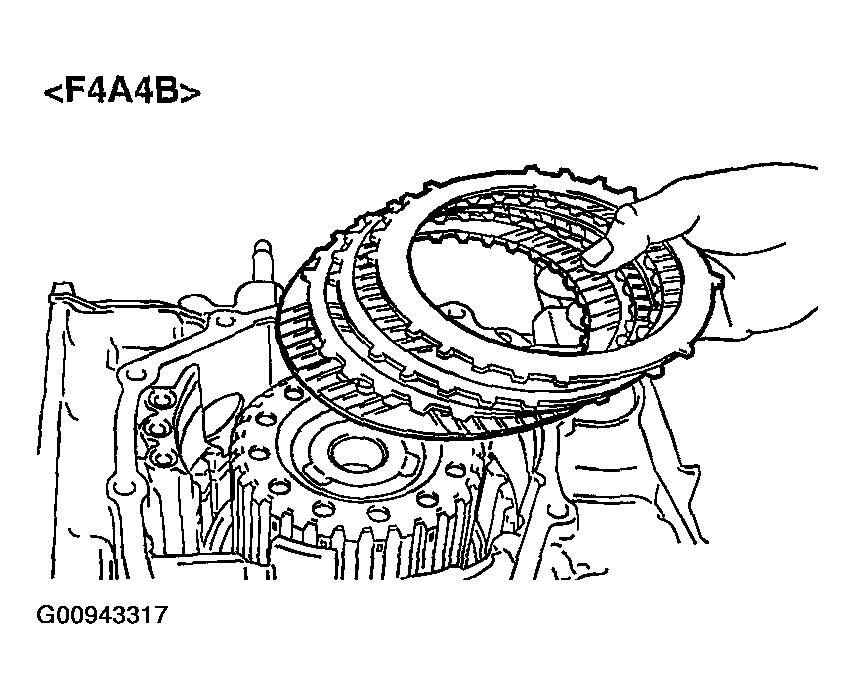

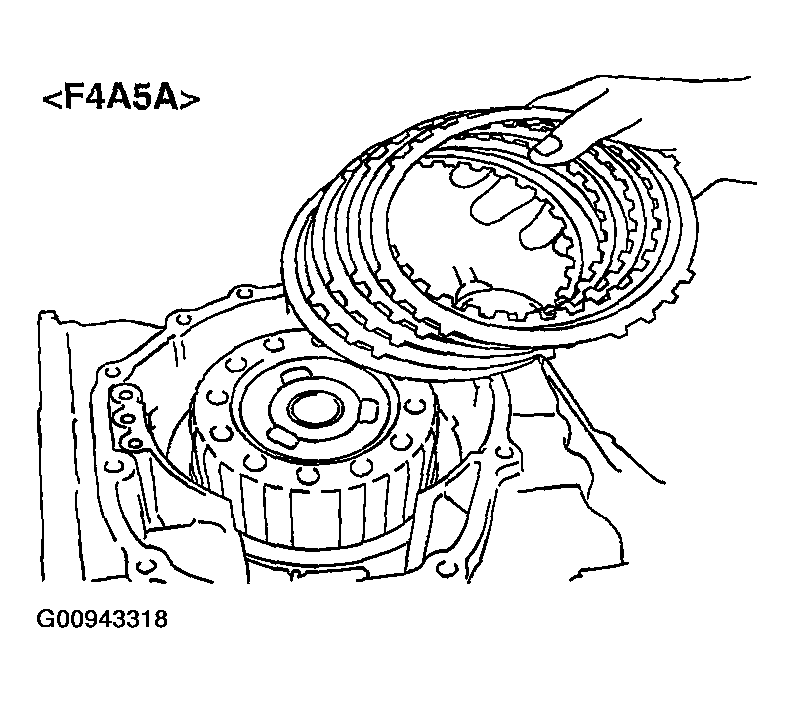

Install second brake discs and second brake plates, one on top of the other. Next, install the pressure plate that was selected in step 17.

Fig 42: Installing Second Brake Discs And Second Brake Plates (F4A4B)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

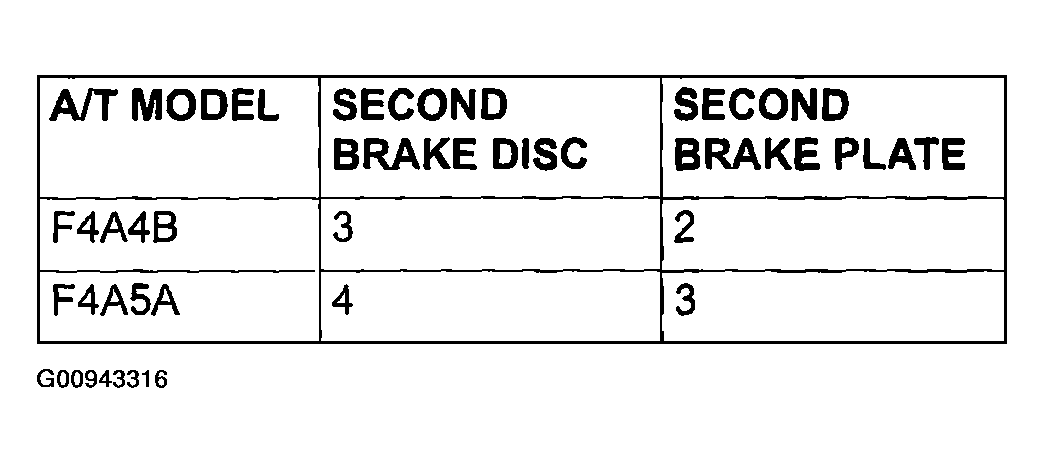

Number of second brake discs and plates:

Fig 43: Second Brake Discs And Plates Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 44: Installing Second Brake Discs And Second Brake Plates (F4A5A)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

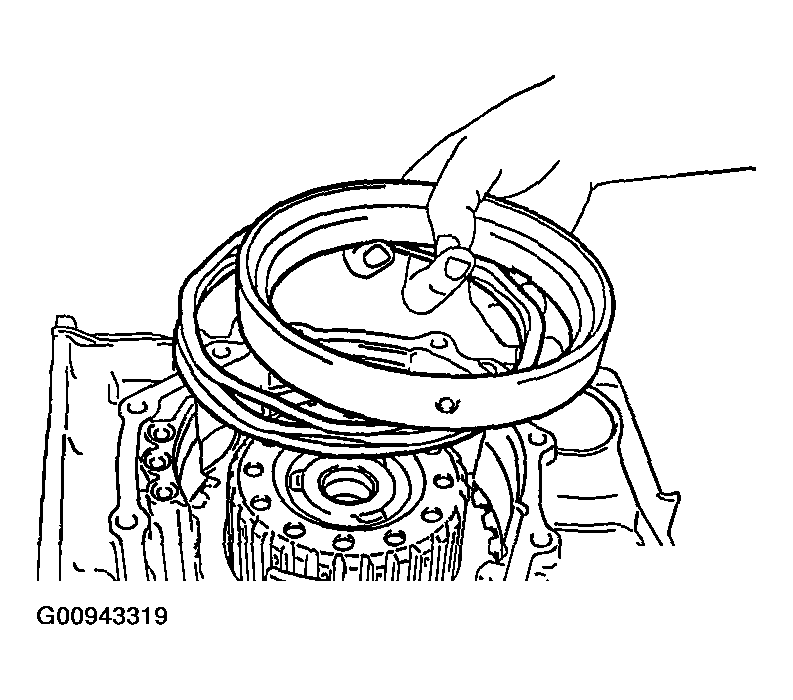

Install the return spring and second brake piston.

Fig 45: Installing Return Spring And Second Brake Piston
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

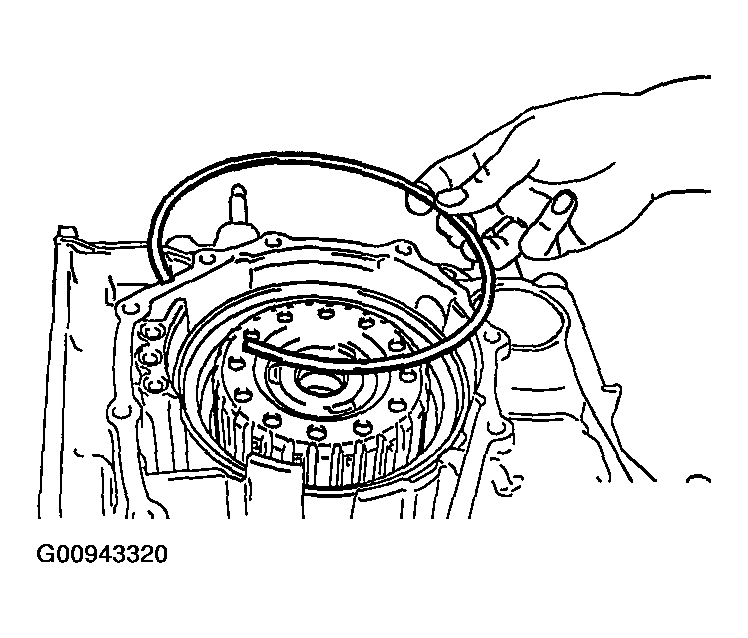

Install the snap ring.

Fig 46: Installing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

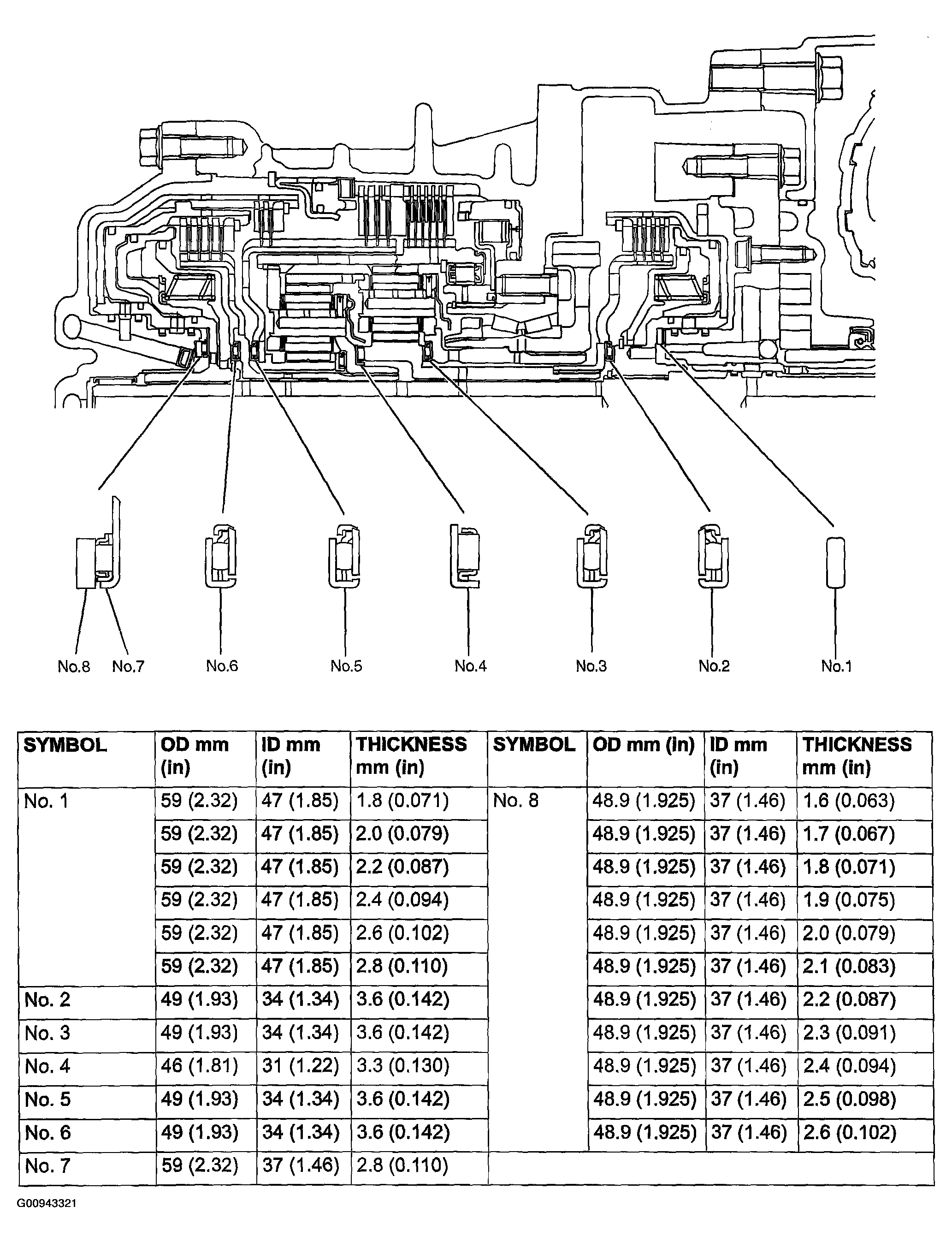

IDENTIFICATION OF THRUST BEARING, THRUST RACES, AND THRUST WASHERS

Fig 47: Identifying Thrust Bearing, Thrust Races, And Thrust Washers
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

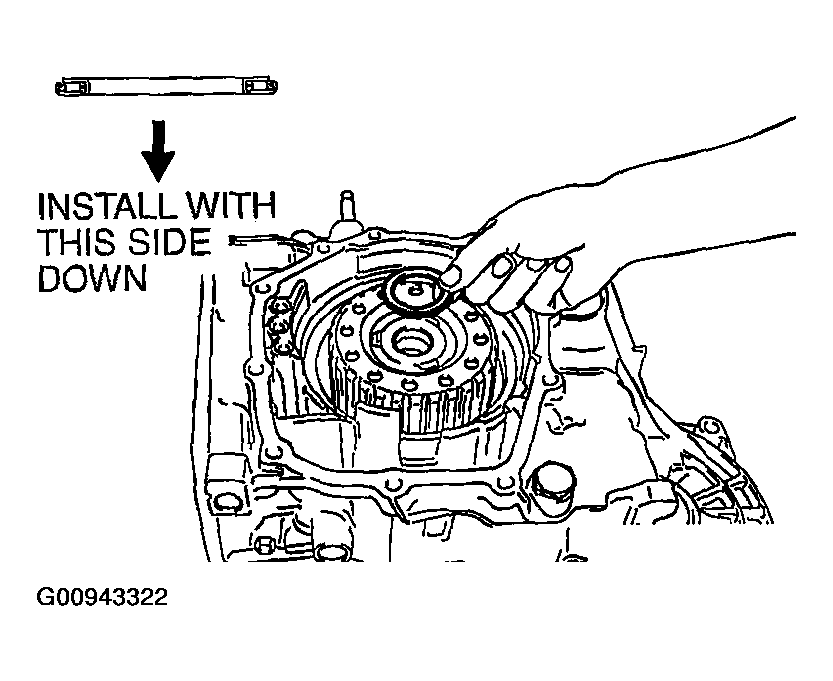

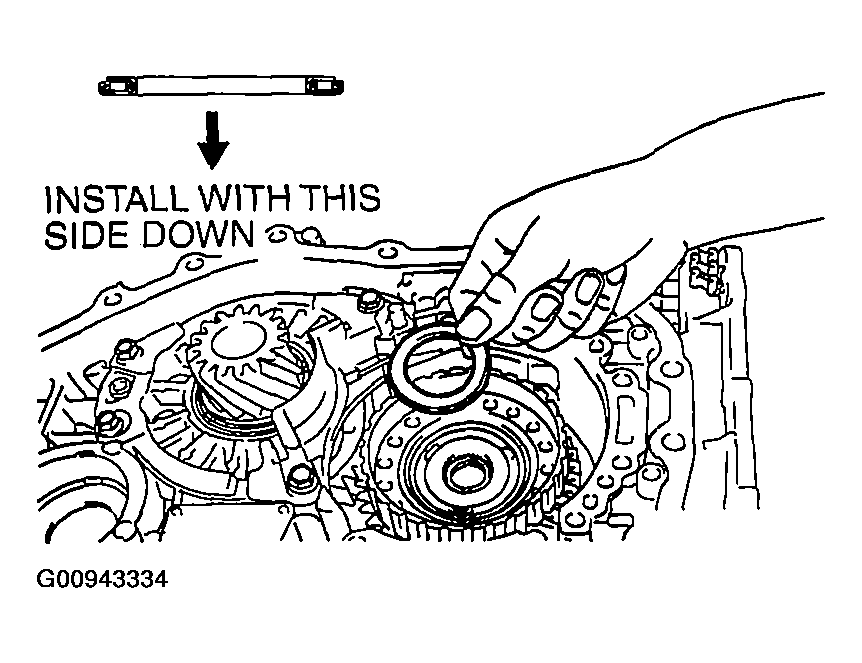

CAUTION: Be sure to install the thrust bearing in the correct direction as shown.
Check the installation direction of the thrust bearing number 5, and install it on the hub of the planetary reverse sun gear.

Fig 48: Installing Thrust Bearing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Use care to install the thrust bearing in the proper direction.

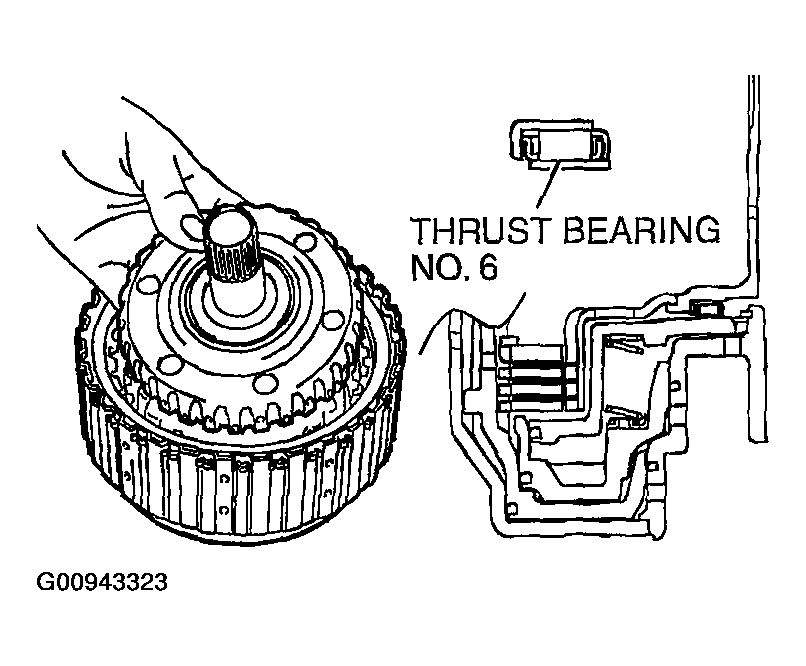

Attach thrust bearing number 6 to the inside of the overdrive clutch hub using petroleum jelly (Vaseline). Then install the assembly in the reverse and overdrive clutch.

Fig 49: Attaching Thrust Bearing To Inside Of Overdrive Clutch Hub
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

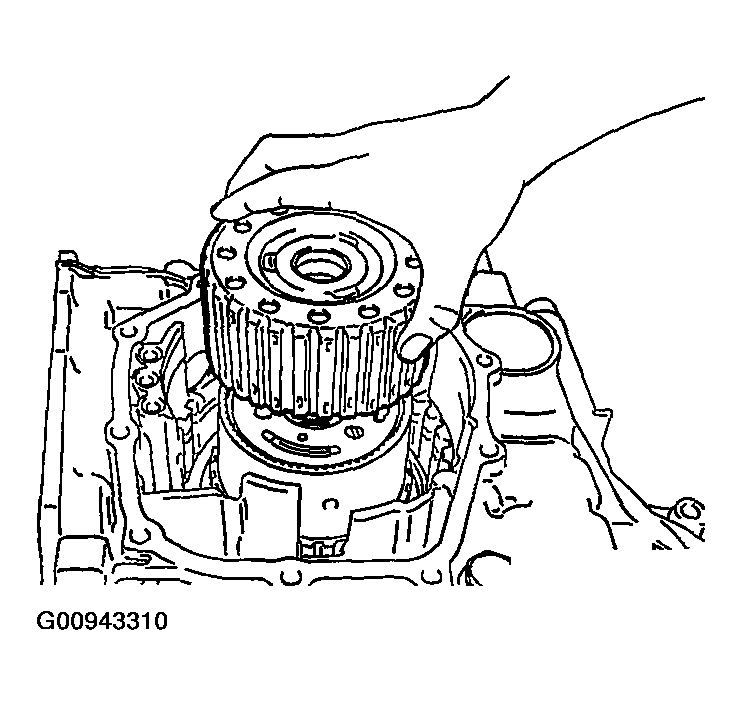

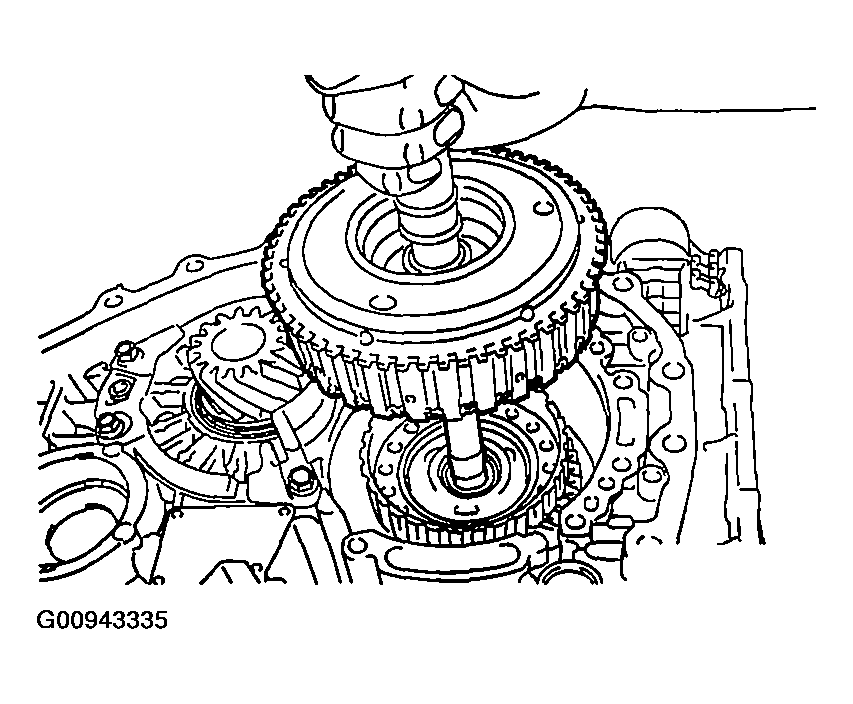

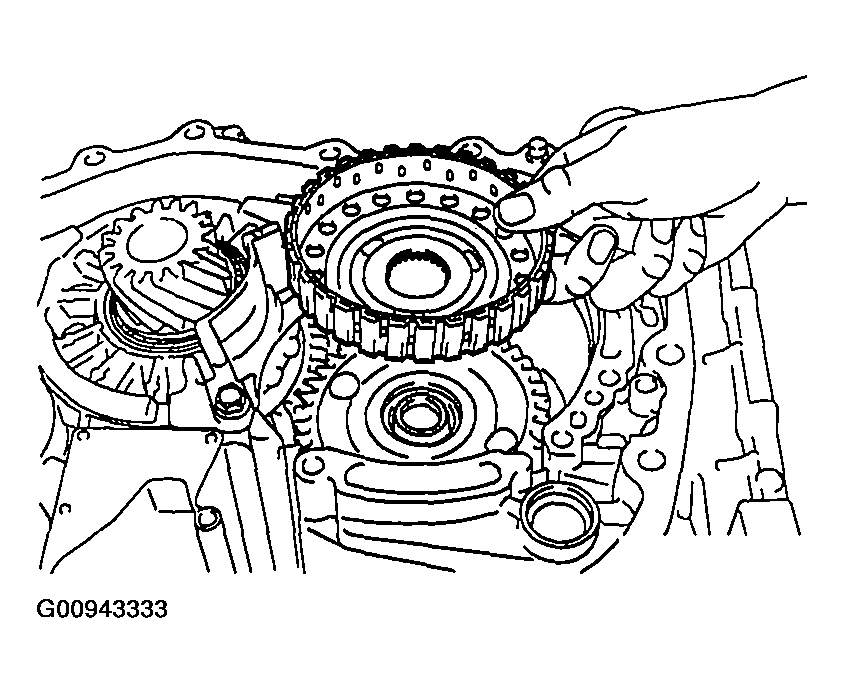

Install the reverse and overdrive clutch.
CAUTION: Be sure to install the thrust bearing in the correct direction as shown.

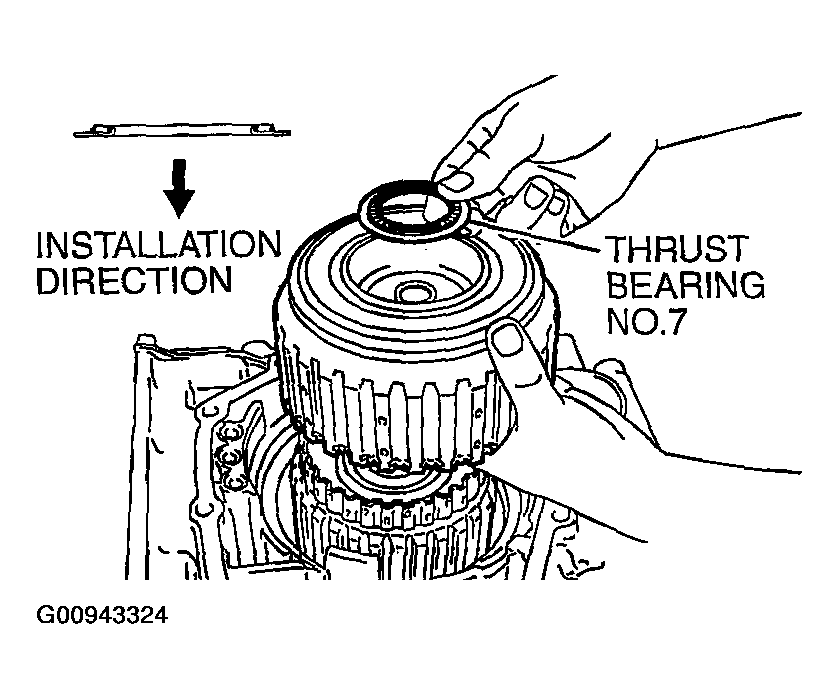

Check the installation direction of thrust bearing number 7, and install it on the reverse clutch retainer.

Fig 50: Installing Thrust Bearing Number 7
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

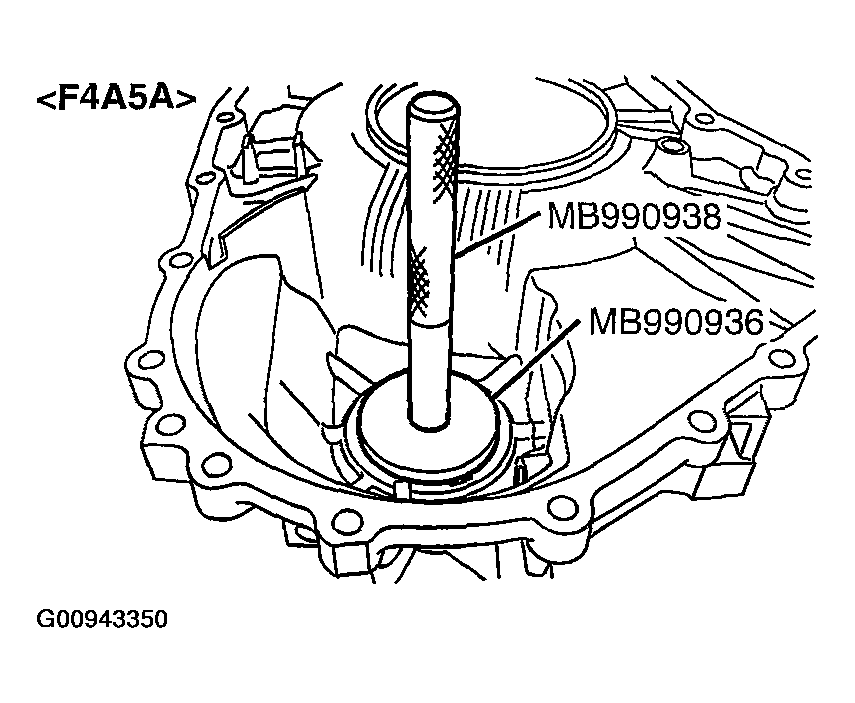

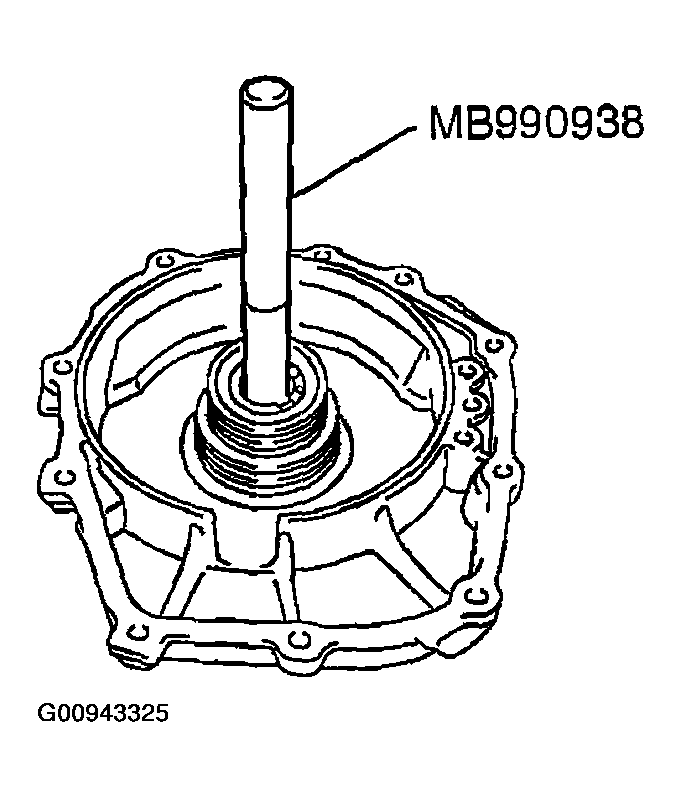

Use special tool MB990938 to tap the input shaft rear bearing in the rear cover.
Install the seal rings (four pieces) in the grooves of the rear cover.

Fig 51: Installing Seal Rings In Grooves Of Rear Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

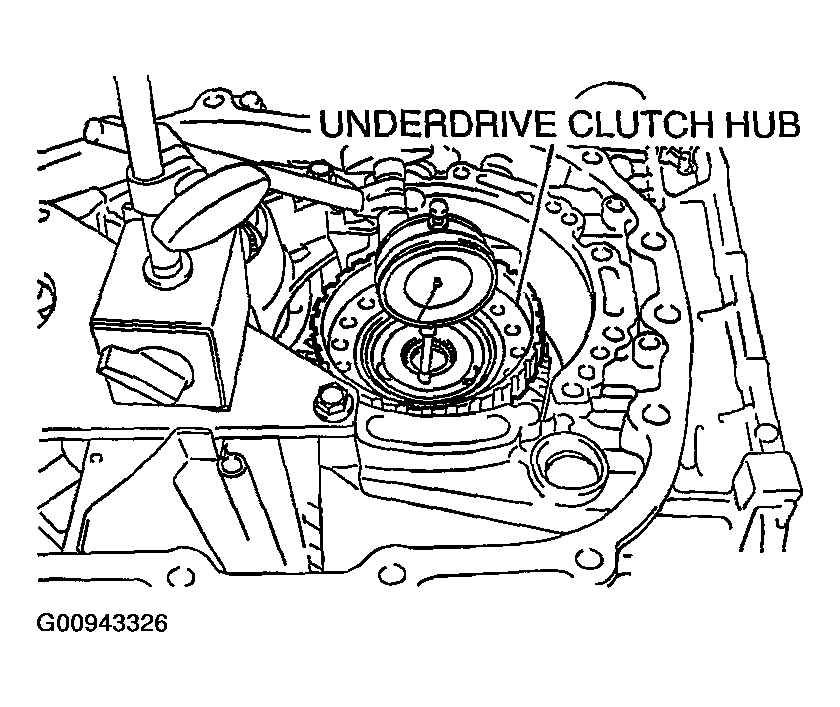

Measure the end play of the under drive sun gear by the following procedures:
1. Install the thinnest thrust race number 8 [thickness 1.6 mm (0.063 inch); part number MD707267] on thrust bearing number 7.

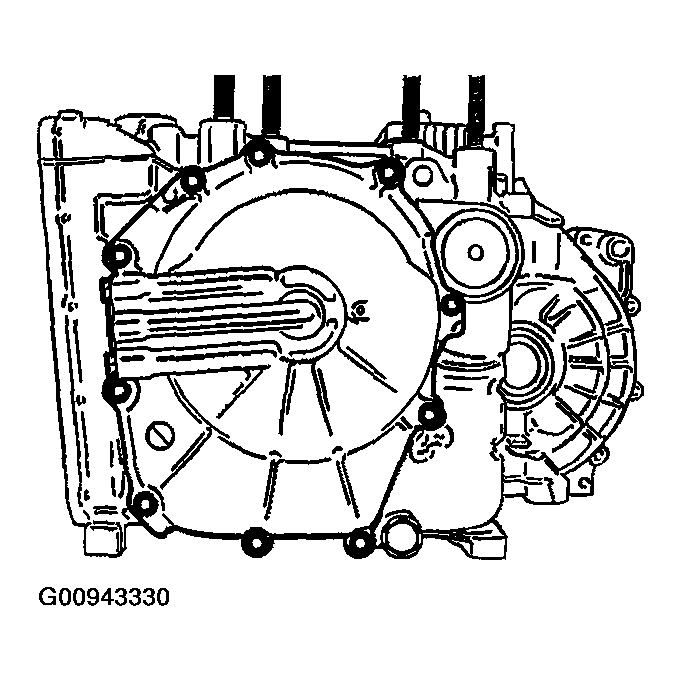

2. Install the rear cover on the transaxle case and tighten the bolts to the specified torque.
  Tightening torque: 23 +/- 3 N.m (17 +/- 2 ft-lb)

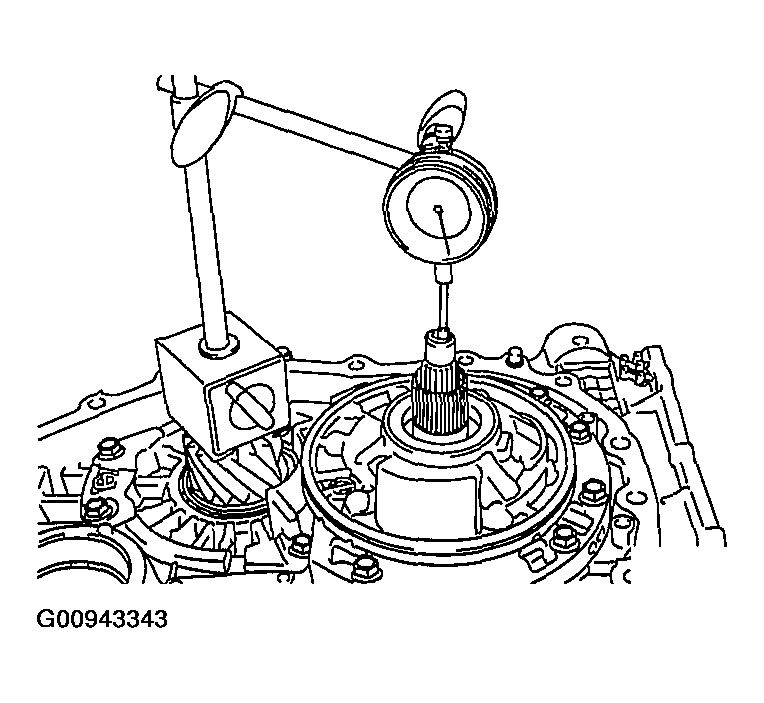

  Fig 52: Measuring End Play Of Under Drive Sun Gear
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Turn over the transaxle case so that the installation surface of the torque converter housing is facing up.
4. Install the under drive clutch hub on the under drive sun gear.
5. Measure end play of the underdrive sun gear and record the measurement value.
  Standard value (Reference):

  0.25 - 0.45 mm (0.0098 - 0.0177 inch)
6. After taking the measurement in steps (5), take out the installed parts in steps (1) through (4).

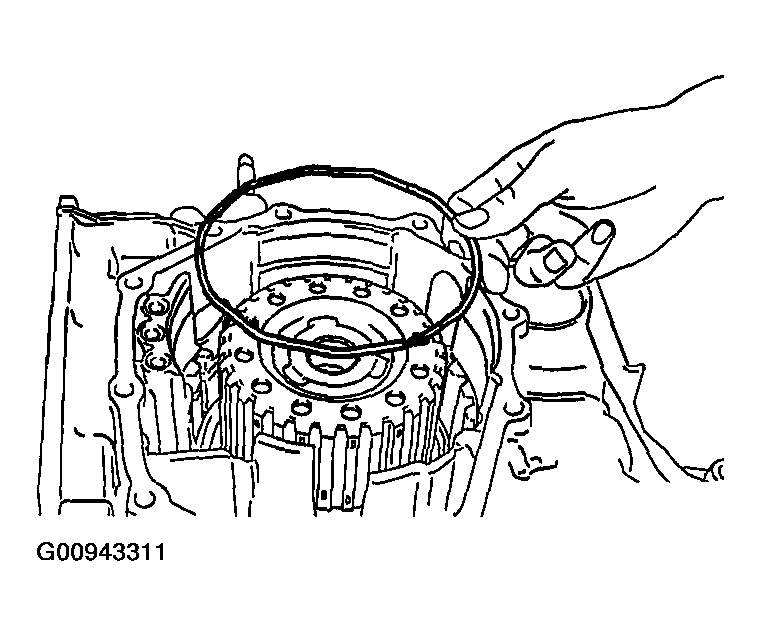

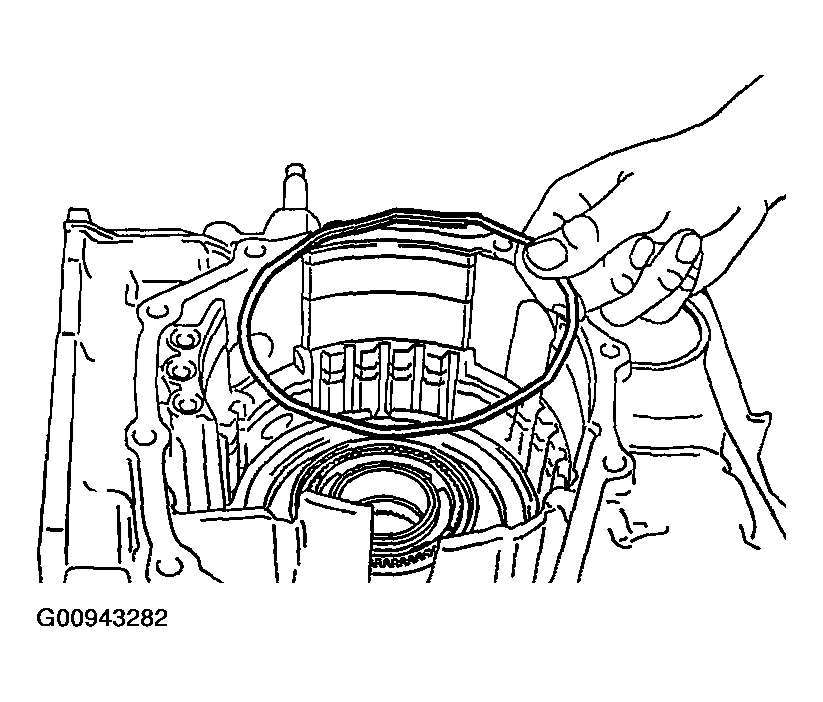

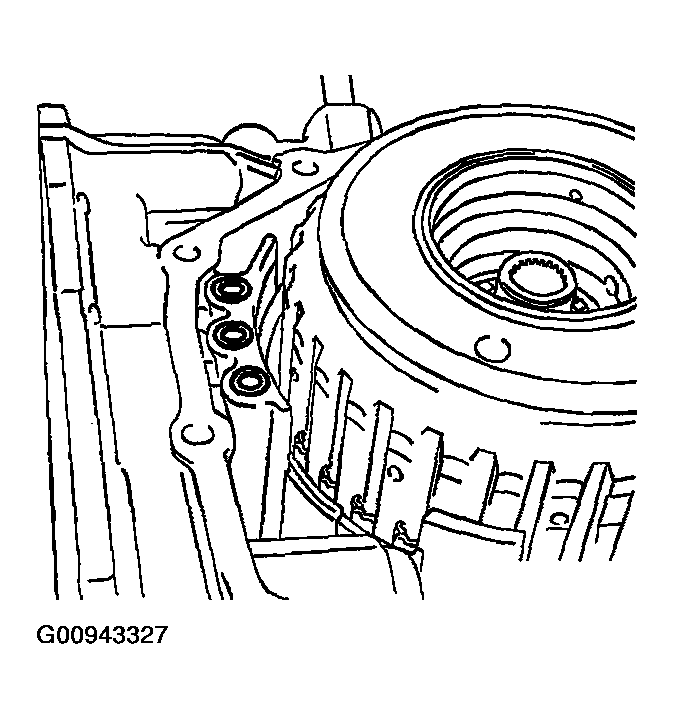

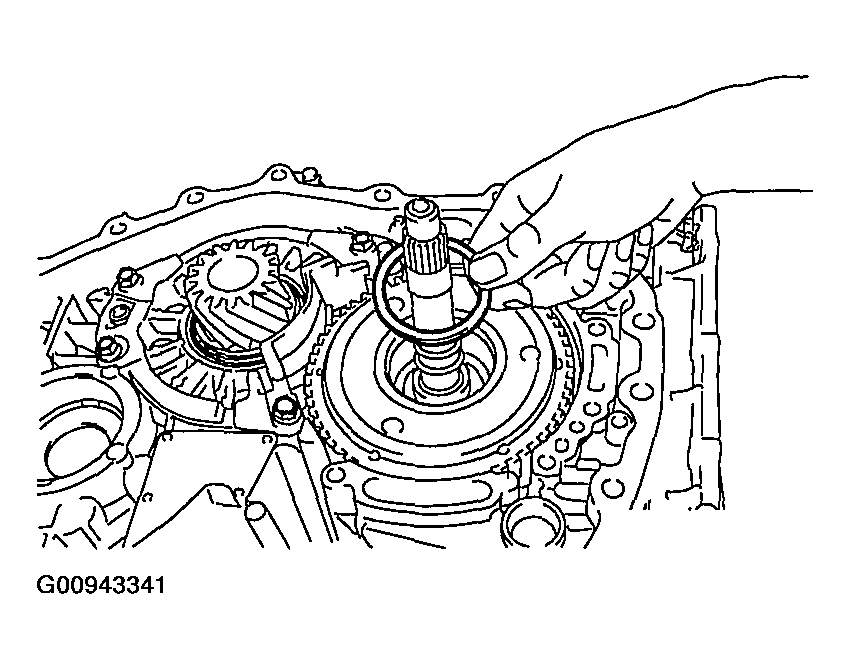

Install the O-rings (three pieces).

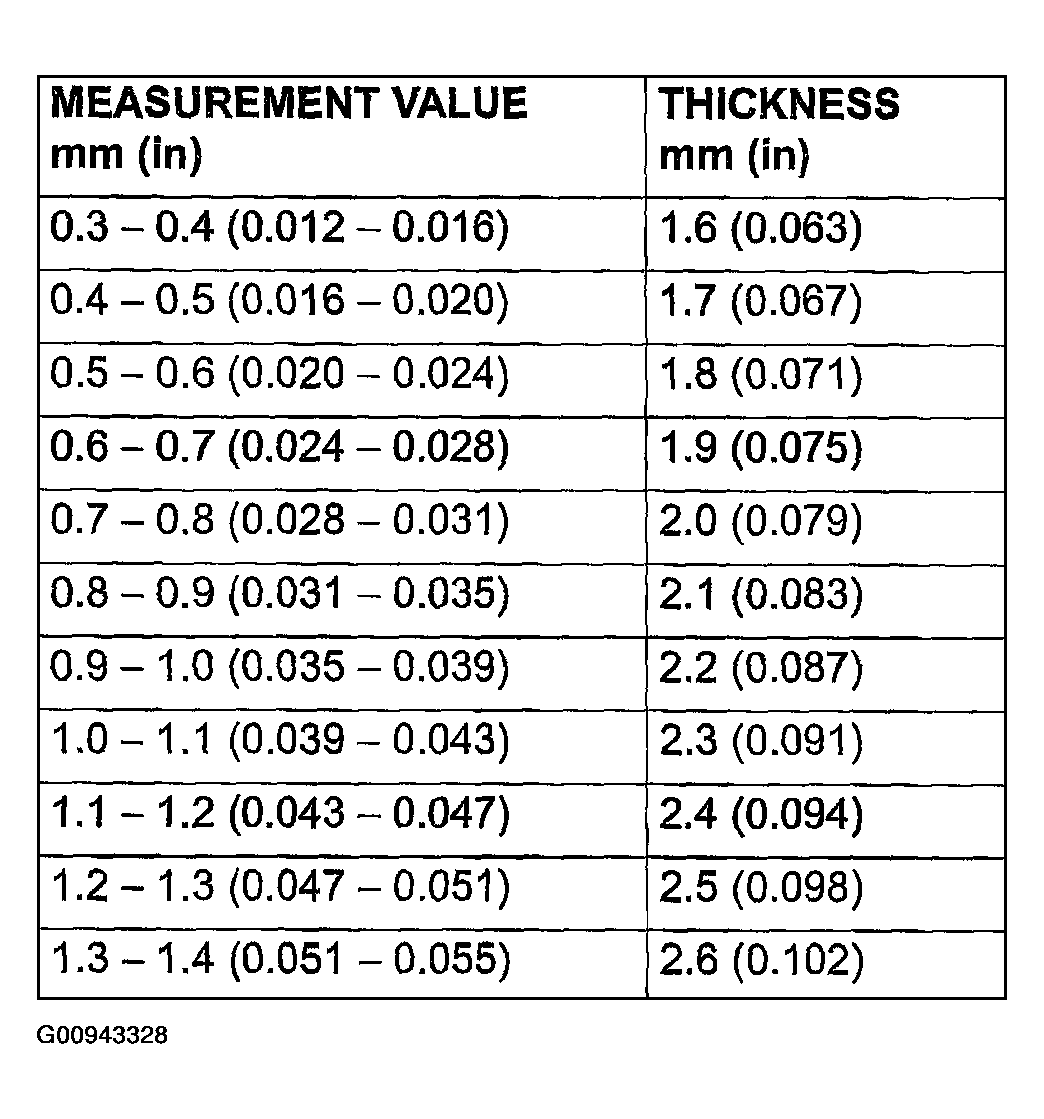

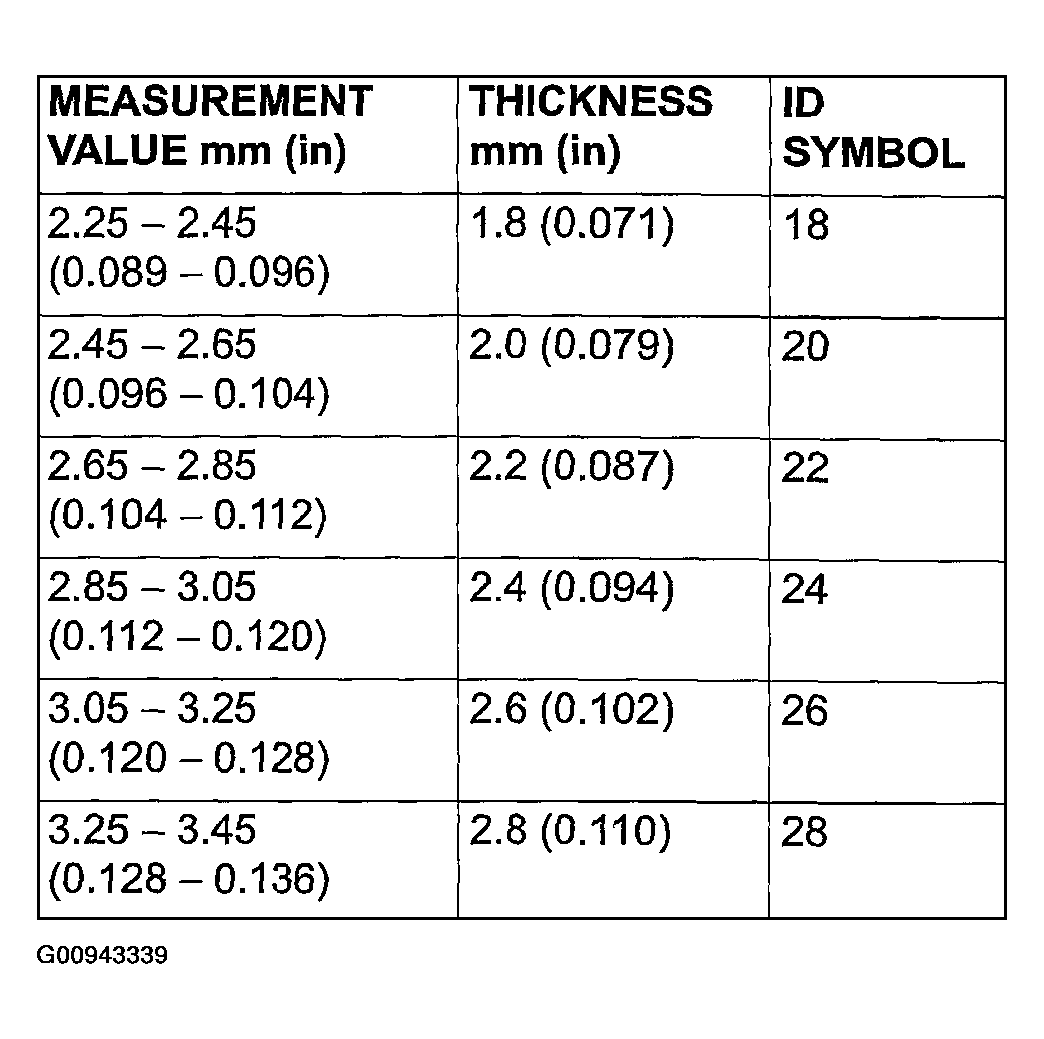

Select a thrust race number 8 whose thickness corresponds to the measured values taken in step 47 from the Fig 53. Install it on thrust bearing number 7.

Fig 53: Thickness Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

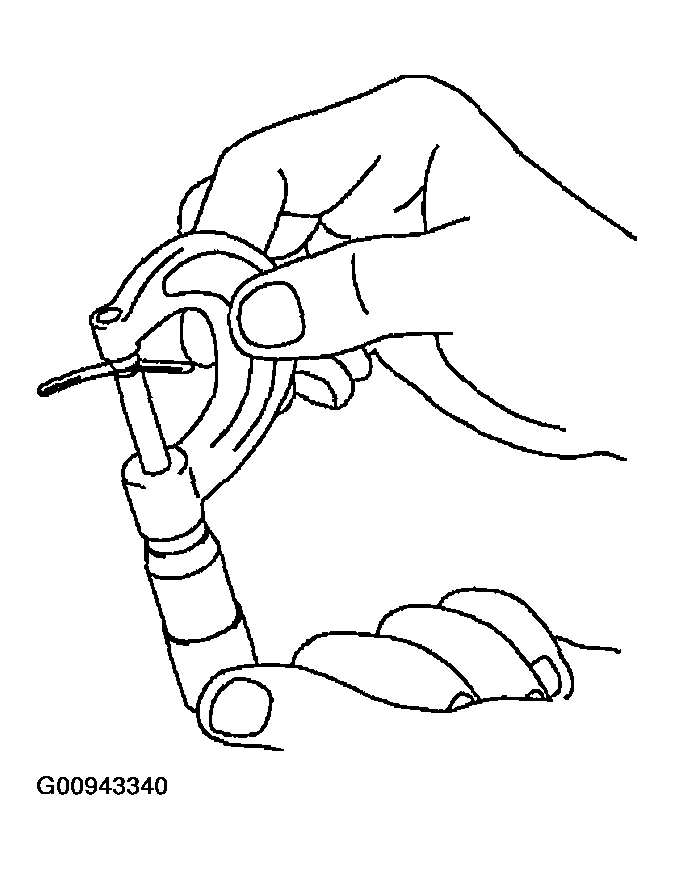

Fig 54: Measuring Thickness Values
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

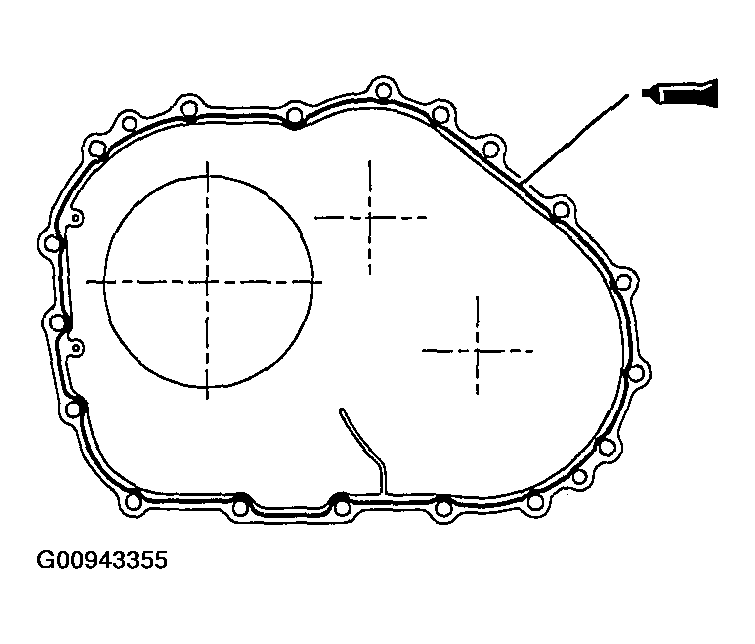

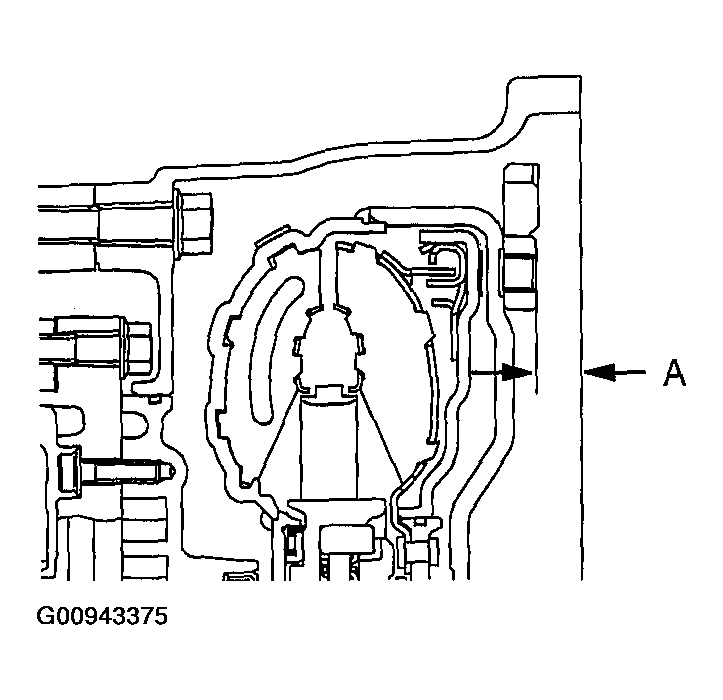

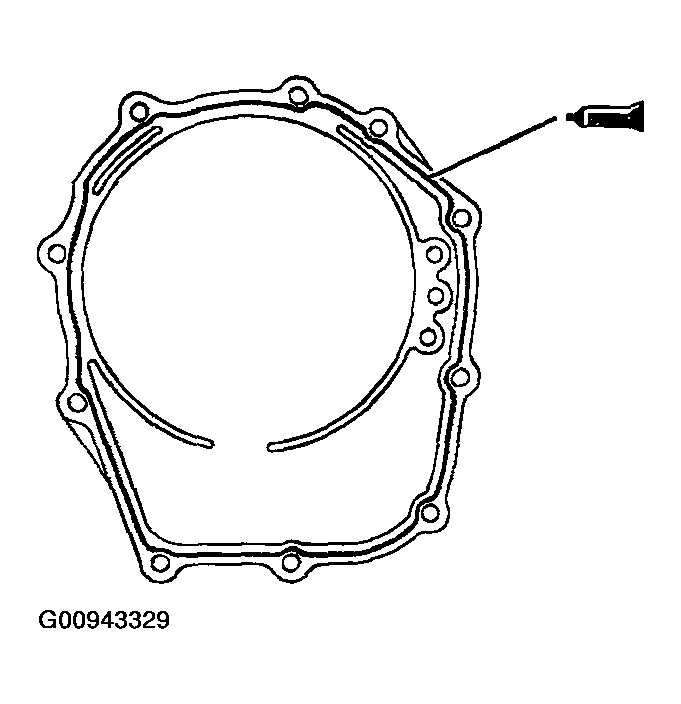

Apply a 2 mm (0.08 inch) diameter bead of sealant (MITSUBISHI Genuine Part number MD974421 or equivalent) to the illustrated position of the rear cover.
NOTE: Be sure to install the case quickly while the sealant is wet (within 15 minutes). Leaks will occur if the rear cover is installed after the sealant dries.

Fig 55: Applying Bead Of Sealant To Illustrated Position Of The Rear Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the rear cover, and tighten its mounting bolts to the specified torque.
Tightening torque: 23+/-3 N.m (17+/-2 ft-lb)

NOTE: After installation, keep the sealed area away from ATF for approximately one hour.

Fig 56: Tightening Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

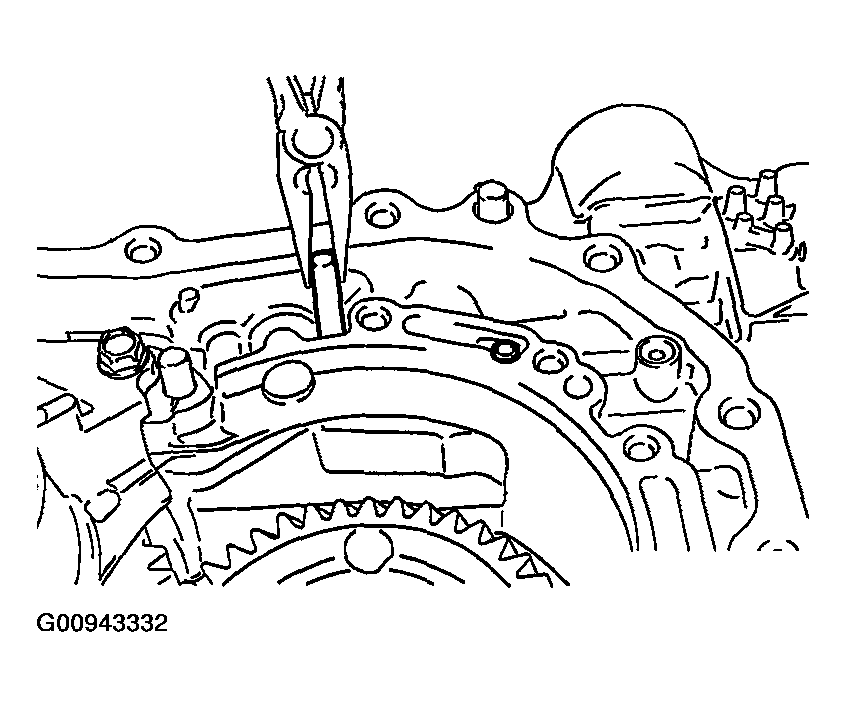

Install the parking pawl, spacer, and spring. Then insert the parking pawl shaft.

Fig 57: Installing Parking Pawl Spacer And Spring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

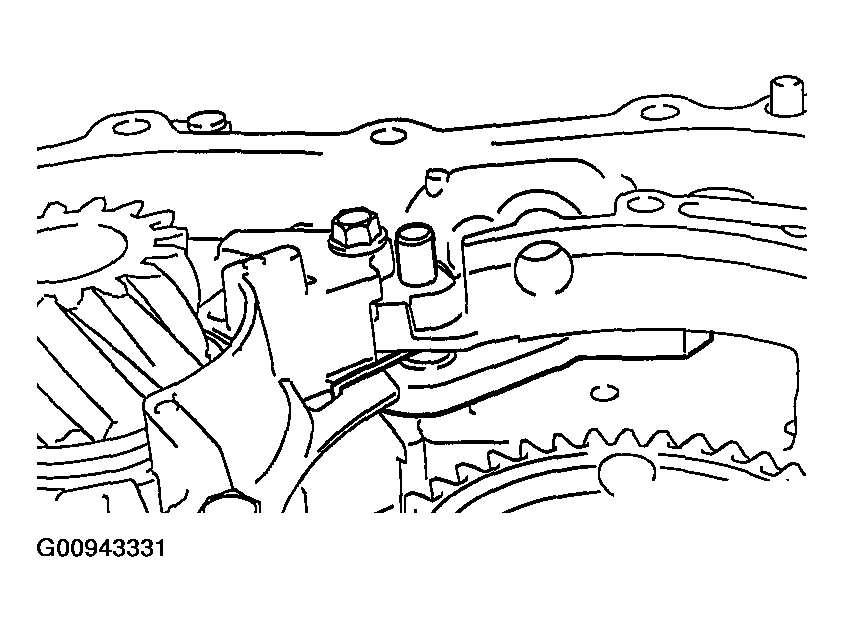

Install the parking roller support, and then insert the parking roller support shafts (two pieces).

Fig 58: Installing Parking Roller Support
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the underdrive clutch hub to the underdrive sun gear.

Fig 59: Installing Underdrive Clutch Hub To Underdrive Sun Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Be sure to install the thrust bearing in the correct direction as shown.
Check the installation direction of thrust bearing number 2, and install it on the underdrive clutch hub.

Fig 60: Installing Thrust Bearing Number 2
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Hold the input shaft, and install the underdrive clutch.

Fig 61: Installing Underdrive Clutch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

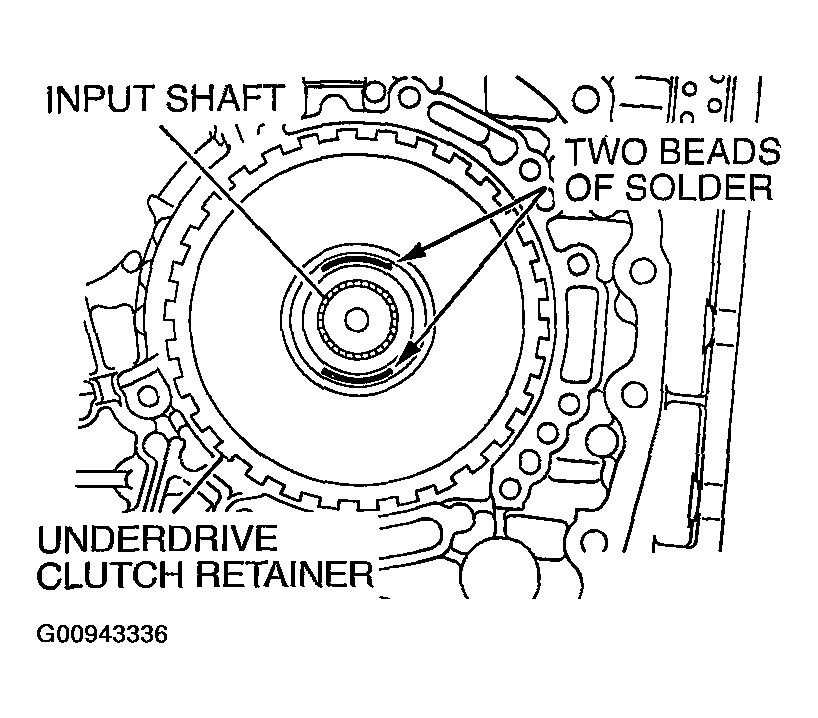

Place two beads of solder [each 10 mm (0.39 inch) in length, 3.5 mm (0.14 inch) in diameter] on the underdrive clutch retainer as shown in the illustration.

Fig 62: Placing Two Beads Of Solder
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install special tool MD998412 as shown.
Install the oil pump to the transaxle case.
NOTE: Do not install the oil pump gasket at this time.
Tighten the six oil pump mounting bolts to the specified torque.
Tightening torque: 29 +/- 2 N.m (21 +/- 1 ft-lb)
Remove the oil pump mounting bolts.

Fig 63: Installing Special Tool And Oil Pump To Transaxle Case
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Using special tools MD998333, remove the oil pump and the crushed solders.

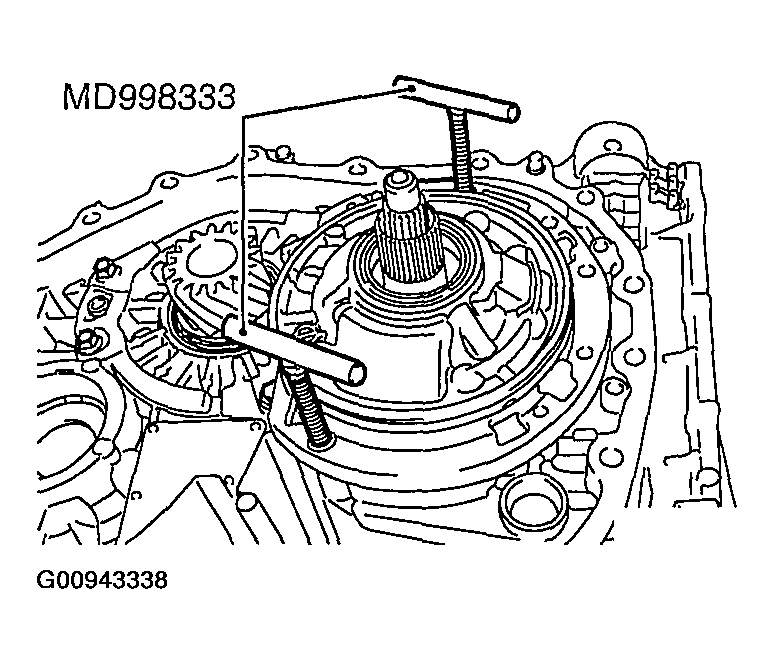

Fig 64: Removing Oil Pump And Crushed Solders
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Use a micrometer to measure the thickness of the crushed solder beads and record the measured value.
Select a thrust washer number 1 whose thickness corresponds to the measured value from figure below.

Fig 65: Thrust Washer Thickness Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 66: Measuring Thickness Of Crushed Solder Beads
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install thrust washer number 1 that was selected in step 64 on the underdrive clutch retainer.

Fig 67: Installing Thrust Washer Number
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

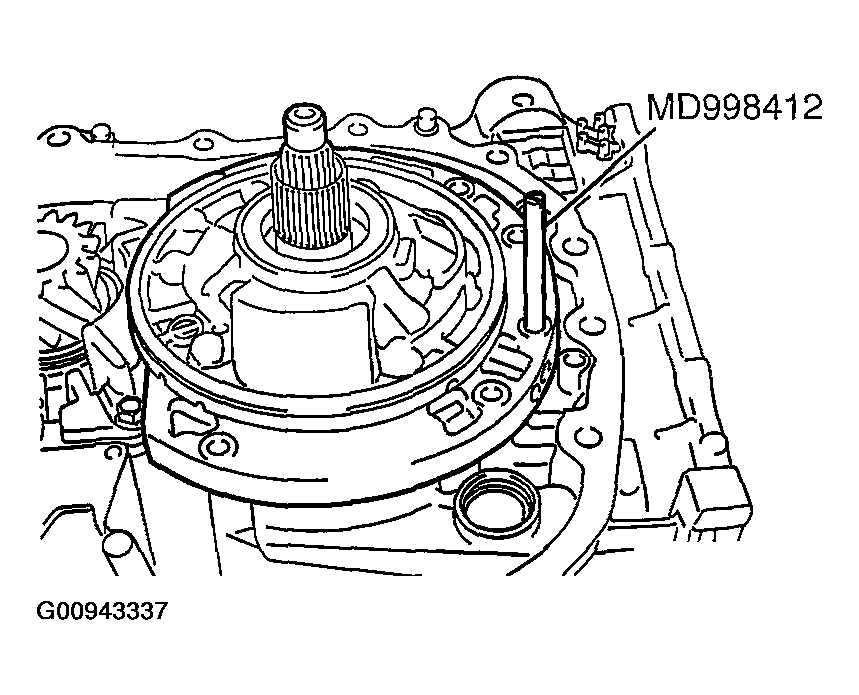

Install special tool MD998412 as shown.
Install the new oil pump gasket on the transaxle case.

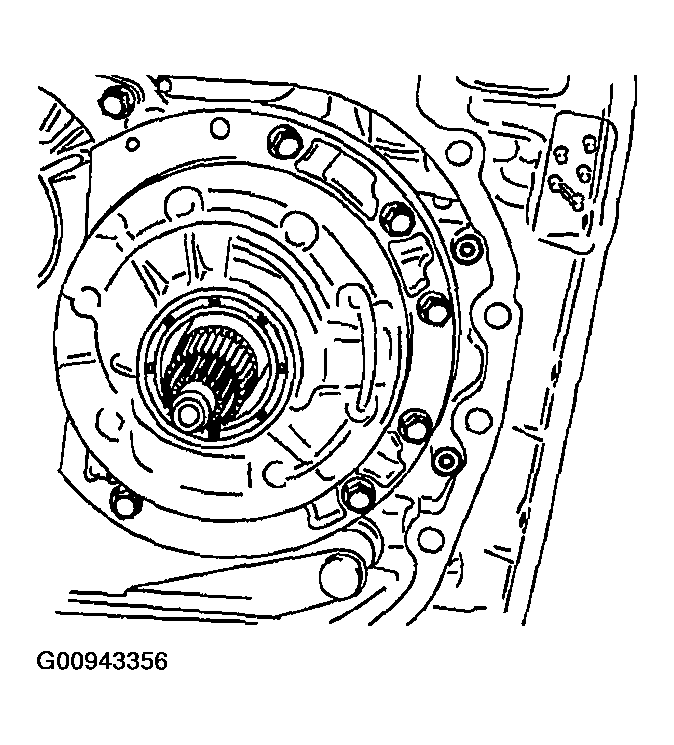

Install the oil pump and tighten the six mounting bolts to the specified torque.
Tightening torque: 29 +/- 2 N.m (21 +/- 1 ft-lb)

Fig 68: Installing Special Tool And New Oil Pump Gasket On Transaxle Case
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Make sure that the input shaft end play meets the standard value.
Standard value : 0.70 - 1.45 mm (0.028 - 0.057 inch)

Fig 69: Measuring Input Shaft End Play Meets Standard Value
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

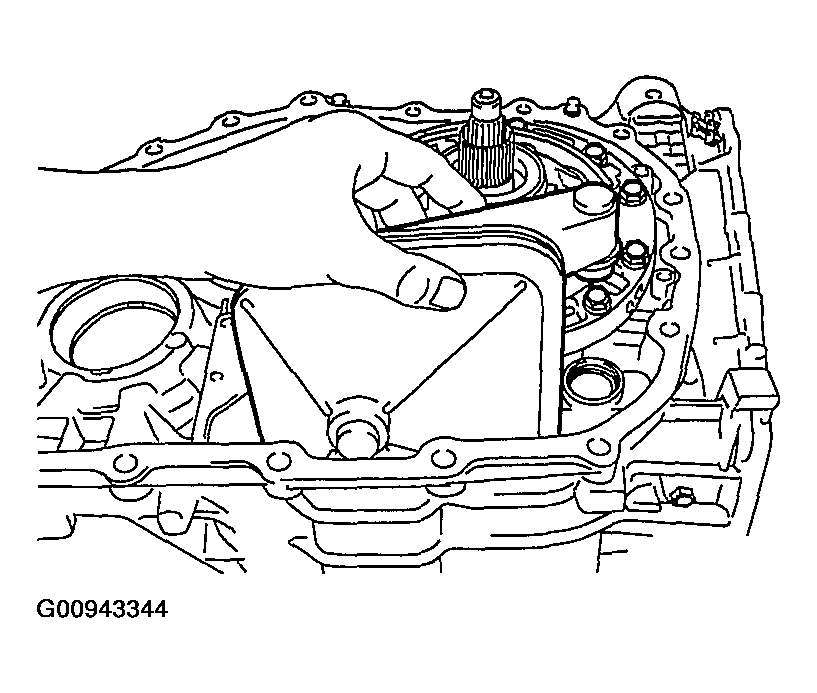

Install the oil filter.

Fig 70: Installing Oil Filter
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

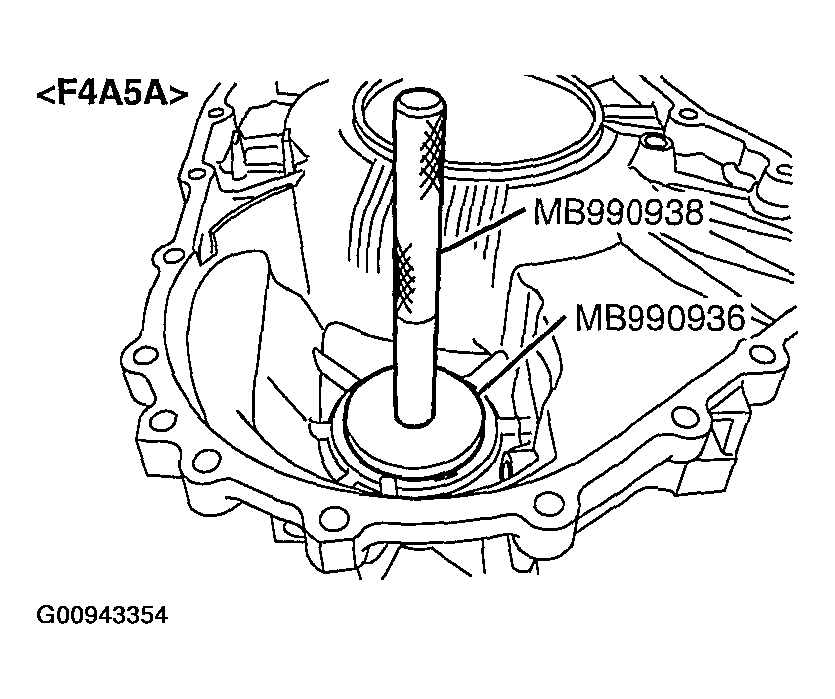

Use special tools MB990935 < F4A4B> or MB990936 < F4A5A> and MB990938 to tap the differential bearing outer race in the transaxle case.

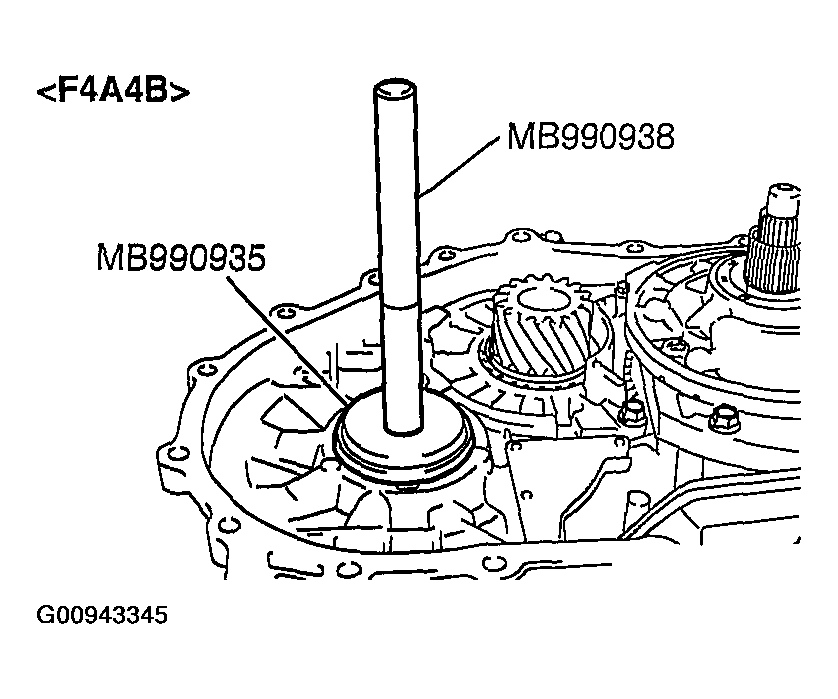

Fig 71: Using Special Tools To Taping Differential Bearing Outer Race In Transaxle Case (F4A4B)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

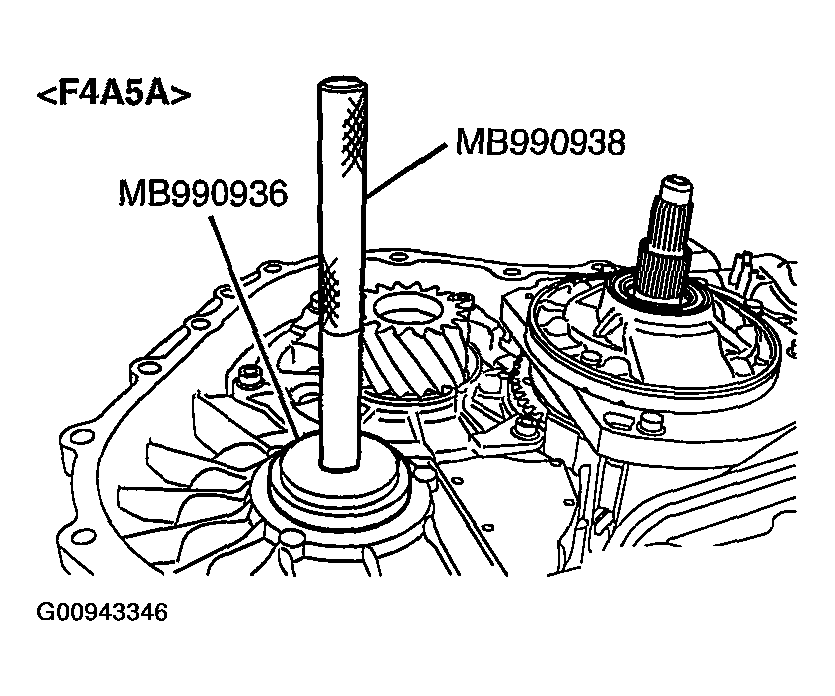

Fig 72: Using Special Tools To Taping Differential Bearing Outer Race In Transaxle Case (F4A5A)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

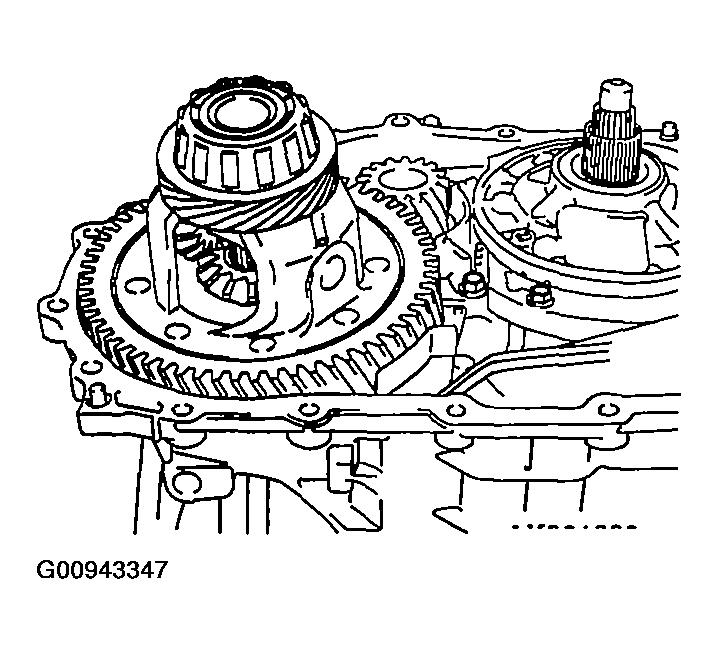

Install the differential.

Fig 73: Installing Differential
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

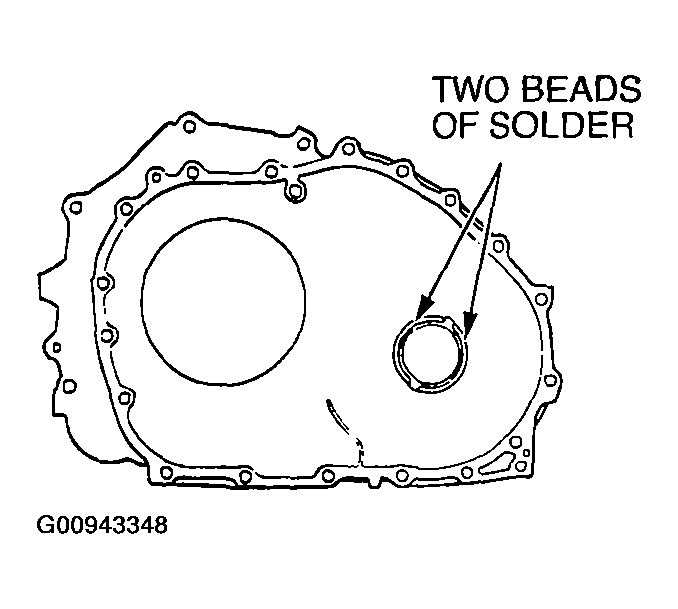

Place two beads of solder [each 10 mm (0.39 inch) in length, 3 mm (0.12 inch) in diameter] on the torque converter housing as shown in the illustration.

Fig 74: Placing Two Beads Of Solder
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Use special tools MB990935 < F4A4B> or MB990936 < F4A5A> and MB990938 to press the differential bearing outer race into the torque converter housing.

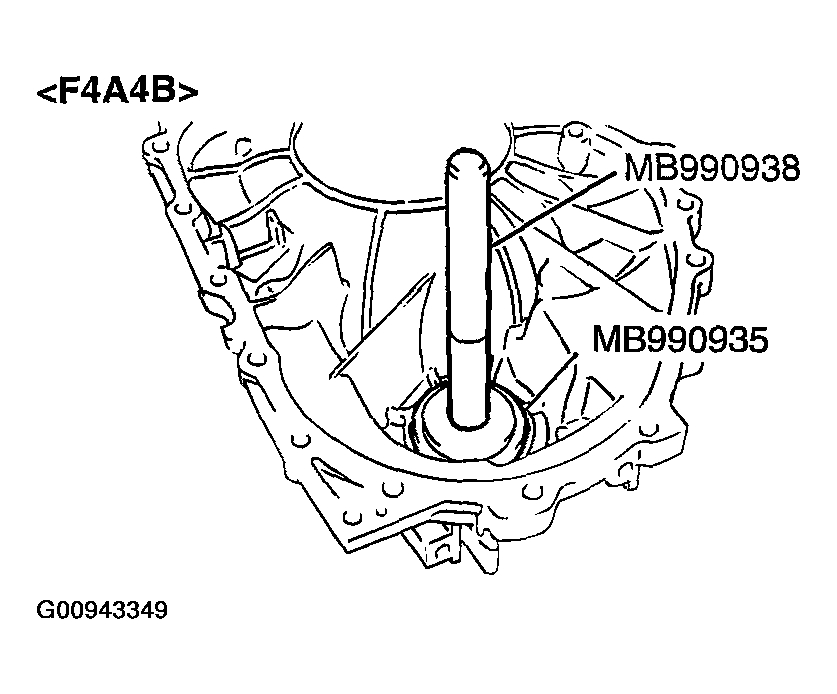

Fig 75: Pressing Differential Bearing Outer Race Into Torque Converter Housing (F4A4B)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 76: Pressing Differential Bearing Outer Race Into Torque Converter Housing (F4A5A)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the torque converter housing to the transaxle case without applying sealant. Tighten its mounting bolts to the specified torque.
Tightening torque: 48 +/- 6 N.m (35 +/- 4 ft-lb)
Loosen all the bolts, and remove the torque converter housing. Then remove the outer race and the crushed solders.

Fig 77: Installing Torque Converter Housing To Transaxle Case
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

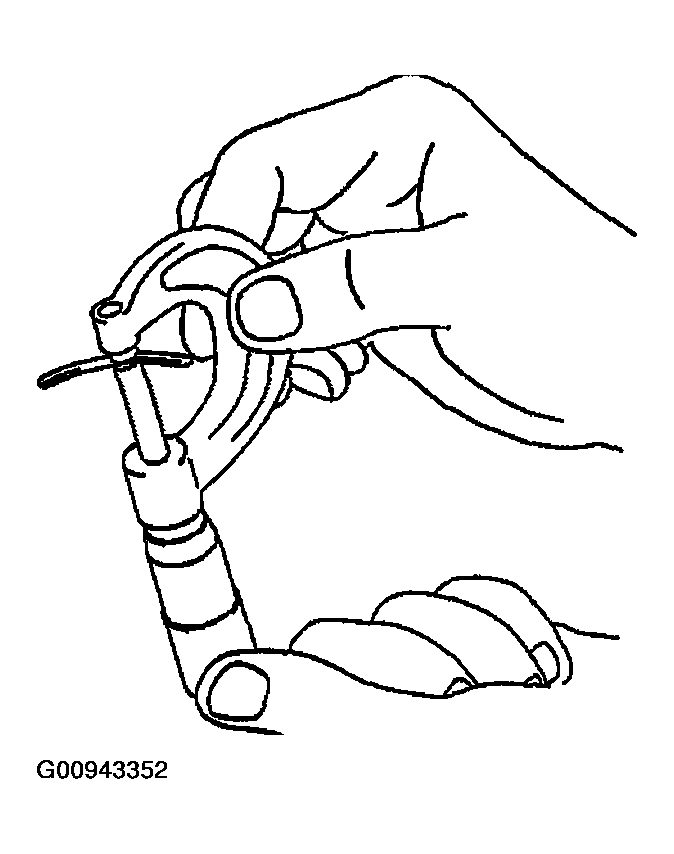

Use a micrometer to measure the thickness of the crushed solder beads and record the measured value. Add 0.045 to 0.105 mm (0.0018 to 0.0041 inch)* to the measured value and select a spacer with the corresponding thickness.
Adjustment spacer sizes are all listed on ADJUSTING PLATE, SNAP RING AND SPACERS . Select the most suitable one from among those listed.

NOTE: *is the thickness for the differential case preload.
Install the spacer selected in step 77 to the torque converter housing.

Fig 78: Measuring Thickness Of Crushed Solder Beads
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Use special tools MB990935 < F4A4B> or MB990936 < F4A5A> and MB990938 to press the outer race into housing.

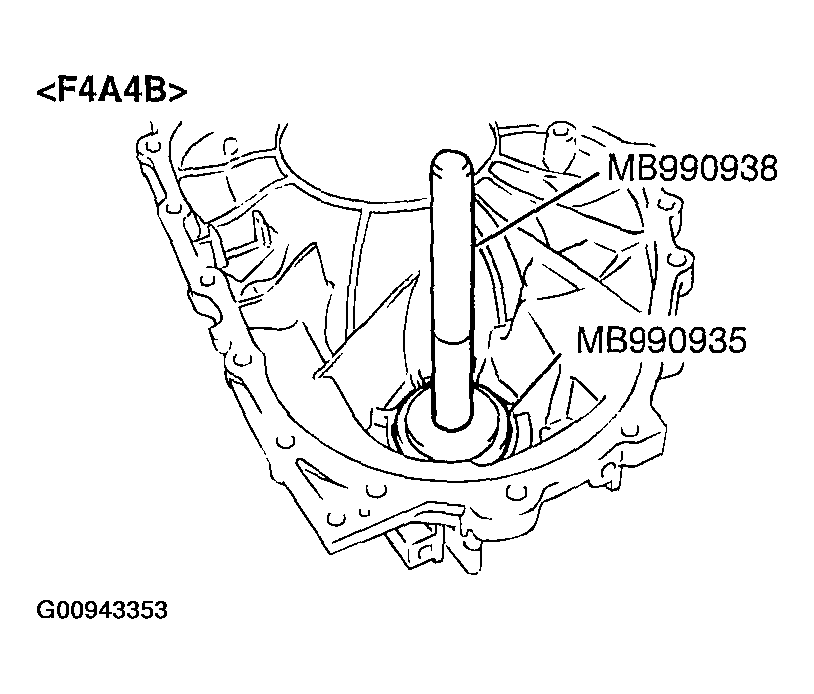

Fig 79: Pressing Outer Race Into Housing (F4A4B)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 80: Pressing Outer Race Into Housing (F4A5A)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Apply a 2 mm (0.08 inch) diameter bead of sealant (MITSUBISHI Genuine Part number MD974421 or equivalent) to the torque converter housing in the area shown.
NOTE: Be sure to install the case quickly while the sealant is wet (with 15 minutes). Leaks will occur if the rear cover is installed after the sealant dries.

NOTE: After installation, keep the sealed area away from ATF for approximately one hour.

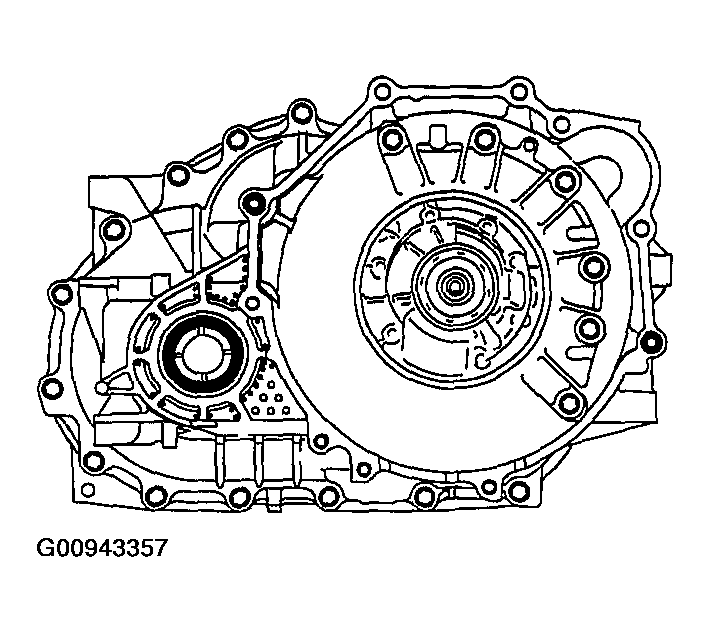

Fig 81: Applying Bead Of Sealant To Torque Converter Housing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the O-rings (two pieces).

Fig 82: Installing O-Rings (Two Pieces)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

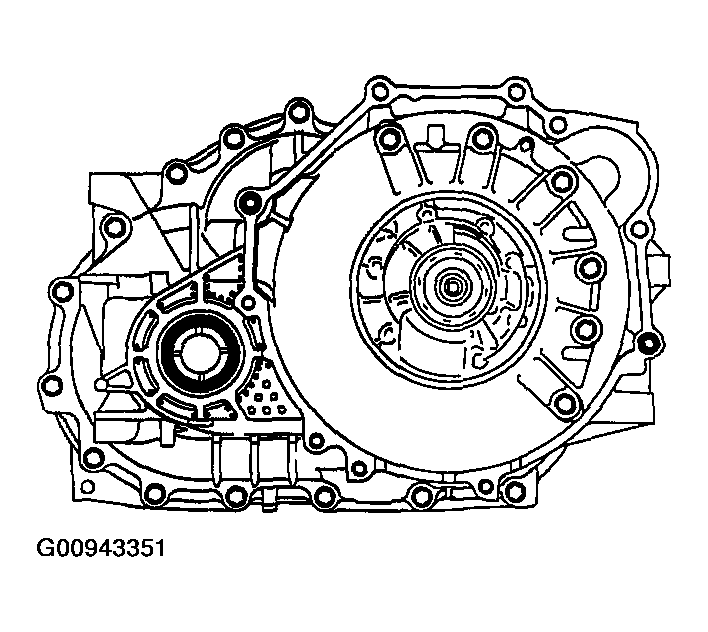

Install the torque converter housing and then tighten its mounting bolts (eighteen pieces) to the specified torque.
Tightening torque: 48 +/- 6 N.m (35 +/- 4 ft-lb)
Insert the O-rings (two pieces) into the grooves of the manual control lever shaft.
Install the manual control lever shaft and parking pawl rod.

Fig 83: Installing Torque Converter Housing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

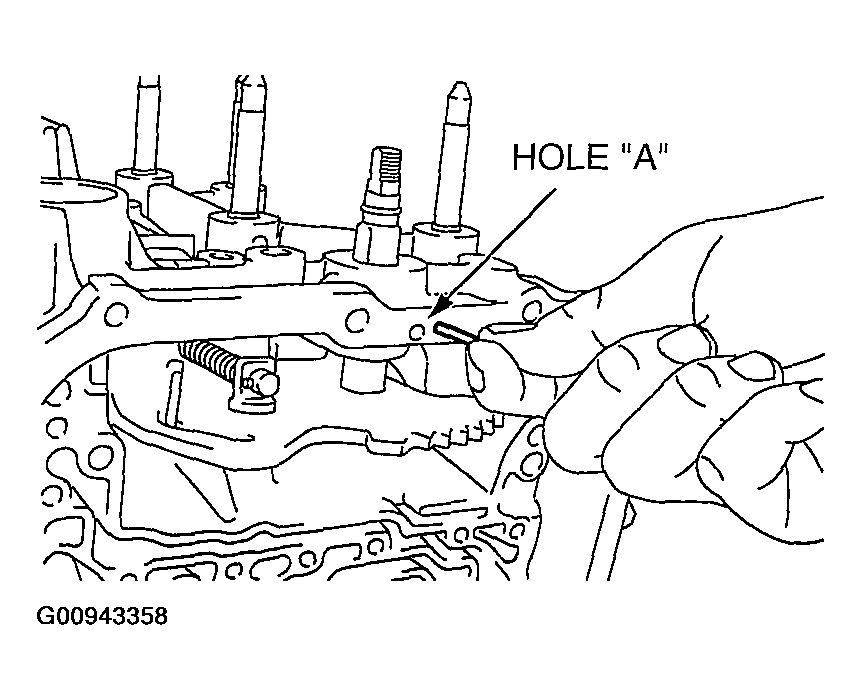

Align hole "A" with the groove in the manual control lever shaft. Insert the manual control lever shaft roller into hole "A."
Insert the new seal rings in the grooves of the accumulator pistons.
NOTE: The piston and seal ring are common parts.

Fig 84: Aligning Hole A With Groove In Manual Control Lever Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

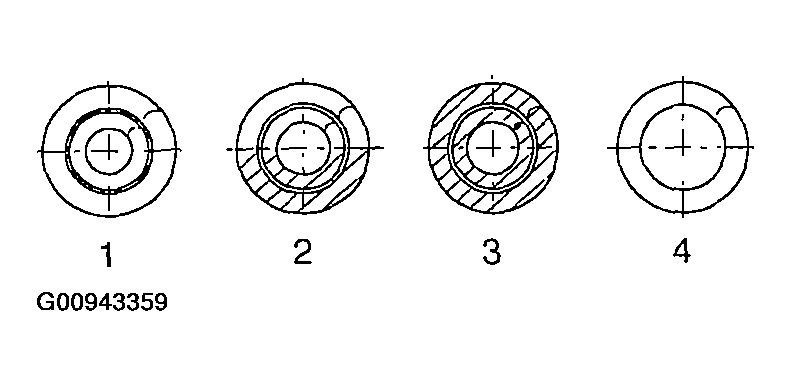

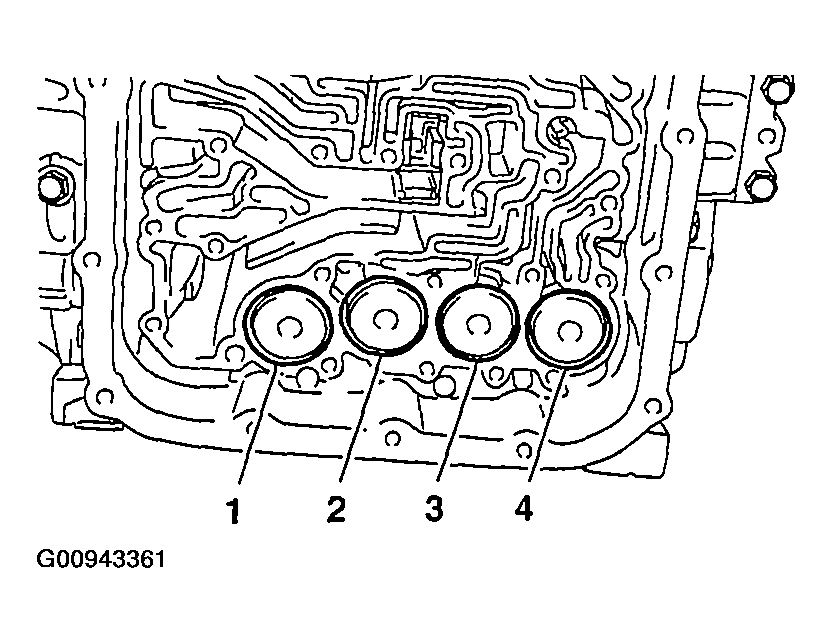

Identify the accumulator spring and insert it and the accumulator piston into each hole of the transaxle case.
NOTE: Accumulator springs are identified as shown in the illustration.

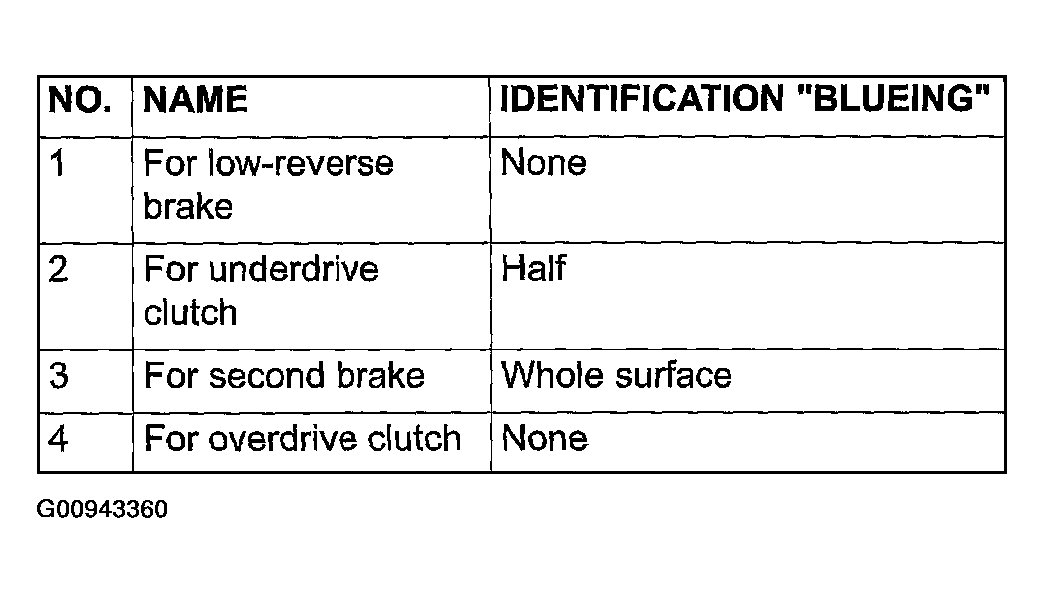

Fig 85: Accumulator Spring Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 86: Identifying Accumulator Spring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 87: Installing Accumulator Spring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the strainer and second brake retainer oil seal.

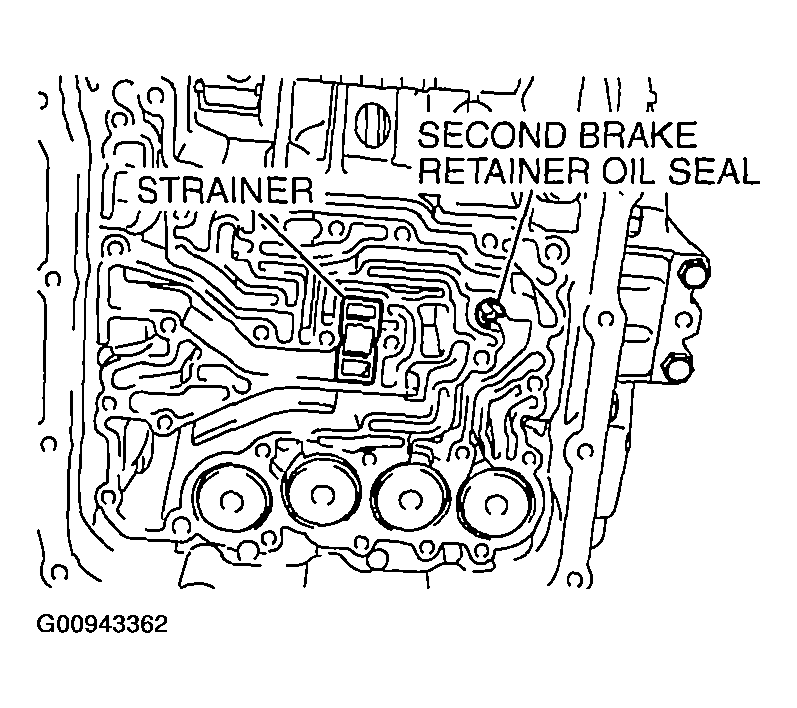

Fig 88: Installing Strainer And Second Brake Retainer Oil Seal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

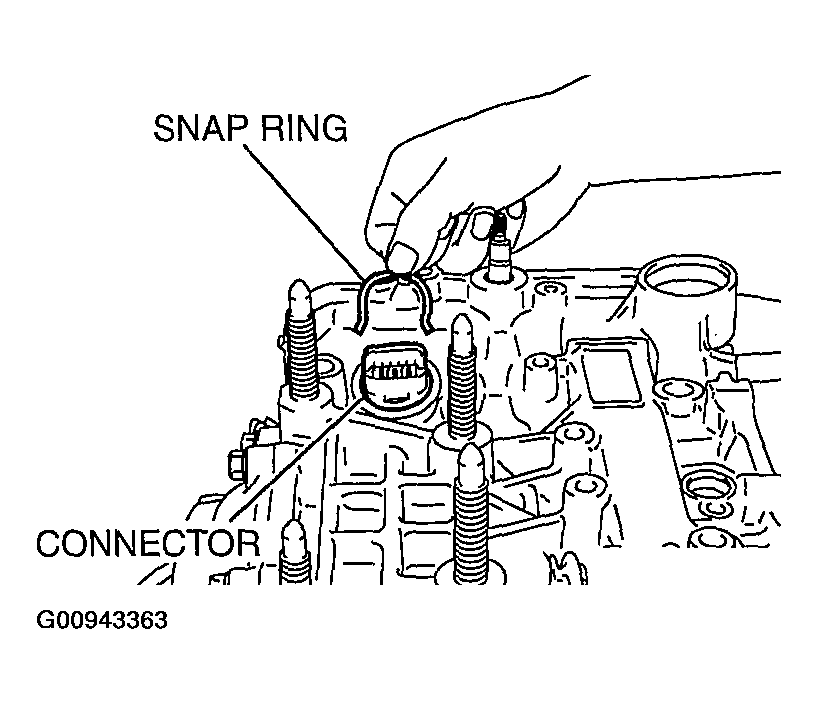

Insert a new O-ring to the groove of the solenoid valve harness connector.
Insert the solenoid valve harness connector into the hole from the inside of the transaxle case so it is oriented as shown in the illustration. Then secure the snap ring to the connector groove.

Fig 89: Inserting Solenoid Valve Harness Connector And Snap Ring To Connector Groove
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

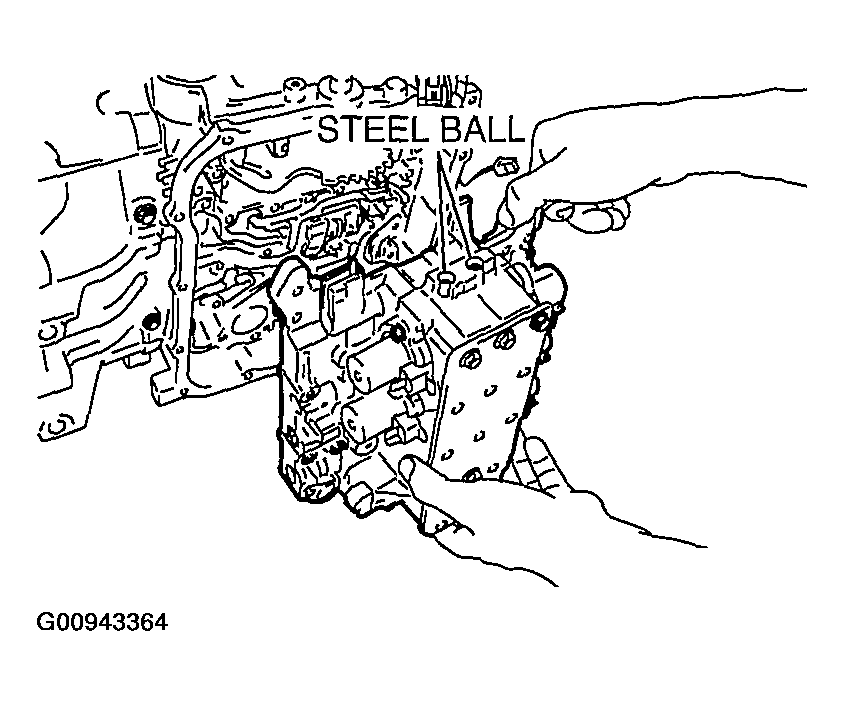

Install the steel balls into each of the two holes in the top face of the valve body (outside valve body).
Install the valve body and gasket to the transaxle case.
Make sure that the manual valve's pin is in the groove in the detent plate of the manual control lever.

Fig 90: Installing Steel Balls
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

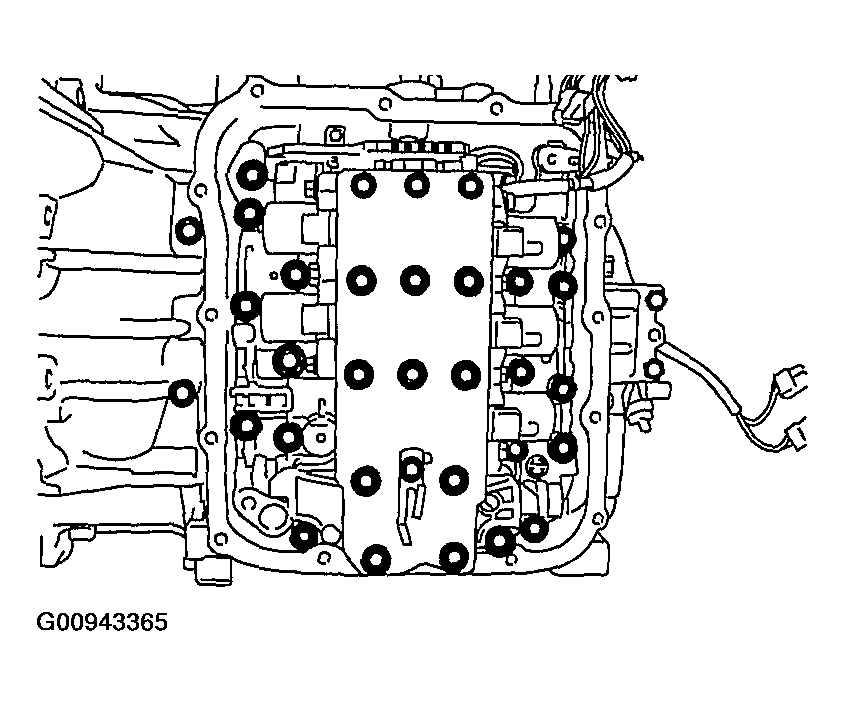

Install the valve body mounting bolts (twenty seven pieces), and tighten to the specified torque.
Tightening torque: 11+/-1 N.m (95+/-9 in-lb)

Fig 91: Installing Valve Body Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

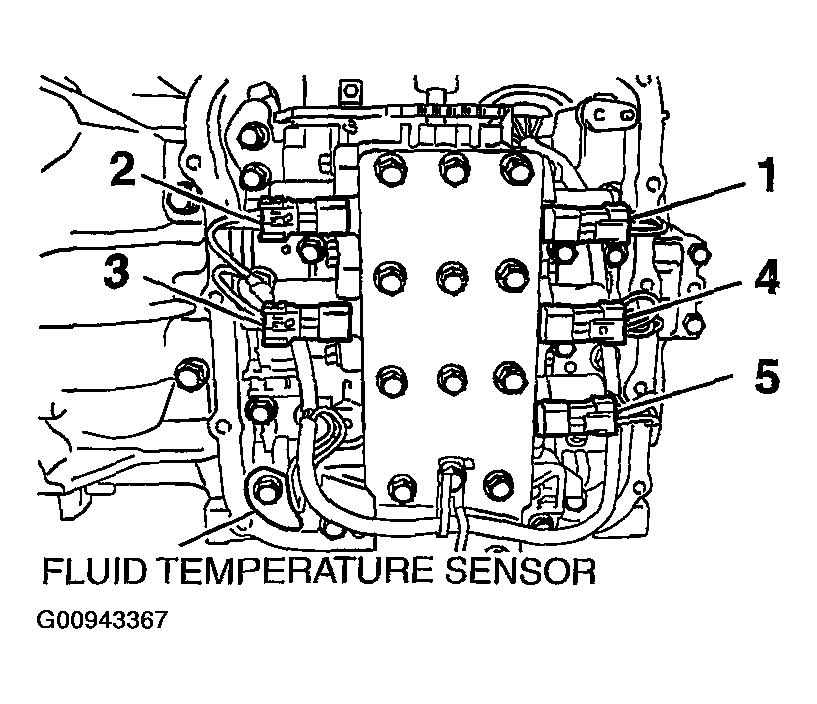

Attach the solenoid valve harness to the valve body by connecting the fluid temperature sensor and all the connectors.

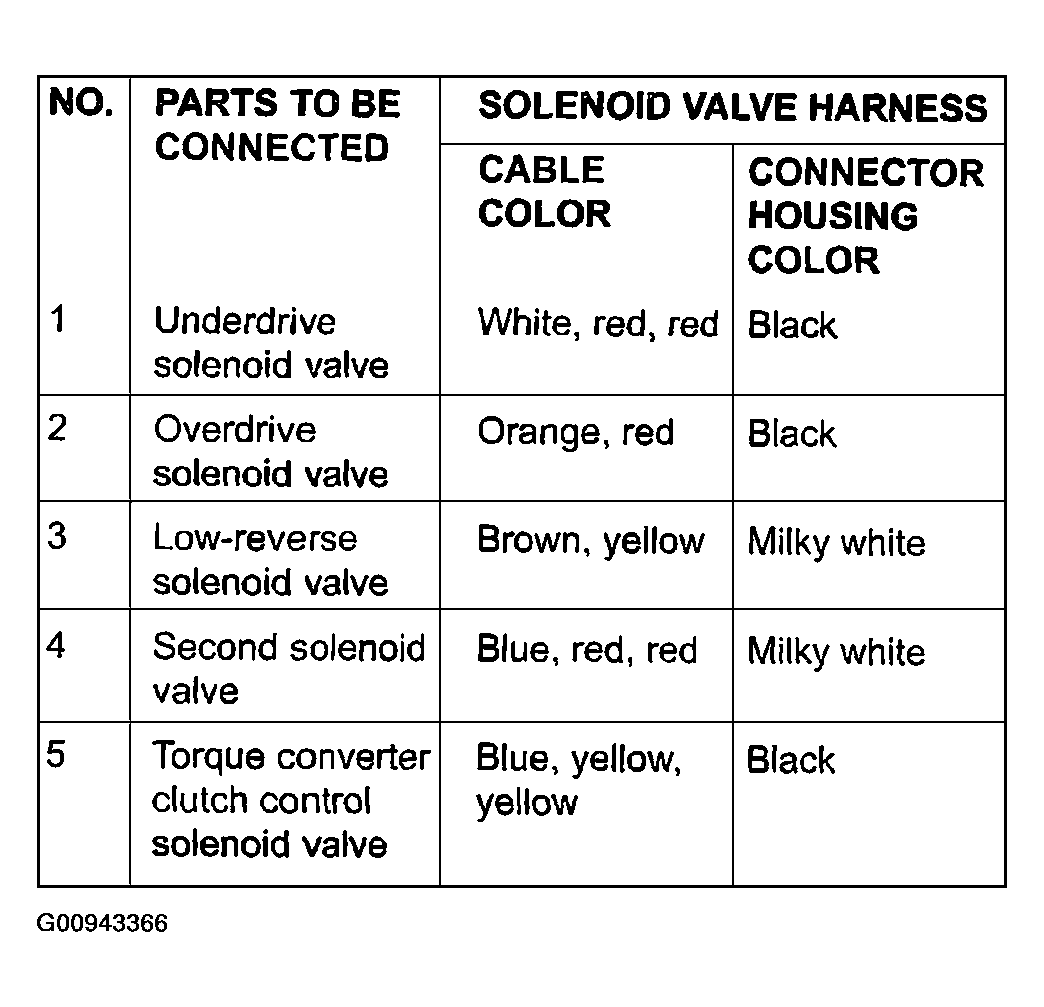

Fig 92: Solenoid Valve Harness Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 93: Attaching Solenoid Valve Harness To Valve Body
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

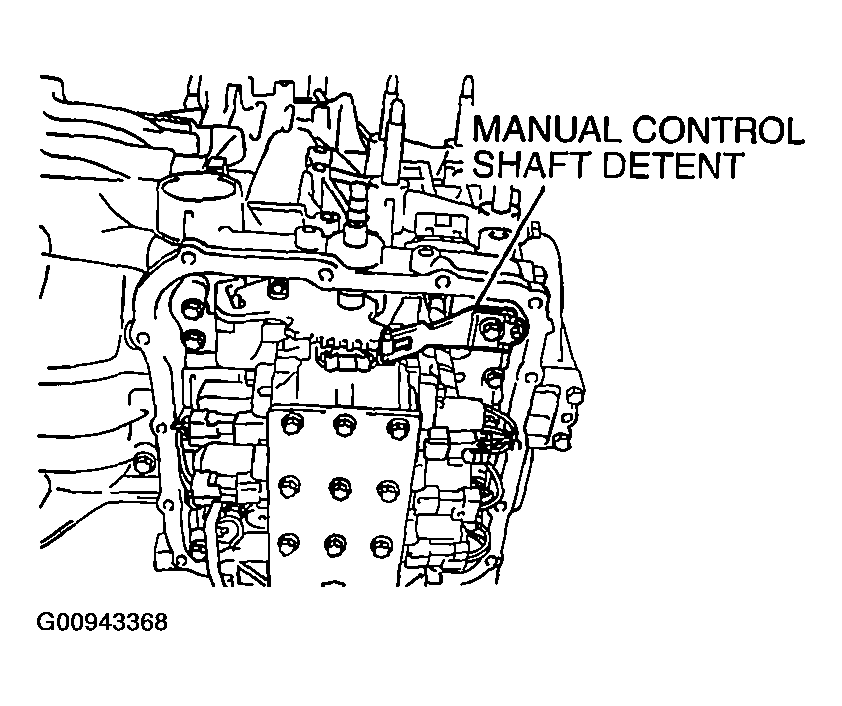

Install the manual control shaft detent and tighten the bolt to the specified torque.
Tightening torque: 6.0+/-1.0 N.m (52+/-9 in-lb)

Fig 94: Installing Manual Control Shaft Detent
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Apply a 2 mm (0.08 inch) diameter bead of sealant (MITSUBISHI Genuine Part number MD974421 or equivalent) to the valve body cover in the area shown.
NOTE: Be sure to install the case quickly while the sealant is wet (with 15 minutes) or leaks will occur if the rear cover is installed after the sealant dries.

NOTE: After installation, keep the sealed area away from ATF for approximately one hour.

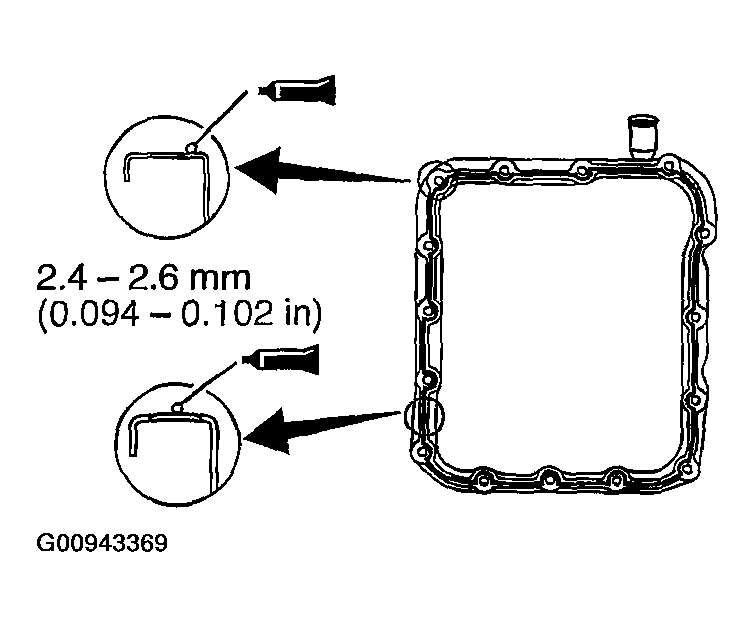

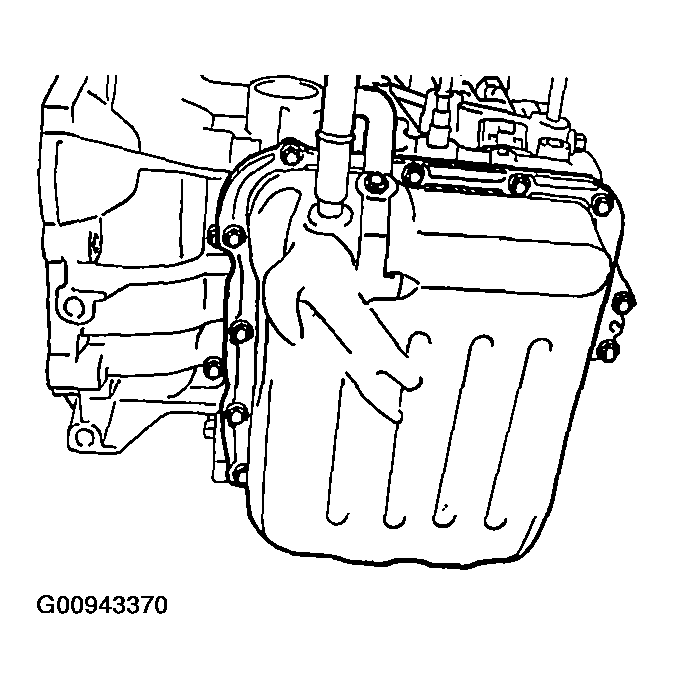

Fig 95: Applying Bead Of Sealant To Valve Body Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the valve body cover, and then tighten its mounting bolts to the specified torque.
Tightening torque: 11+/-1 N.m (95+/-9 in-lb)

Fig 96: Installing Valve Body Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the sealing cap and tighten the bolt to the specified torque.
Tightening torque: 5.0+/-1.0 N.m (43+/-9 in-lb)

Fig 97: Installing Sealing Cap And Tightening Bolt
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

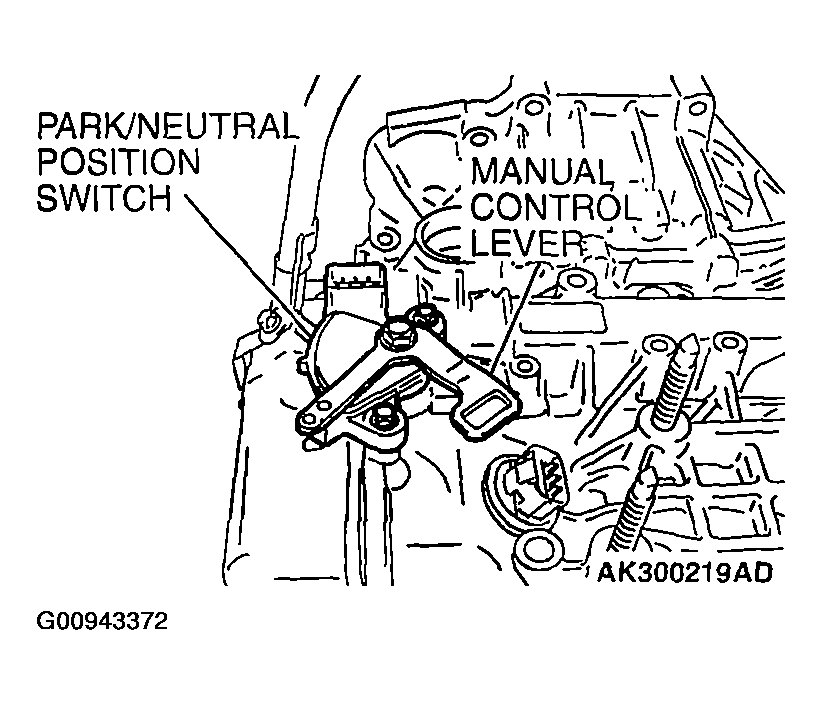

Install the park/neutral position switch and tighten the bolt to the specified torque.
Tightening torque: 11+/-1 N.m (95+/-9 in-lb)
Install the manual control lever and tighten the nut to the specified torque.
Tightening torque: 22+/-3 N.m (16+/-2 ft-lb)

Fig 98: Installing Manual Control Lever And Tightening Nut
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

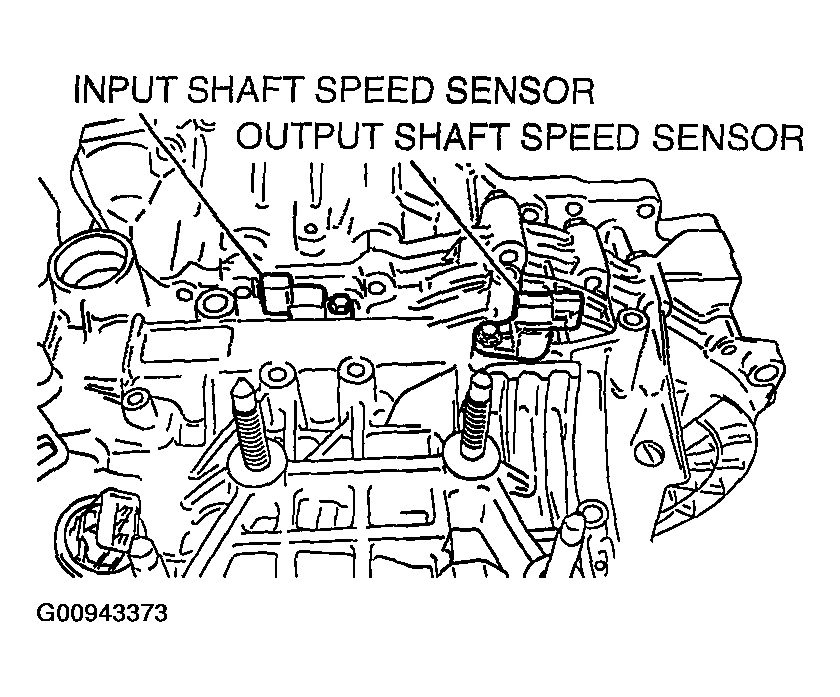

Install the input shaft speed sensor and output shaft speed sensor and tighten the bolt to the specified torque.
Tightening torque: 11+/-1 N.m (95+/-9 in-lb)

Fig 99: Installing Input Shaft Speed Sensor And Output Shaft Speed Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

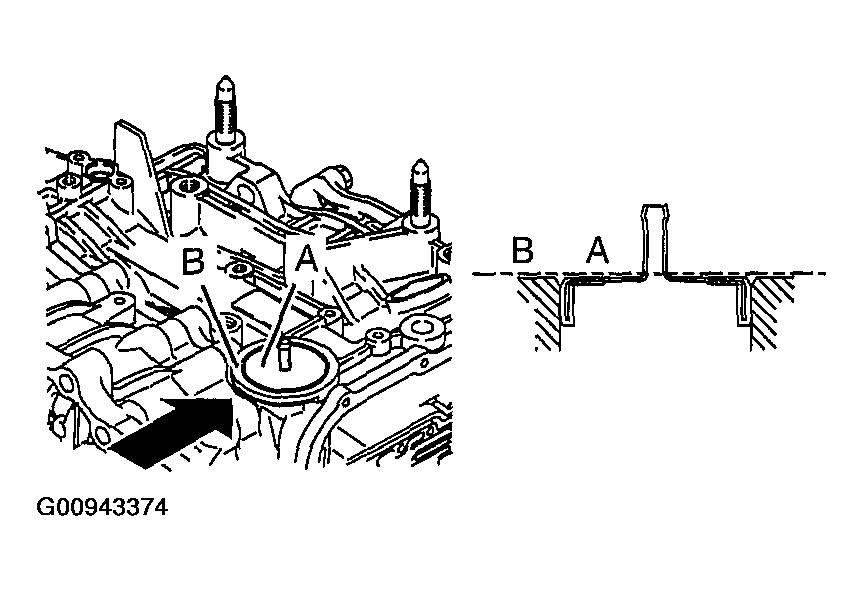

Press Face "A" of the air breather to be even with Face "B" of the transmission case as shown in the drawing.
Apply ATF on the both sides of the new gasket and threads of the eyebolts, and then tighten to the specified torque.
Tightening torque: 24+/-3 N.m (18+/-2 ft-lb)
Tighten the oil cooler feed pipe clamp bolt to the specified torque.
Tightening torque: 11+/-1 N.m (95+/-9 in-lb)

Fig 100: Pressing Face A Of Air Breather And Face B
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the oil dipstick.
Install the cable support brackets to the specified torque.
Tightening torque: 23+/-3 N.m (17+/-2 ft-lb)
Install the roll stopper brackets.
Tightening torque: 70+/-10 N.m (52+/-7 ft-lb)

CAUTION: Apply ATF to the oil pump drive hub before installing the torque converter. Be careful not to damage the oil seal lip when installing the torque converter.
Install the torque converter, and align it with the oil pump so that the shown dimension "A" meets the reference value.

Reference value:

Approximately 12.2 mm (0.48 inch) < F4A4B>

Approximately 9.4 mm (0.37 inch) < F4A5A>

Fig 101: Identifying Dimension A Meets Reference Value

G00943375

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
