Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

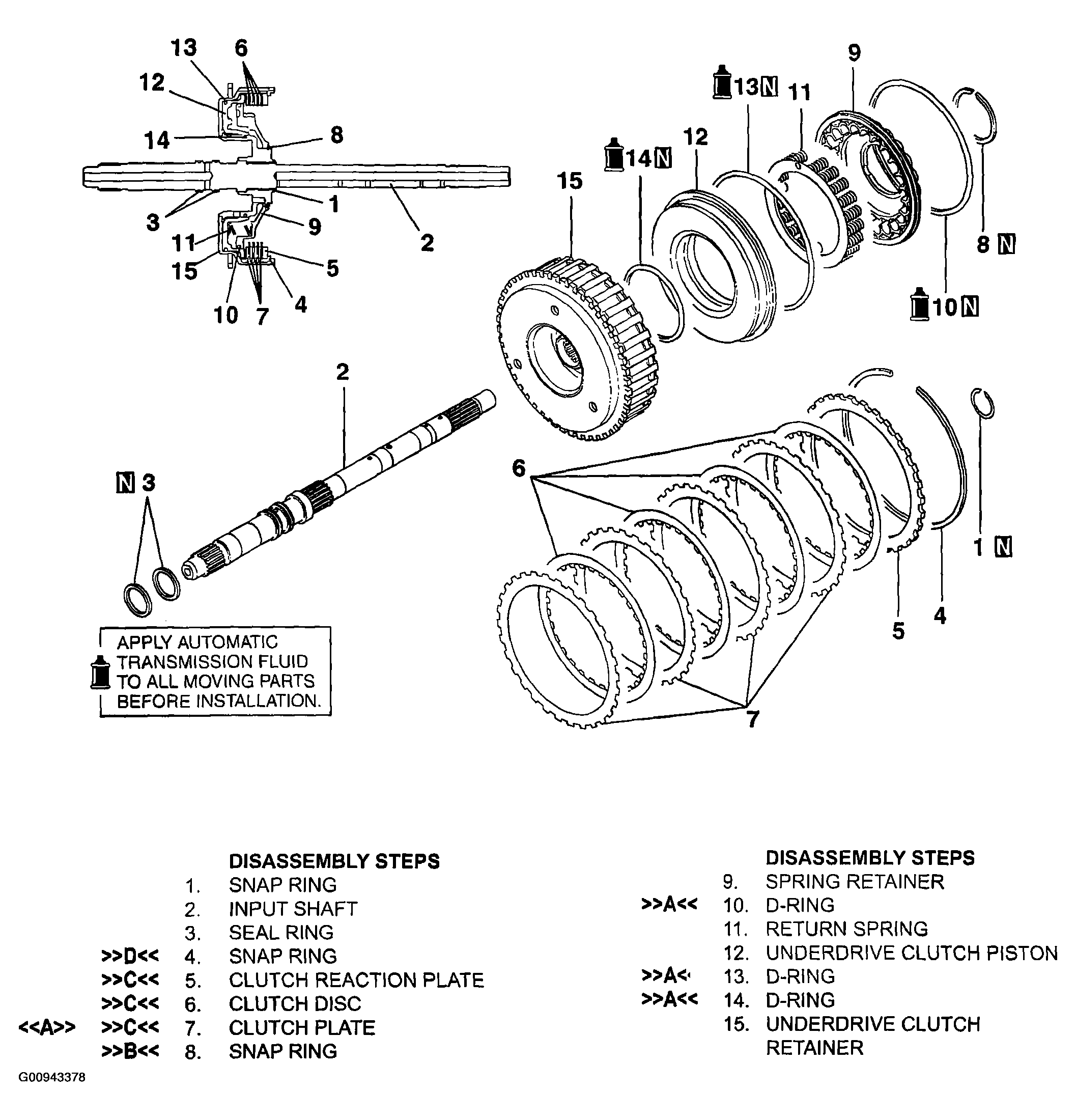

Fig 1: Exploded View Of Underdrive Clutch And Input Shaft Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991628: Spring Compressor
MB991629: Spring Compressor
MD998907: Spring Compressor
MD998924: Spring Compressor Retainer
