>> A << Steering Gear Bushing Installation

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

Use special tools MD999569 and MB990996 to press fit the steering gear bushing. The projections of the bushing should be positioned as illustrated.

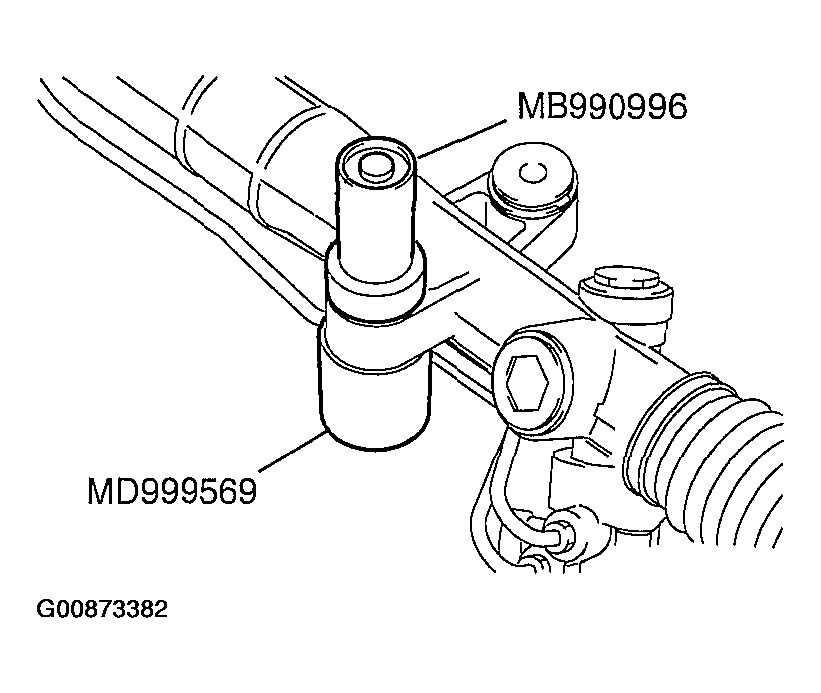

Fig 1: Installing Steering Gear Bushing
G00873382Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

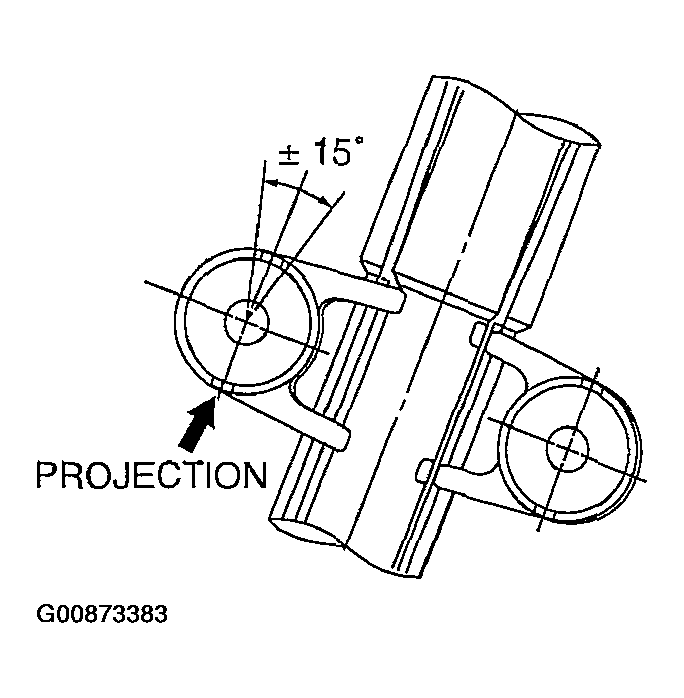

Fig 2: Identifying Steering Gear Bushing Position
G00873383Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
