>> F << Steering Gear Bushing (Rack Bushing) Installation

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not allow oil seal retainer spring to slip out.

Wrap the rack end with vinyl tape, apply a coating of GENUINE MITSUBISHI POWER STEERING FLUID, and then install the rack bushing and rack stopper.

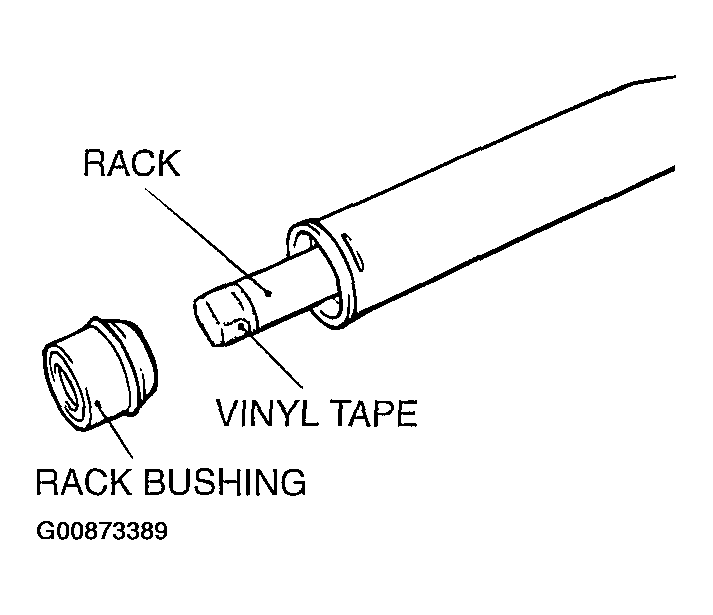

Fig 1: Installing Rack Bushing And Rack Stopper
G00873389Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
