>> K << Steering Gear Plug (End Plug) Installation

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply 3M™ ADD Part number 8661, 8663, 8672, 8678, 8679 or equivalent to the threaded part of the end plug.
  2. Secure the threaded portion of the end plug at two places by using a punch.

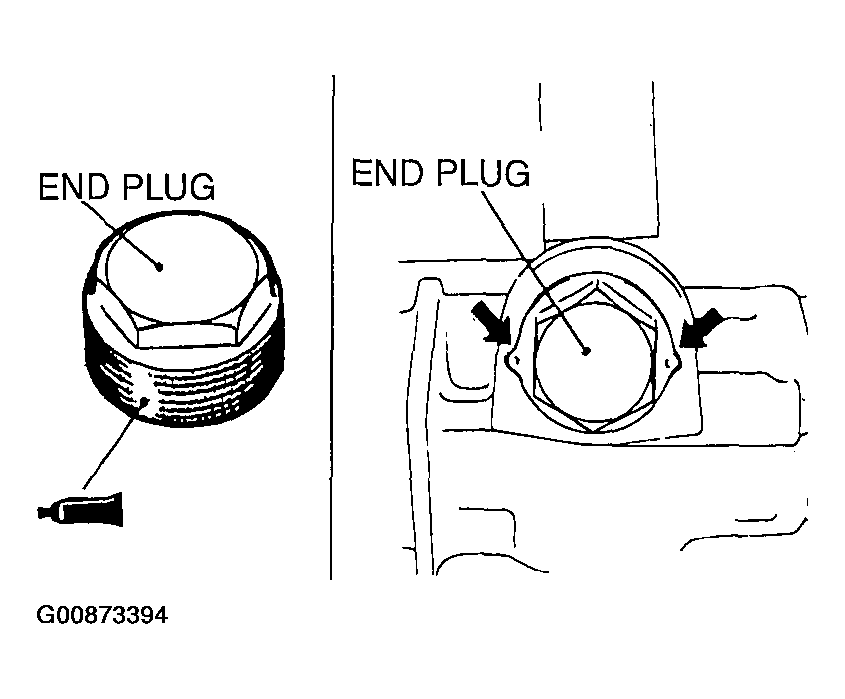

    Fig 1: Applying Sealant Application To Threaded Part Of End Plug
    G00873394Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
