Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Before removing the steering wheel, air bag module assembly and clock spring refer to AIR BAG SAFETY PRECAUTIONS and REMOVAL & INSTALLATION .
When removing and installing the steering wheel, do not let it bump against the air bag module.

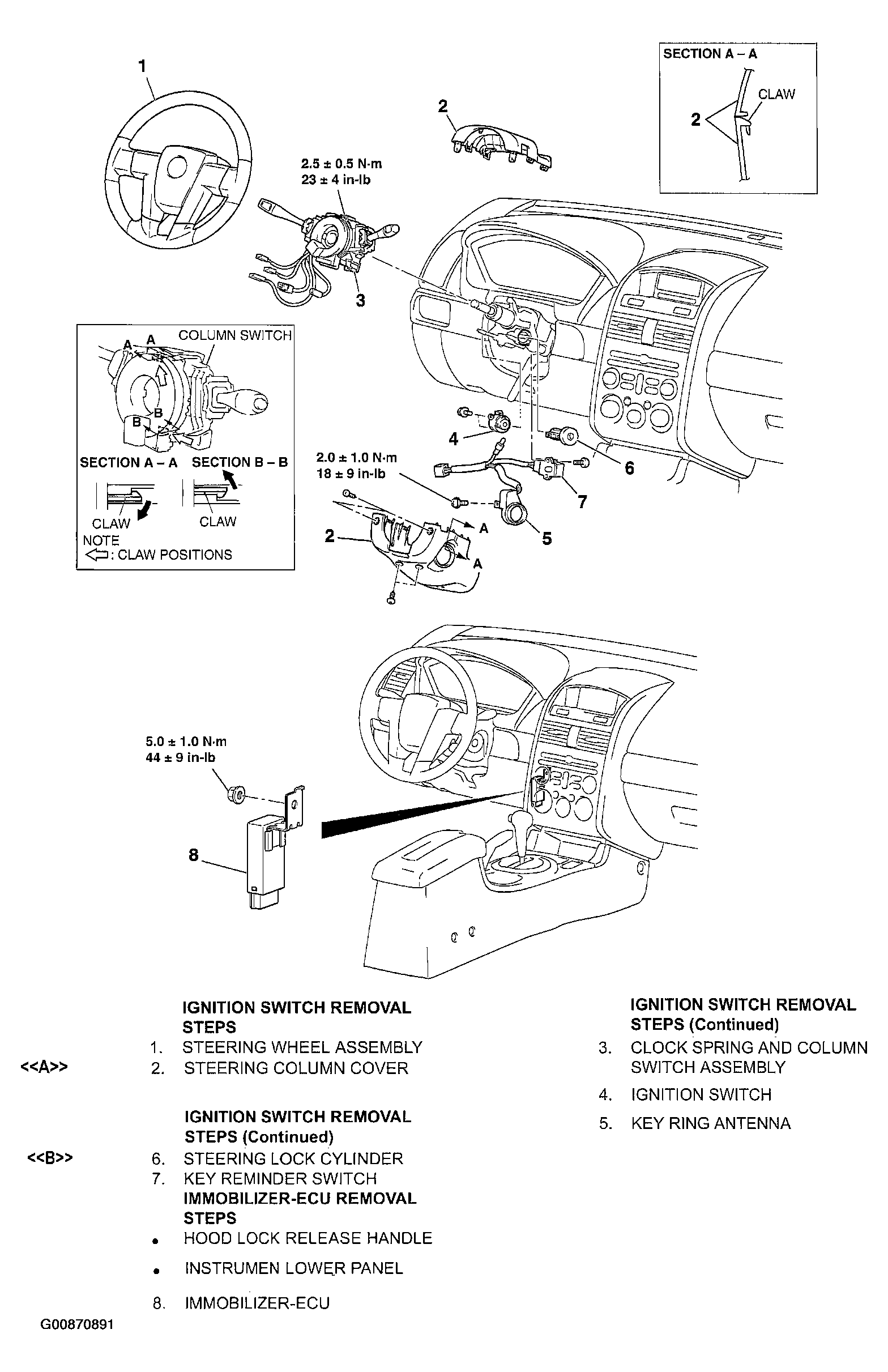

Fig 1: Removing And Installing Ignition Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
