Symptom Chart

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: During diagnosis, a DTC code associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTC code(s). If DTC code(s) are set, erase them all.

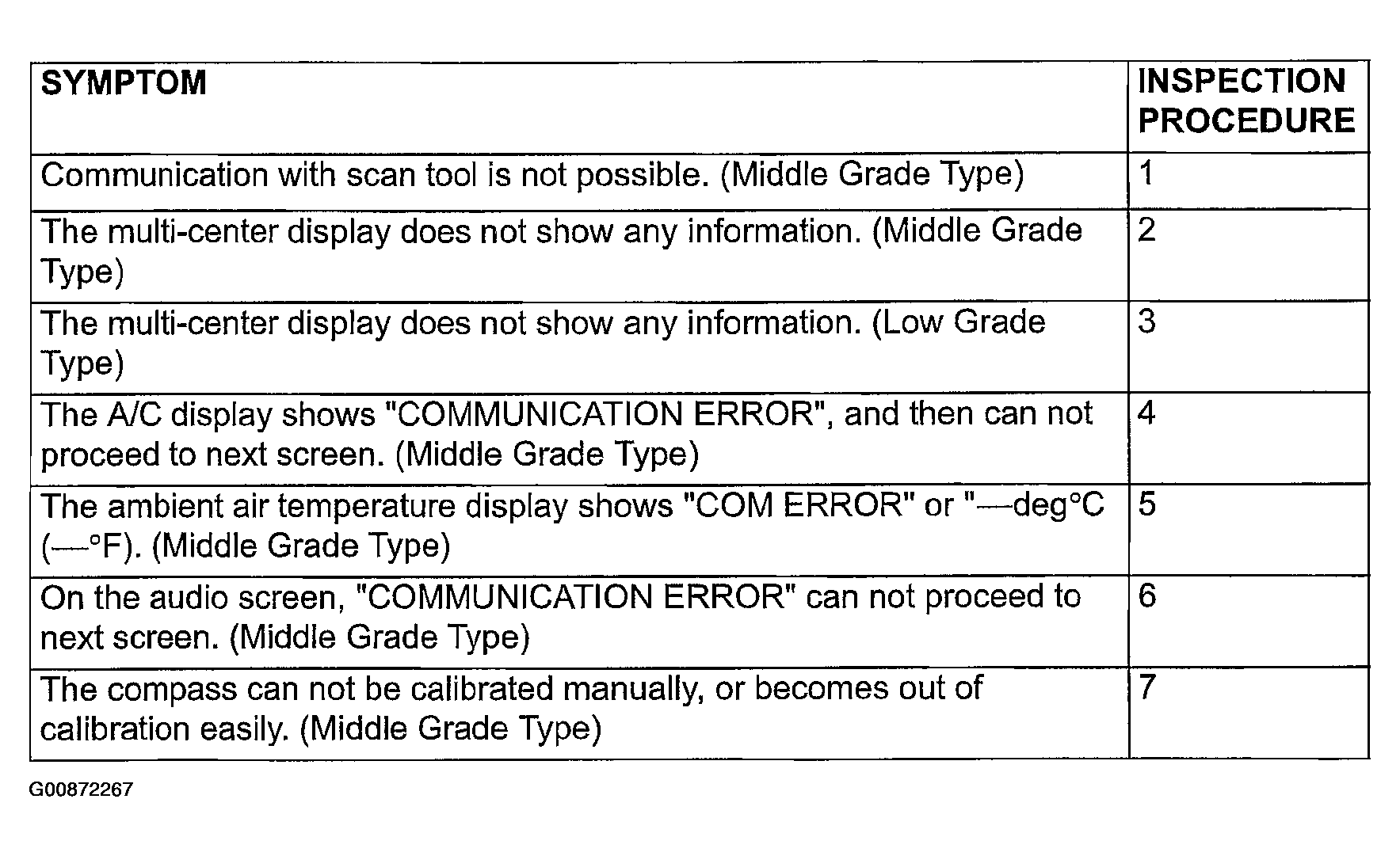

Fig 1: Multi-Center Display Symptom Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
