DTC 020: Failures Information On Powertrain Control Module (Related To Engine): Diagnosis

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)
• MB991824: Vehicle Communication Interface (V.C.I.)
• MB991827: MUT-III USB Cable
• MB991911: MUT-III Main Harness A (Vehicles with CAN communication system)

1. STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

   Use scan tool MB991958 to diagnose the CAN bus lines.

   1. Connect scan tool MB991958 to the data link connector.
   2. Turn the ignition switch to "ON" position.
   3. Diagnose the CAN bus line.

   Q: Is the check result satisfactory?

   1. YES:  Go to Step 2.
   2. NO:  Repair the CAN bus lines (Refer to DIAGNOSIS ). On completion, go to Step  6.

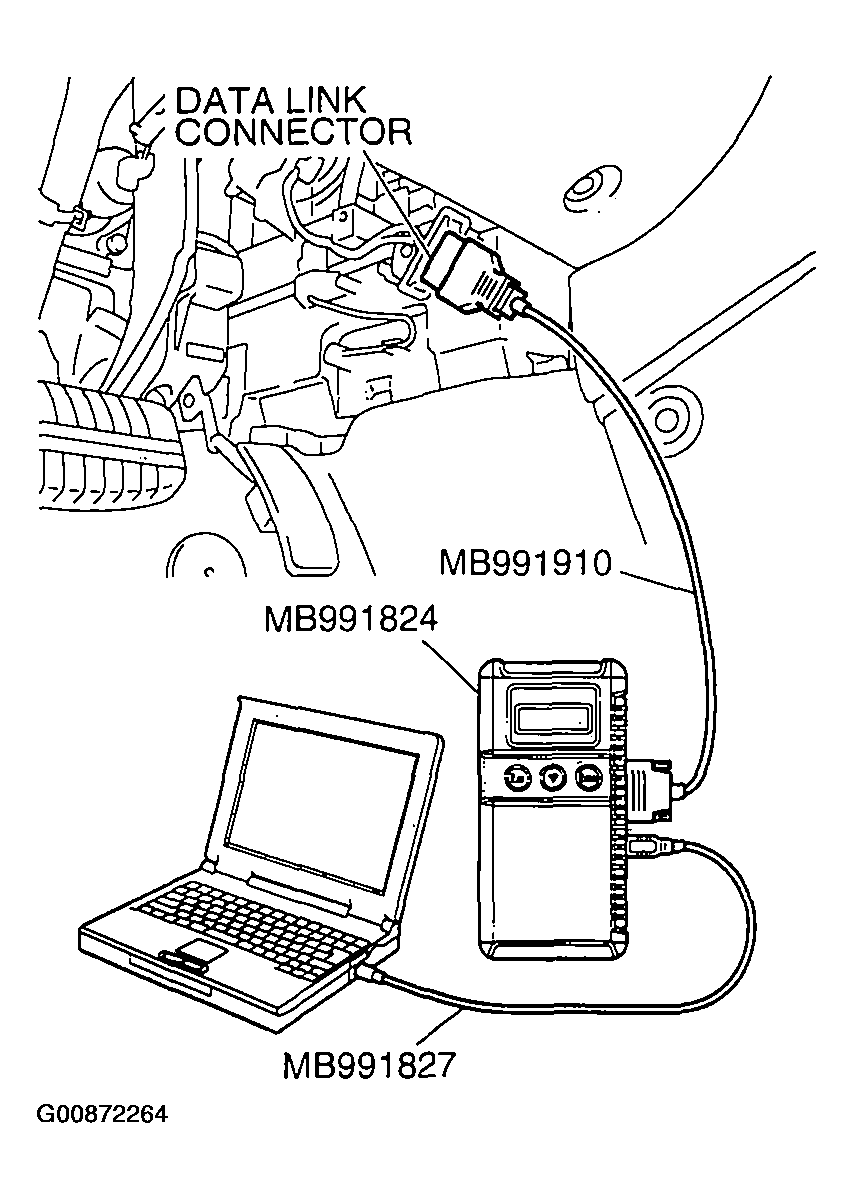

      Fig 1: Connecting Scan Tool To Data Link Connector

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. STEP 2. Using scan tool MB991958, read MFI system diagnostic trouble code

   Check if an MFI system DTC is set.

   Q: Is the DTC set?

   1. YES:  Diagnose the MFI system by referring to DIAGNOSTIC TROUBLE CODE CHART or DIAGNOSTIC TROUBLE CODE CHART .
   2. NO:  Go to Step 3.
3. STEP 3. Using scan tool MB991958, read the diagnostic trouble code related to the other system.

   Check if a DTC, which relates to CAN communication-linked systems below, is set.

   ABS-ECU

   • DTC U1120: failure information on Powertrain control module (related to Engine) < vehicles with TCL >

     Combination meter

   • DTC U020: failure information on Powertrain control module (related to Engine)

     A/C-ECU

   • DTC U1120: failure information on Power train control module (related to Engine)

   Q: Is the DTC set?

   1. YES:  Go to Step 4.
   2. NO:  Go to  Step 5.
4. STEP 4. Recheck for diagnostic trouble code.

   Recheck if the DTC is set.

   1. Erase the DTC.
   2. Turn the ignition switch to "ON" position.
   3. Check if the DTC is set.

   Q: Is the check result satisfactory?

   1. YES  : A poor connection, open circuit or other intermittent malfunction is present in the lines between the powertrain control module and the multi-center display unit (middle grade type) (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS ).
   2. NO  : Replace powertrain control module and then go to  step 6.
5. STEP 5. Recheck for diagnostic trouble code.

   Recheck if the DTC is set.

   1. Erase the DTC.
   2. Turn the ignition switch to "ON" position.
   3. Check if the DTC is set.

   Q: Is the check result satisfactory?

   1. YES  : A poor connection, open circuit or other intermittent malfunction is present in the lines between the powertrain control module and the multi-center display unit (middle grade type) (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS ).
   2. NO  : Replace multi-center display unit (middle grade type) and then go to step 6.
6. STEP 6. Recheck for diagnostic trouble code.

Recheck if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.

Q: Is the check result satisfactory?

1. YES  : The procedure is complete.
2. NO  : Go to Step  1.
