WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

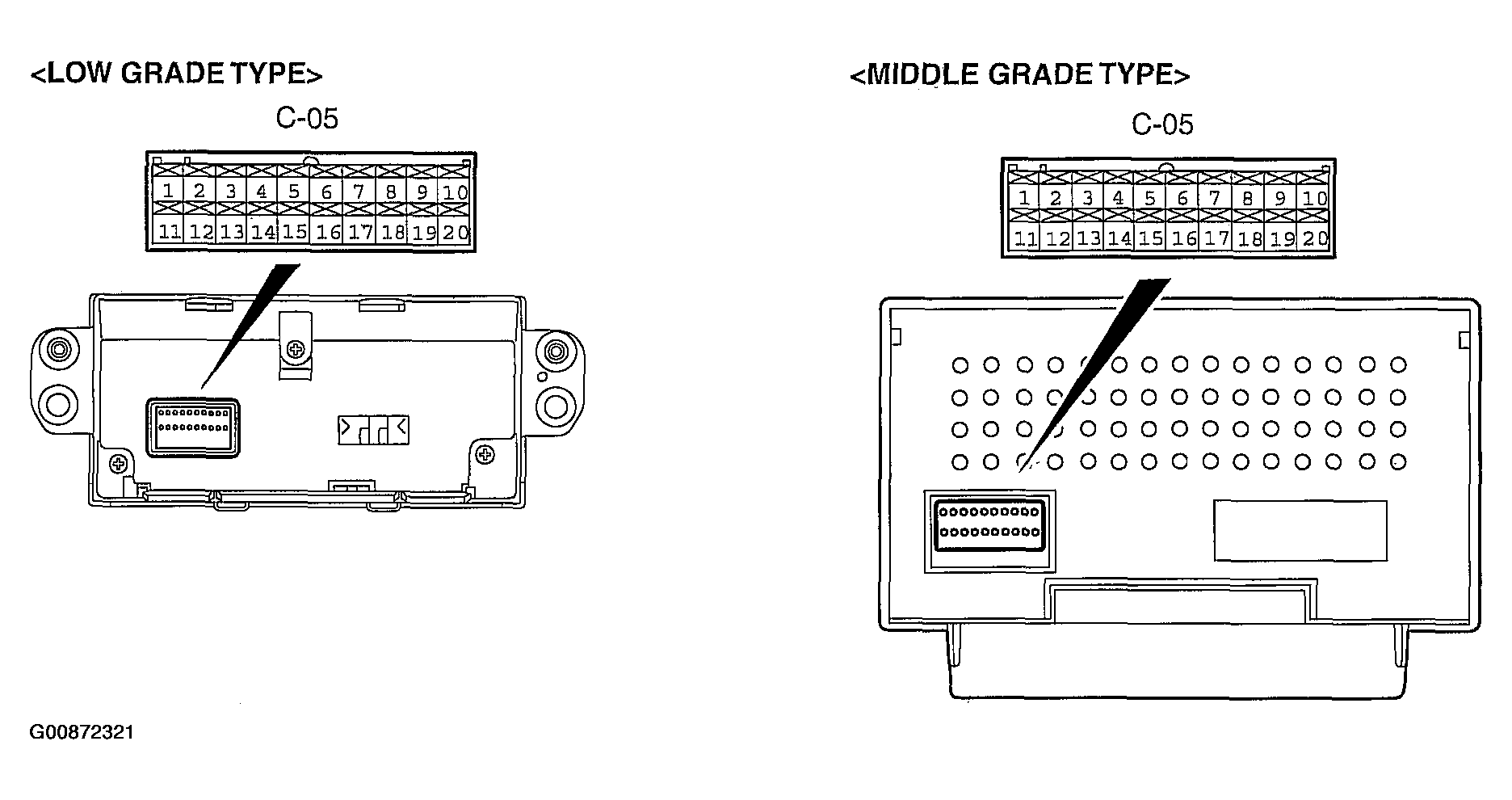

Fig 1: Checking At Multi Center Display Unit Terminal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

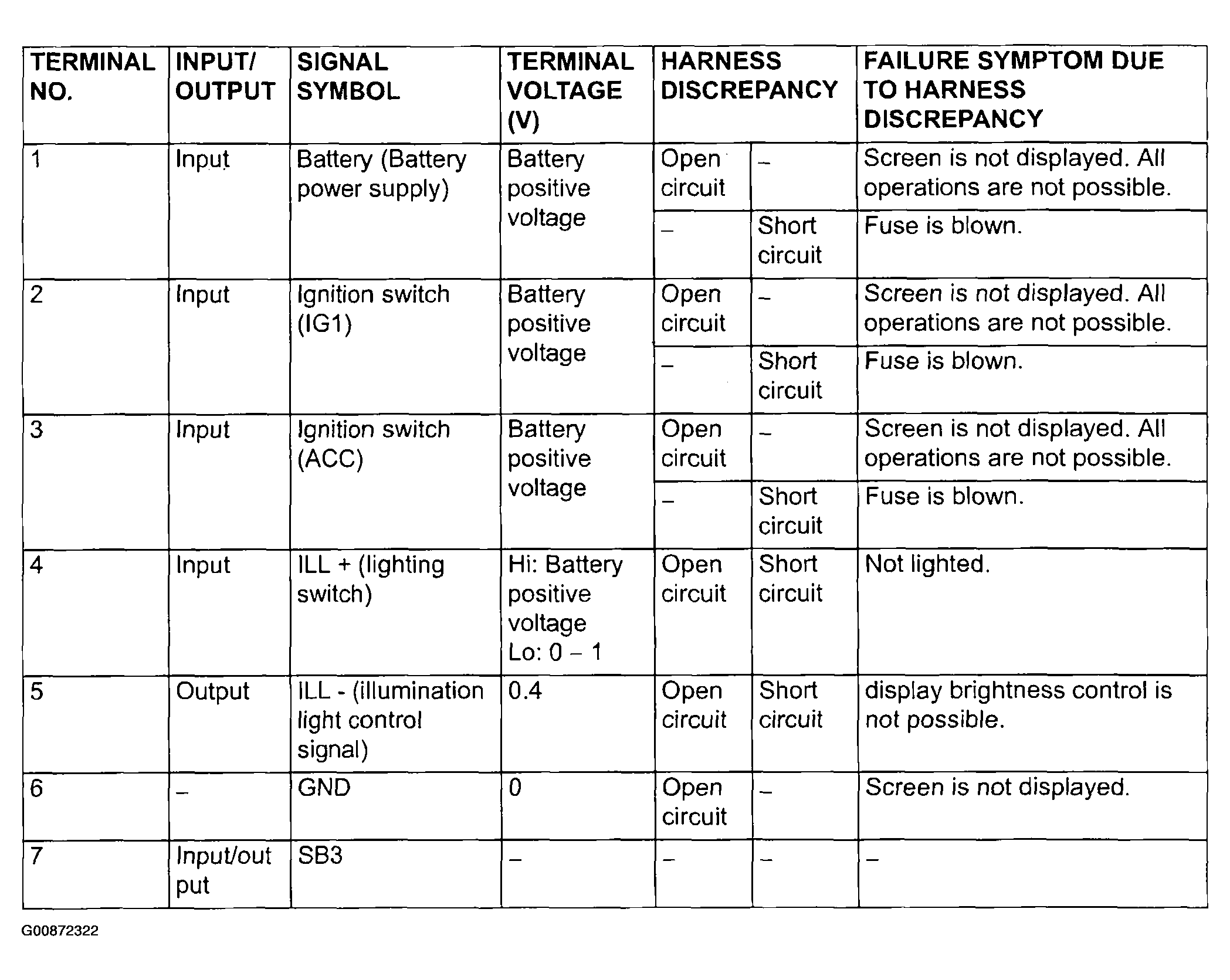

Fig 2: Multi Center Display Unit Terminal Chart (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

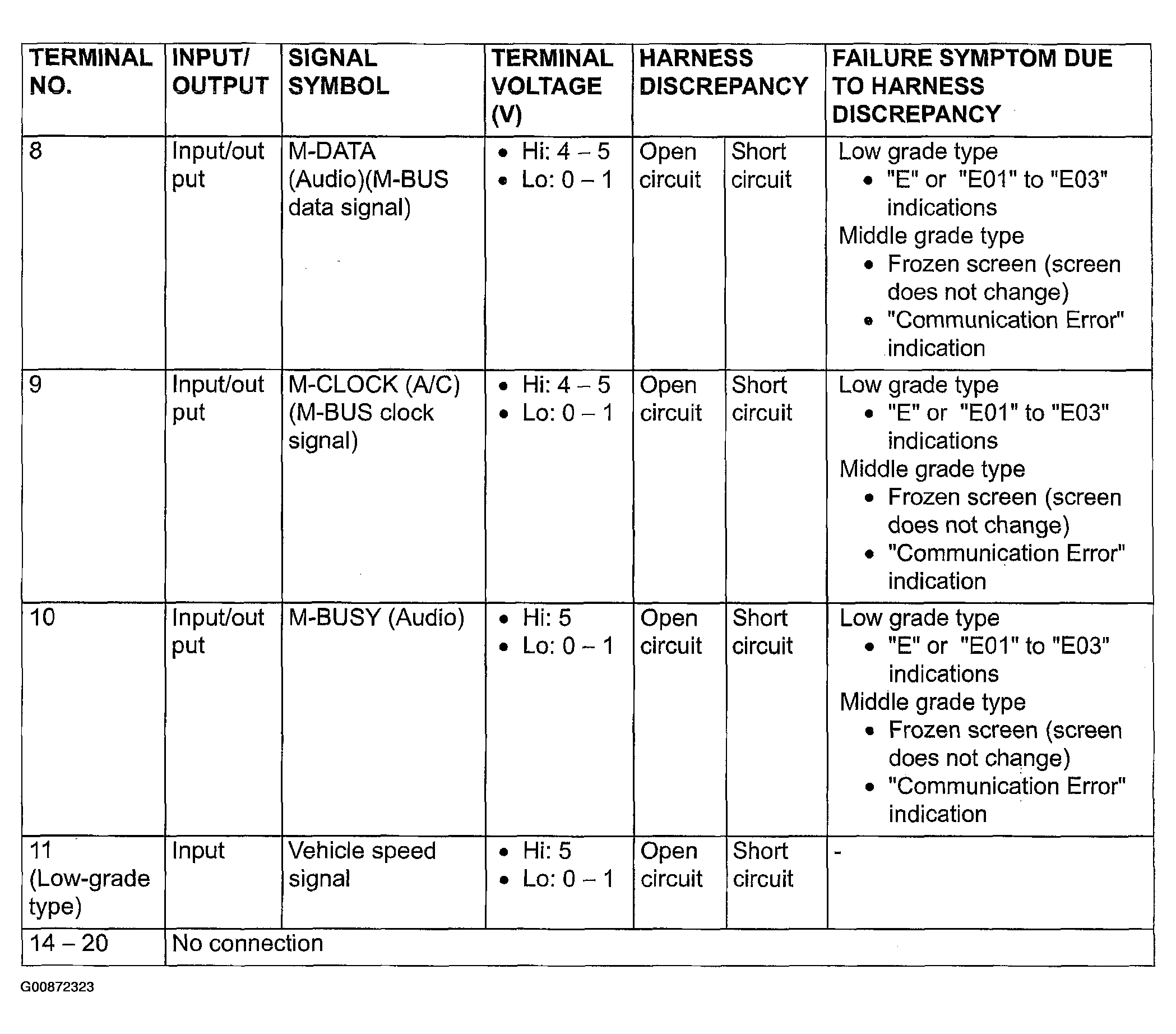

Fig 3: Multi Center Display Unit Terminal Chart (2 Of 2)
