Can Communication Signal Table

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

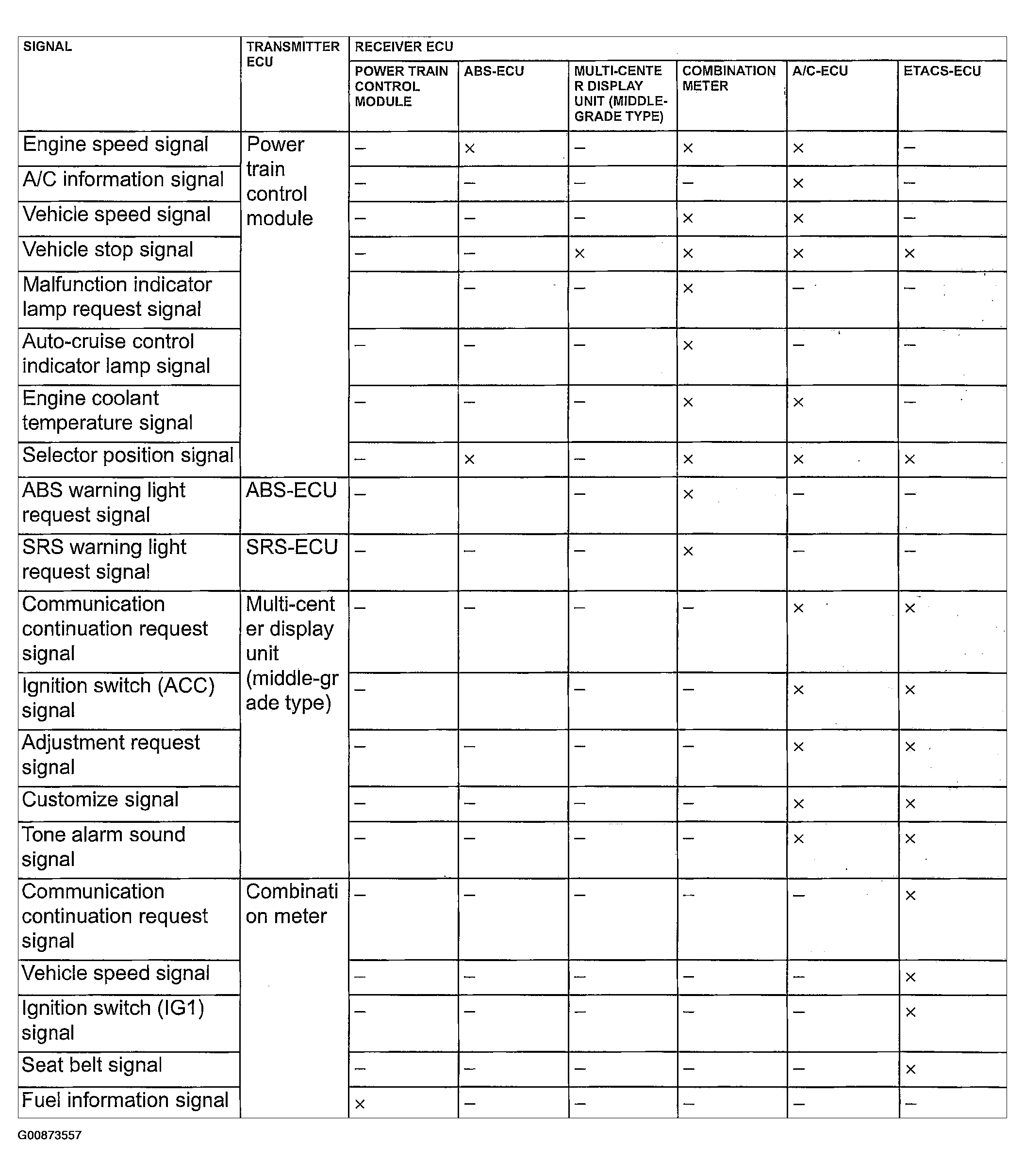

Fig 1: Can Communication Signal Table (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

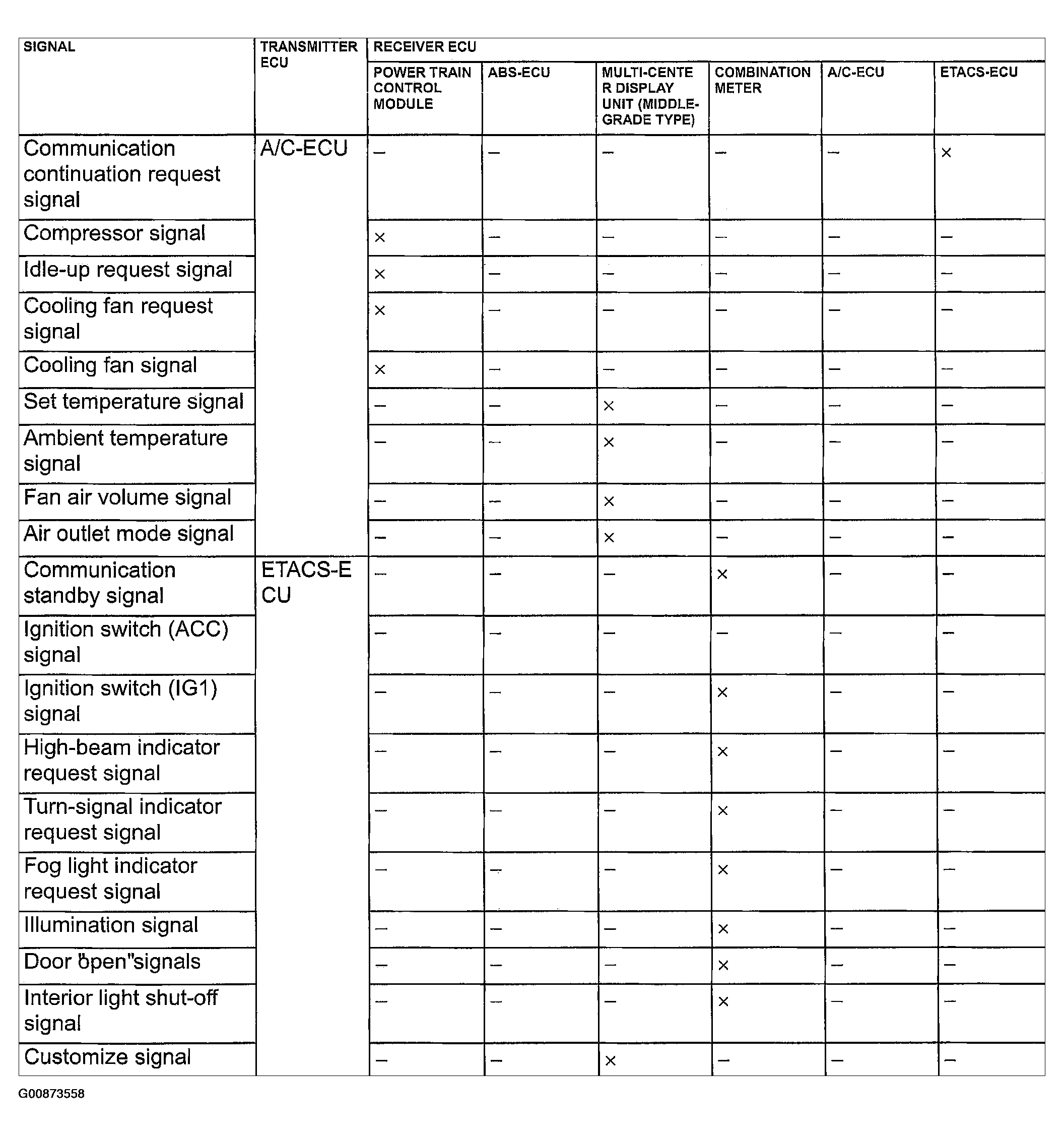

Fig 2: Can Communication Signal Table (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
