Diagnostic Item 12: Diagnose A Terminator Resistor At Either End < Vehicles Without Abs>: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

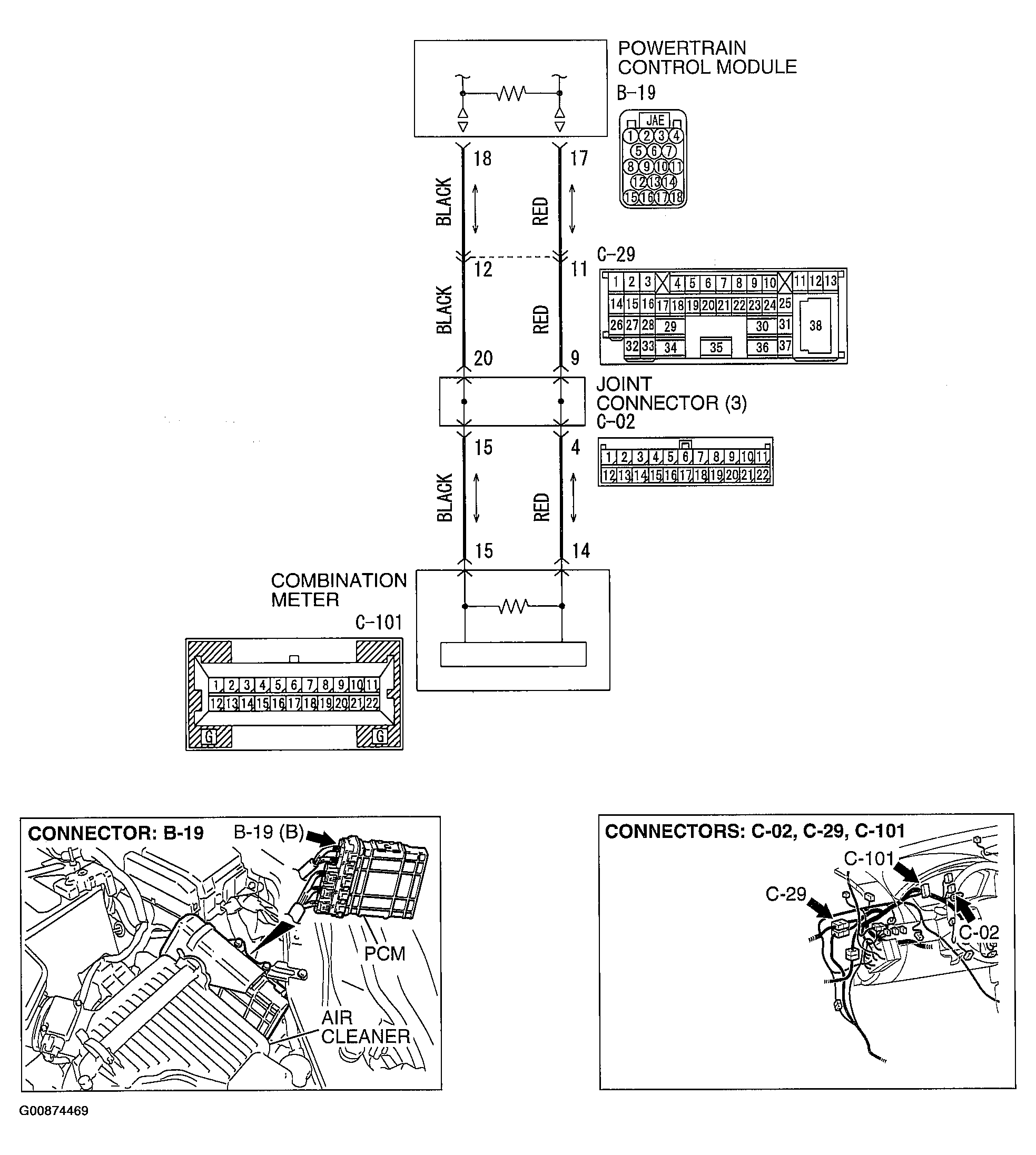

Fig 1: View Of CAN Bus Line (Vehicles Without ABS) Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
