Diagnostic Item 24: Failure In The Lines Between Can Main Bus Line And The Combination Meter: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

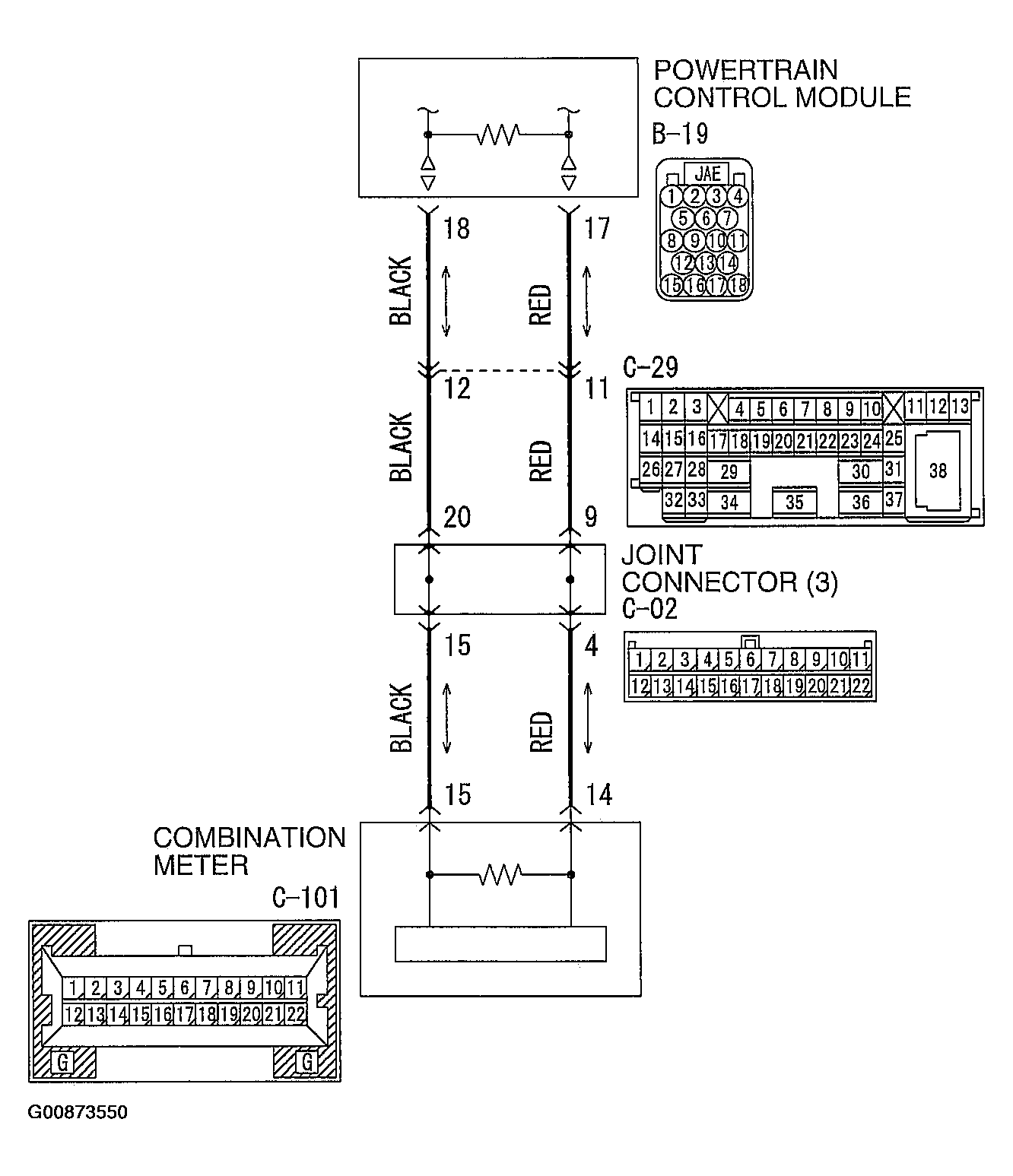

Fig 1: View Of CAN bus line (Without Electronic Brake-Force Distribution (EBD) And Anti-Lock Braking System) Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

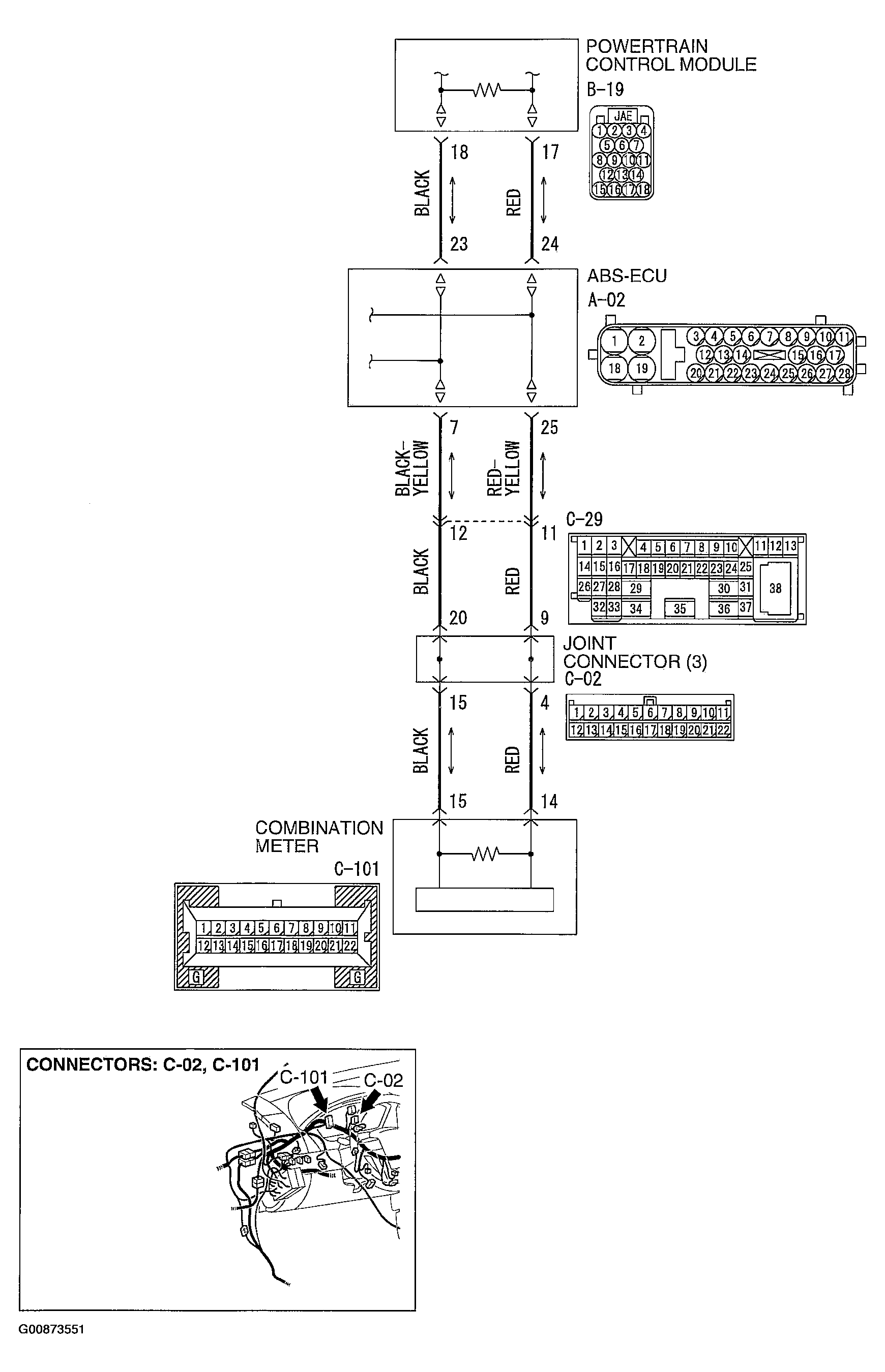

Fig 2: View Of CAN bus line (With Electronic Brake-Force Distribution (EBD) And Anti-Lock Braking System) Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
