Inspection Procedure 1: The System Does Not Accept Remote Controlled Radio Switches (RH And LH), But Accepts Radio And Cd Player Switches.: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

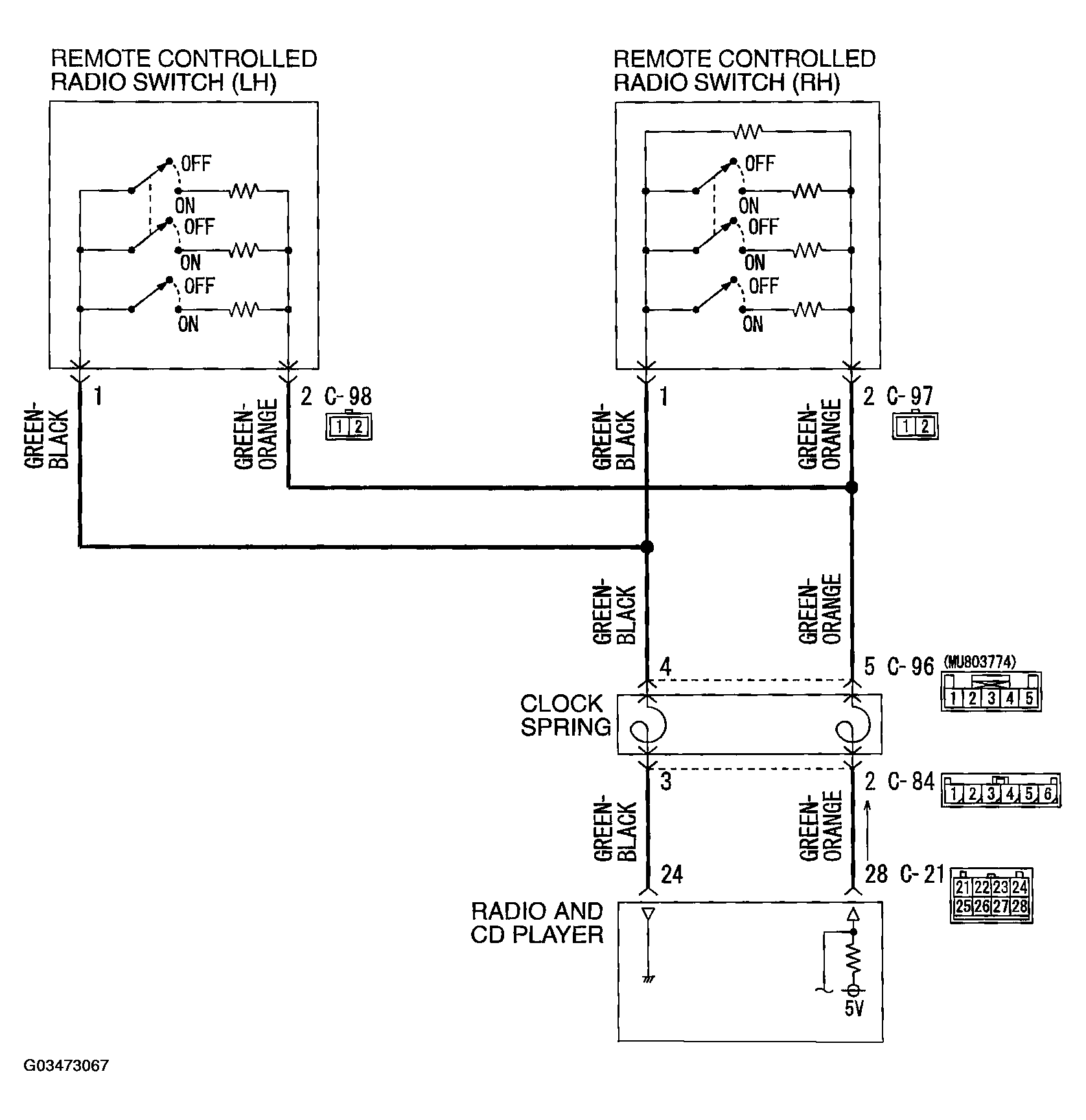

Fig 1: View Of Remote Controlled Radio Switch Circuit
G03473067Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
