Remote Controlled Radio Switch Continuity Check
WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

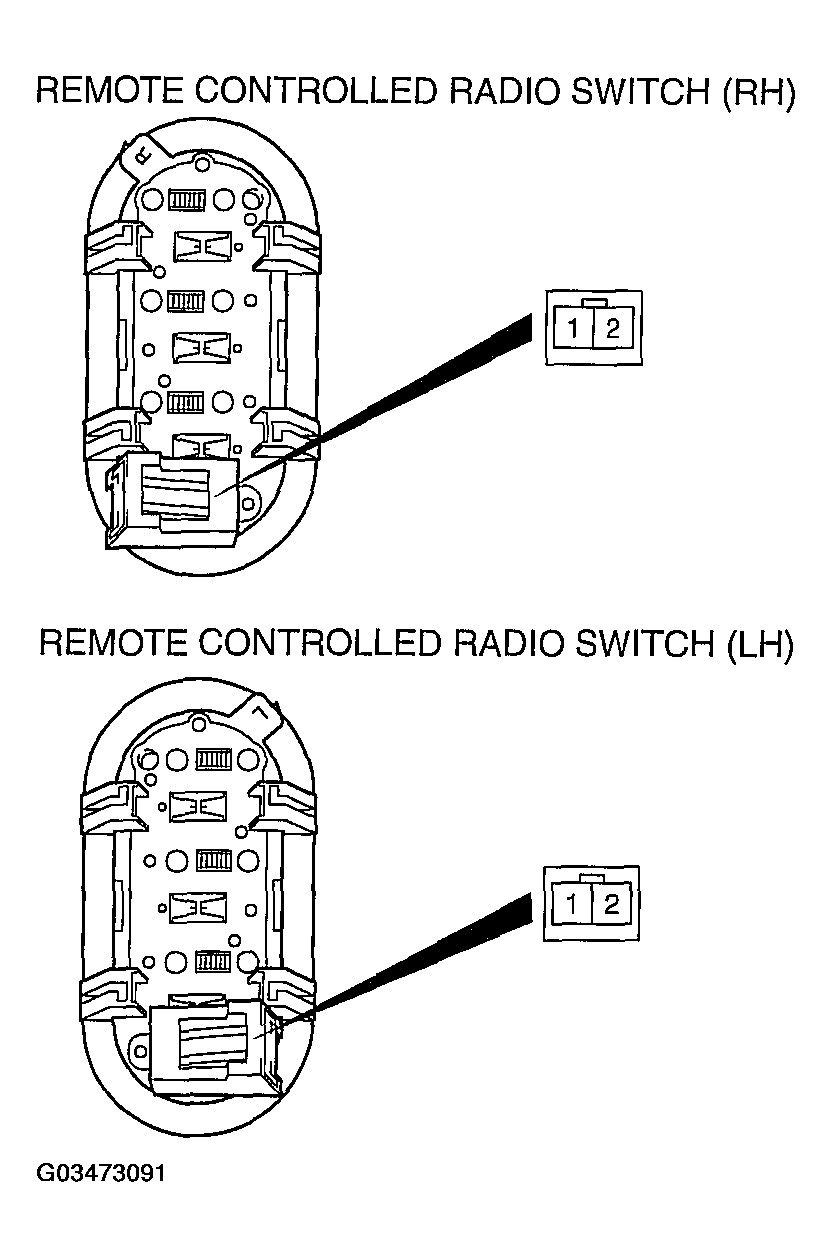

REMOTE CONTROLLED RADIO SWITCH CONTINUITY
| SWITCH POSITION |
MEASUREMENT VALUE (RH) |
MEASUREMENT VALUE (LH) |
| No push |
24 k |
Open circuit |
| Upper |
6.8 k |
1.2 k |
| Center |
0 |
470 |
| Lower |
15.0 k |
3.3 k |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
