Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before removing the air bag module, refer to AIR BAG SAFETY PRECAUTIONS ,DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING and PASSENGER-SIDE AIR BAG MODULE .
WARNING: When removing and installing the steering wheel, do not let it bump against the air bag module.

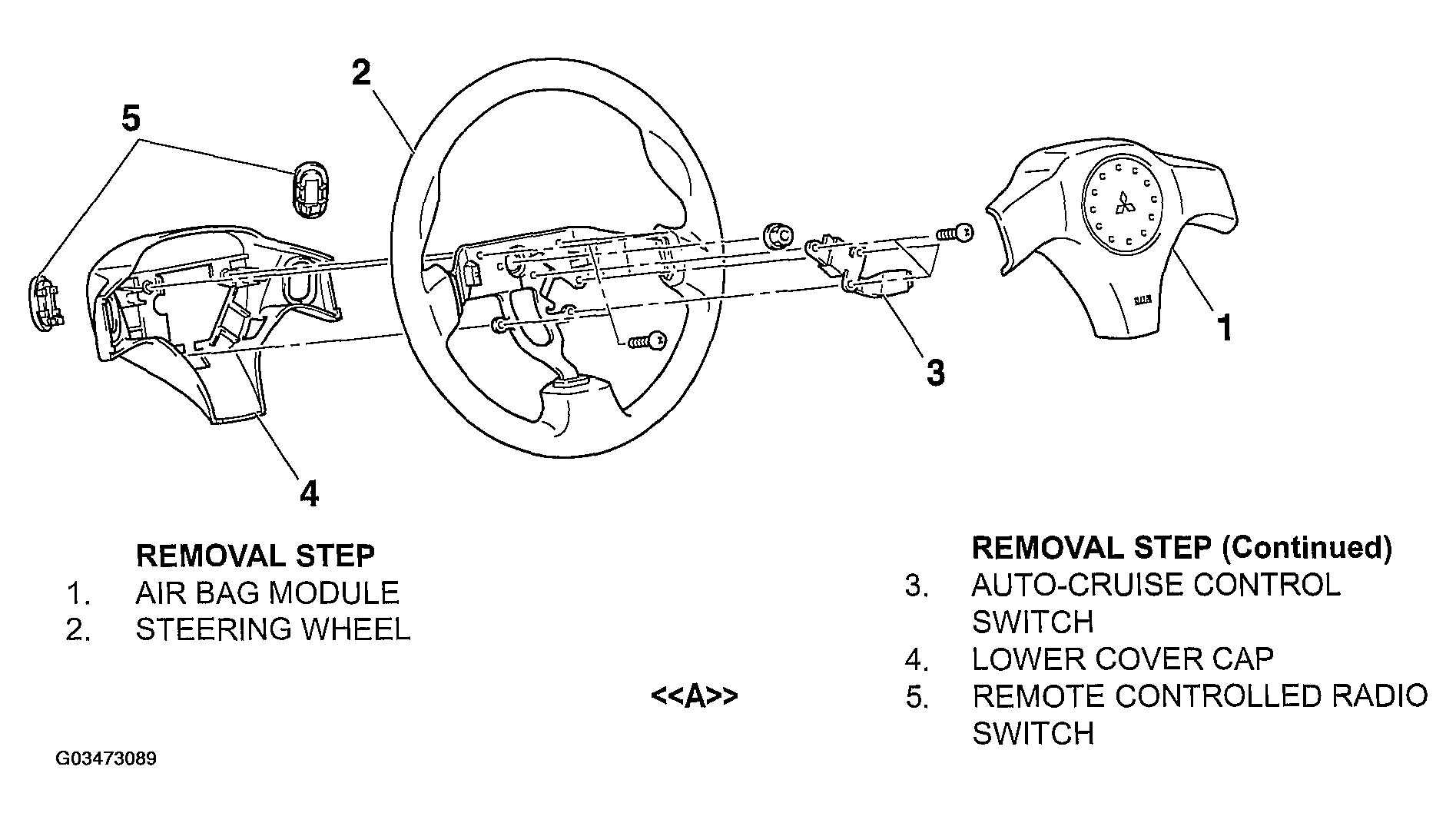

Fig 1: Removing And Installing Remote Controlled Radio Switch
G03473089Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
