Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to On-Vehicle Service under AIR BAG RESTRAINT SYSTEMS .)

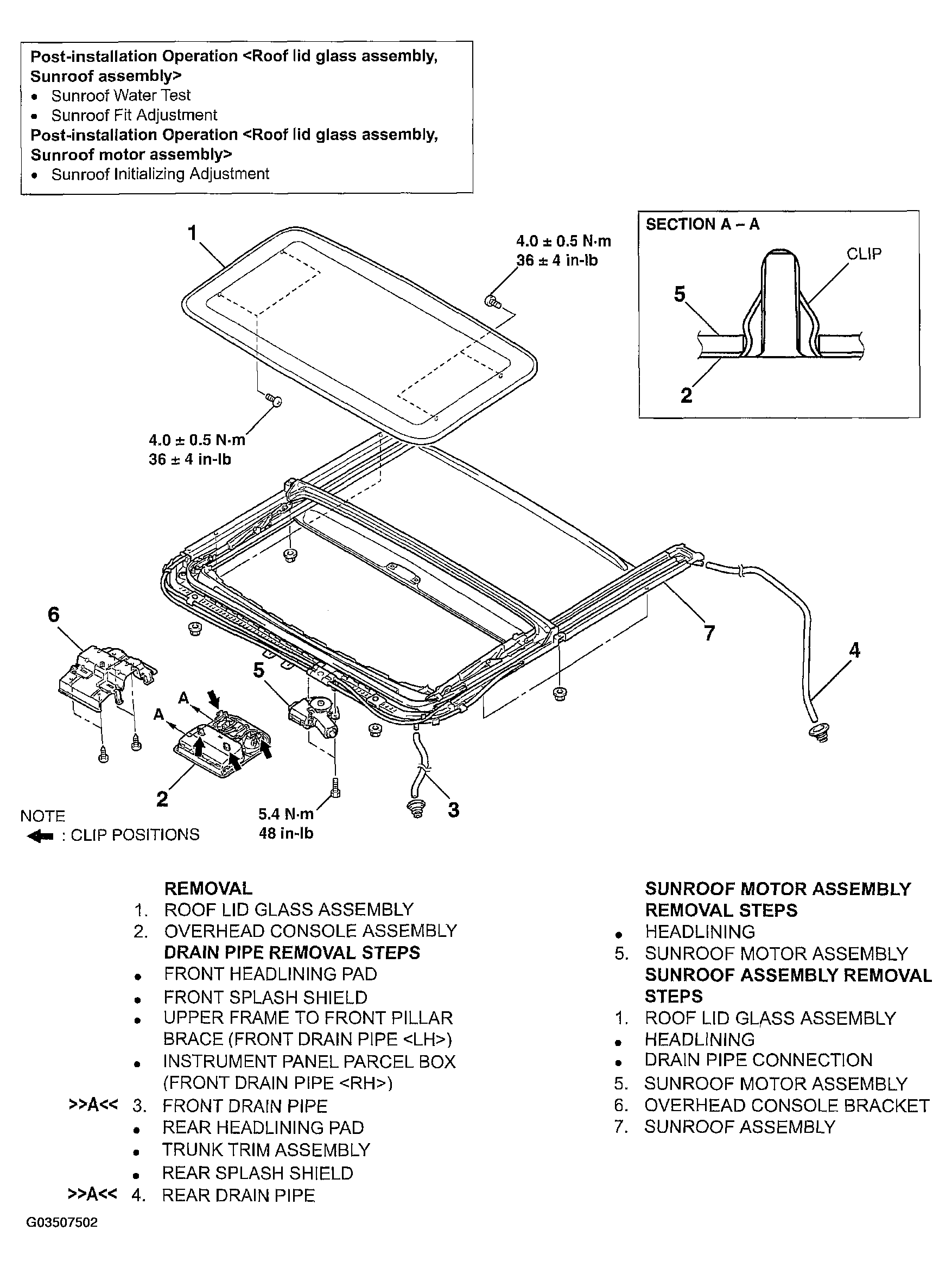

Fig 1: Removing And Installing Sunroof Assembly
G03507502Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
