Interior Light Control Function

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

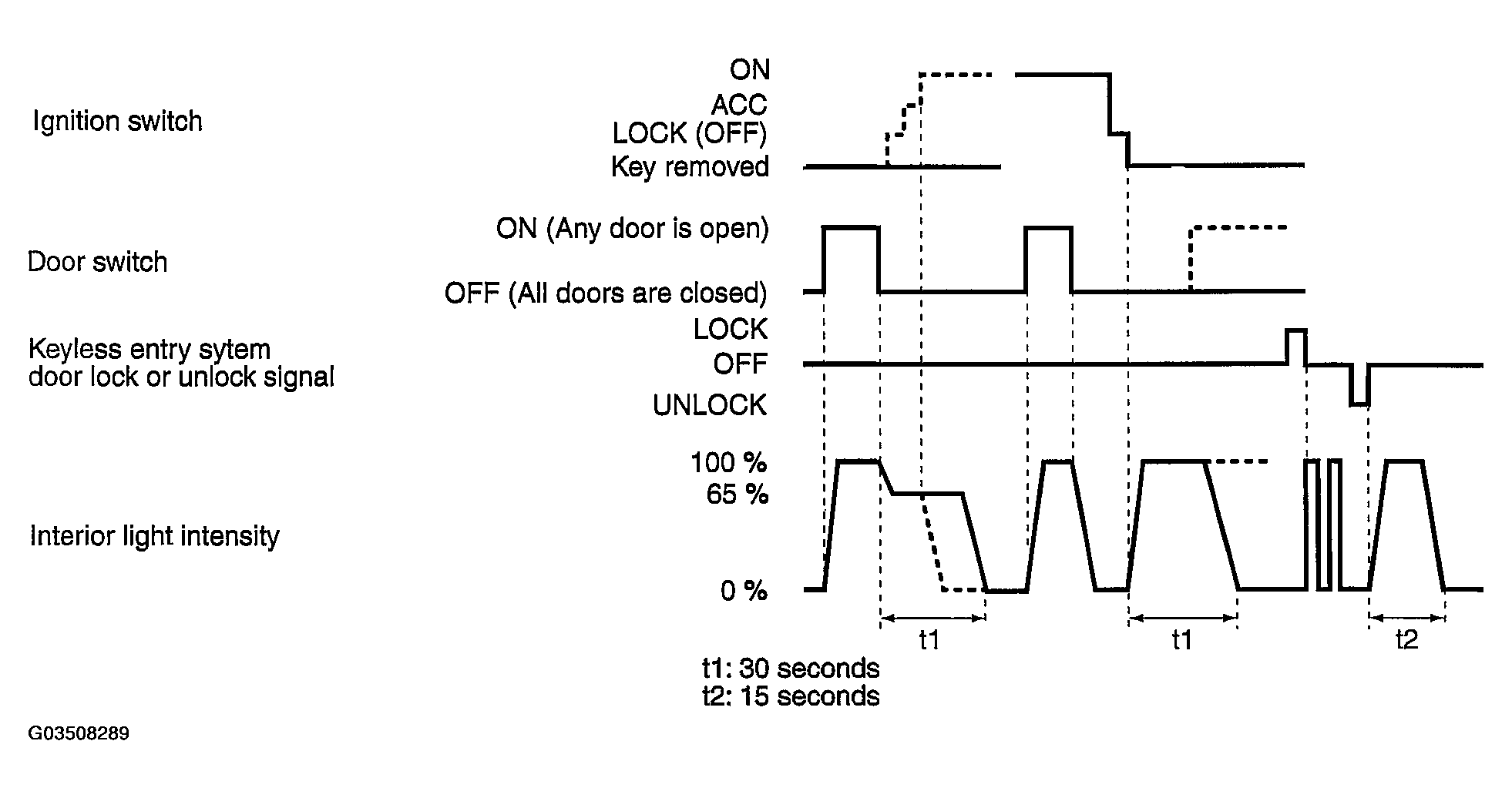

Fig 1: View Of Interior Light Control Function Waveform

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The ETACS-ECU controls the interior lights by turning them on and off in the following way:

When a door is opened with the ignition switch off, the interior lights up to a luminance of 100 percent. When a door is closed, the interior lights dims at a luminance of 65 percent, and goes off 30 seconds later. However if the ignition switch is turned ON or if a door is locked while the interior lights is dimming, the dome light will go off at that point.
When a door is opened with the ignition switch ON, the interior lights up at a luminance of 100 percent. When a door is closed, the interior lights go off.
When the ignition key is removed with all doors closed, the interior lights up at a luminance of 100 percent, and goes off 30 seconds later. However if the ignition key is inserted again or if a door is locked while the interior lights is lighting, the interior lights will go off at that point.
To check keyless entry operations more easily, the interior lights is flashed once when the doors are locked. When the doors are unlocked, the interior lights at a luminance of 100 percent, and go off 15 seconds later.

NOTE: The dimmer function can be customized on vehicles equipped with a multi center display (middle grade type). Refer to ON-VEHICLE SERVICE .

NOTE: The dotted lines indicate that lighting mode when the ignition switch is turned ON, door is locked, or any door is opened during the timer illumination time.
