TCL Switch Check

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

Remove the TCL switch. (Refer to TCL SWITCH ).
Measure the resistance between terminal 1 and terminal 2 when the TCL switch is pressed or released. If the values measured at the time correspond to those in the table below, the resistance values are correct.

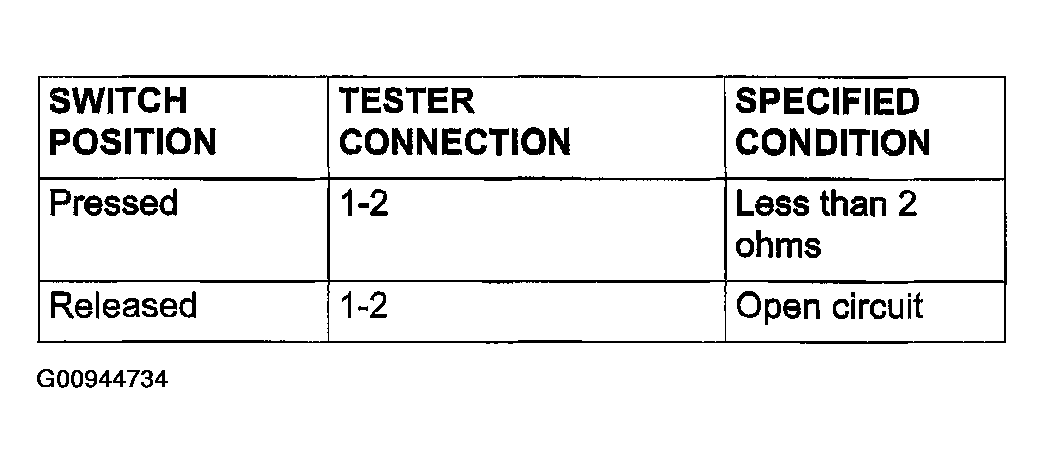

Fig 1: TCL Switch Check Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

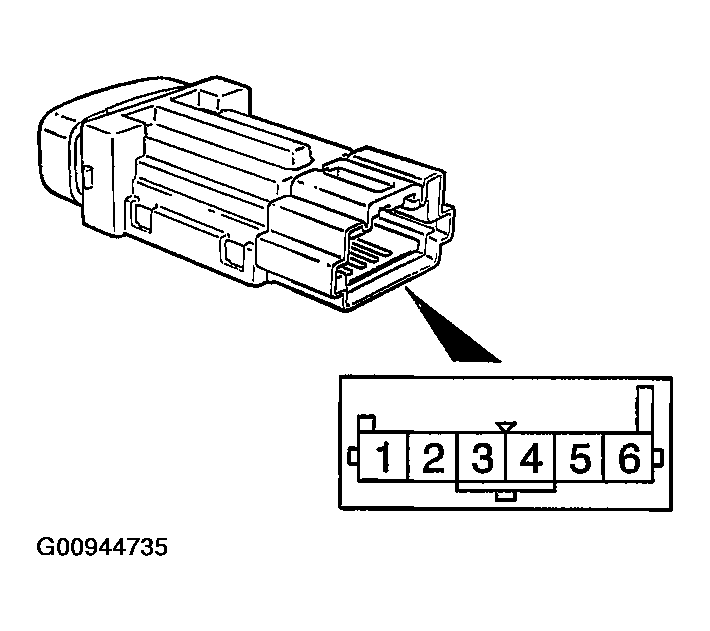

Fig 2: Identifying TCL Switch Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
