How To Perform Actuator Test
WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
Required Special Tools:
- MB991958: Scan tool (MUT-III sub assembly)
- MB991824: V.C.I.
- MB991827: MUT-III USB cable
- MB991910: MUT-III main harness A
CAUTION:
To prevent damage to scan tool, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool.

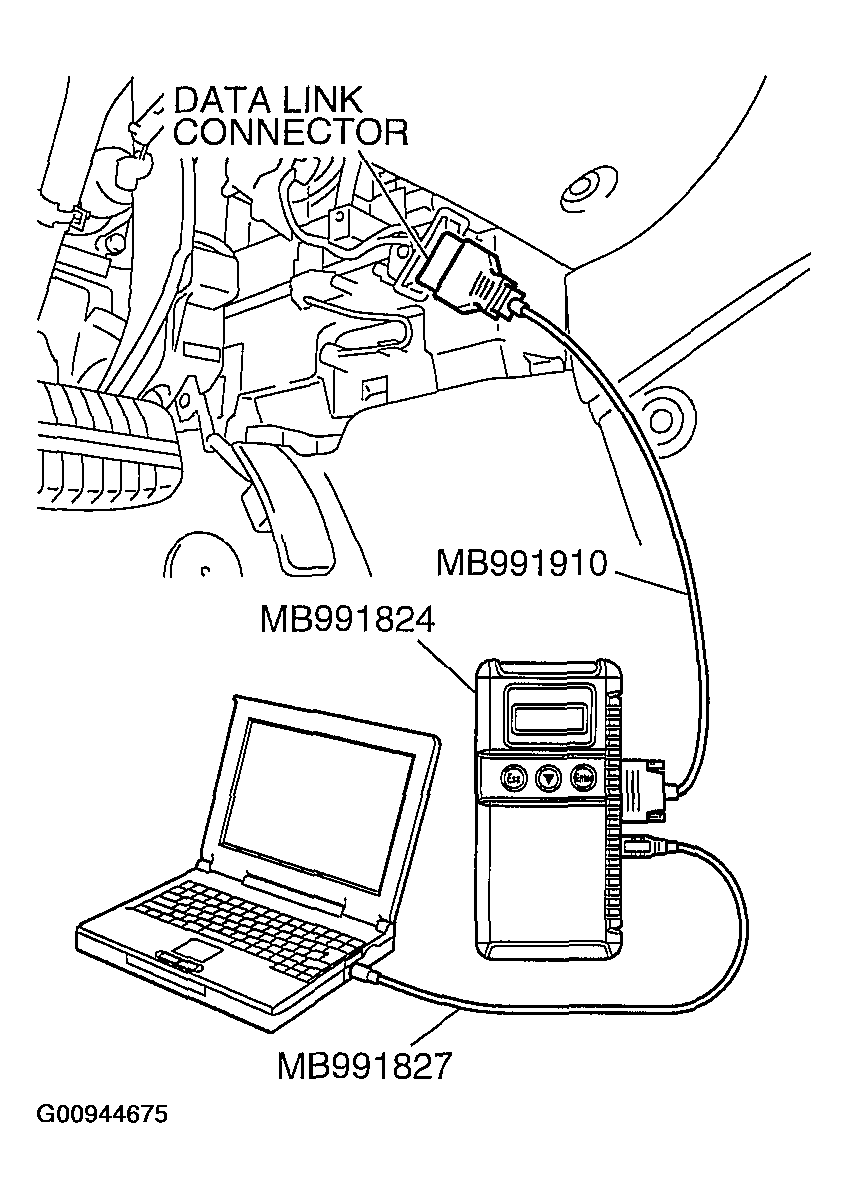

- Connect scan tool to the data link connector.
- Turn the ignition switch to the "ON" position.
- Select "Interactive Diagnosis" from the start-up screen.
- Select "System Select."
- Choose "TCL" from the "POWERTRAIN" tab.
- Choose "Actuator Test" from "TCL" screen.
- Choose an appropriate item.
