Diagnostic Trouble Code Chart
WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
During diagnosis, a DTC code associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTC code(s). If DTC code(s) are set, erase them all.
Follow the inspection chart that is appropriate for the diagnostic trouble code.

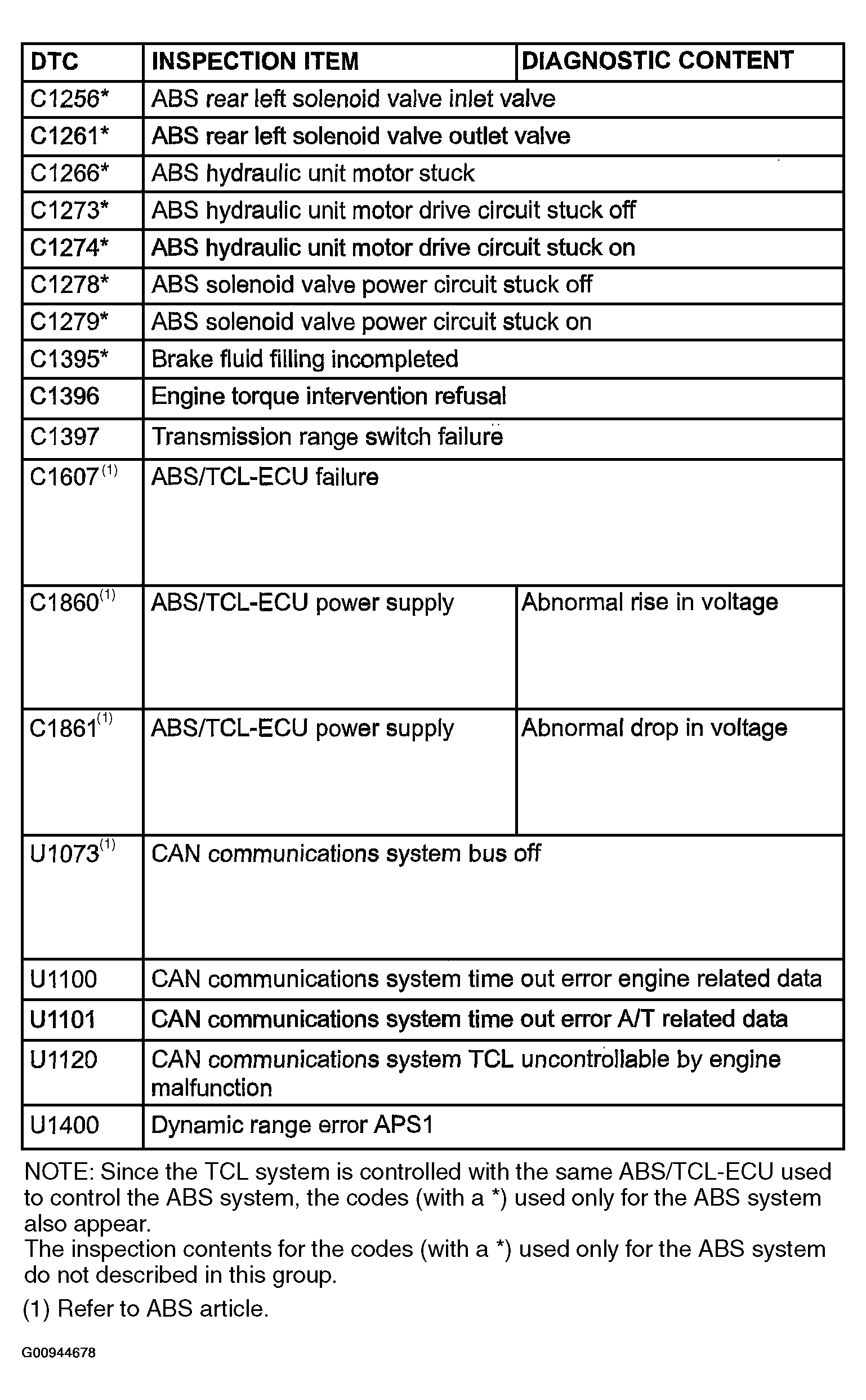

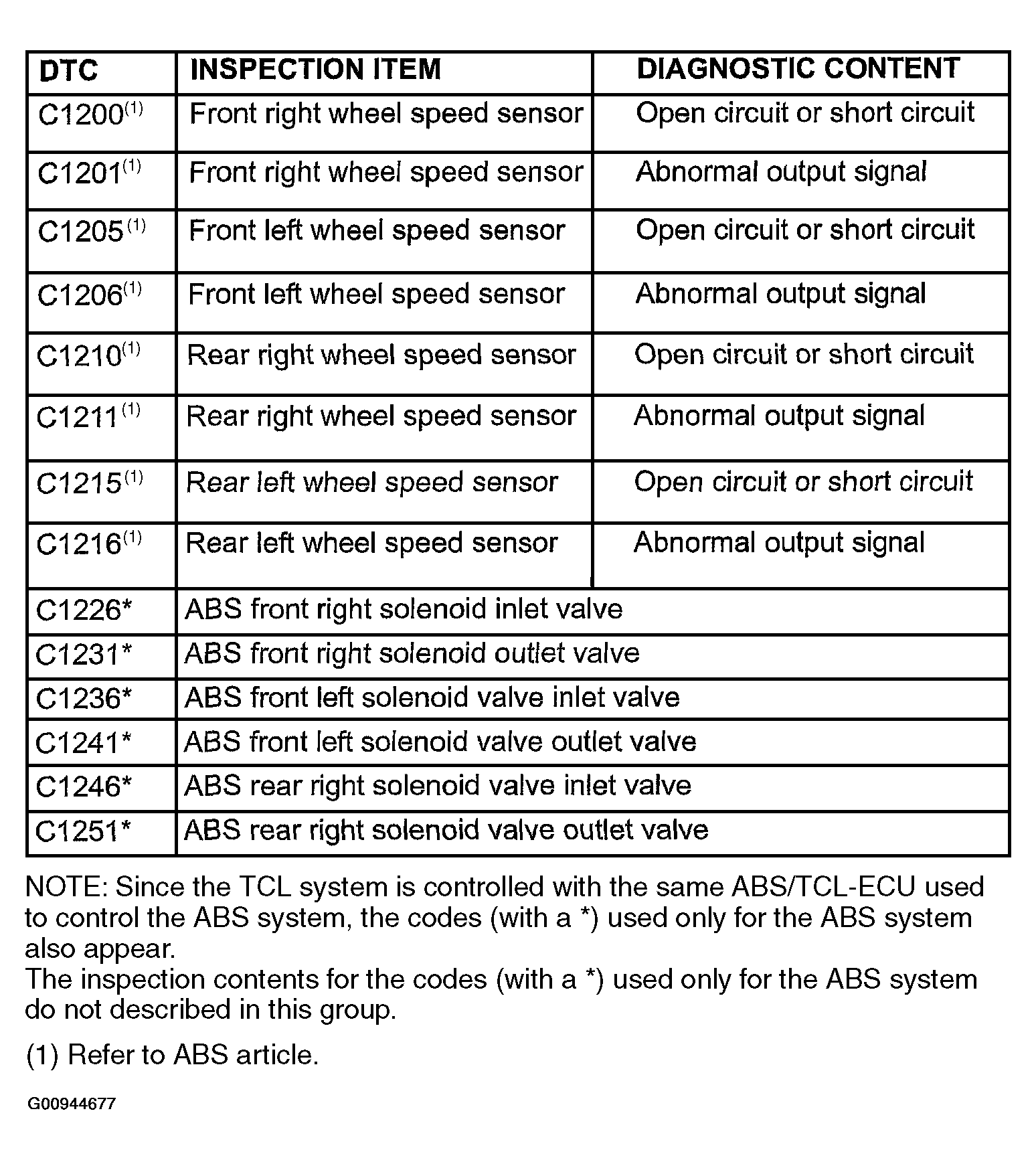

DTC INDEX
| DTC | Description |
|---|---|
| DTC C1396 | Torque Intervention Refusal |
| DTC C1397 | Transmission Range Switch Failure |
| DTC U1100 | CAN Communications System Time Out Error Engine Related Data |
| DTC U1101 | CAN Communications System Time Out Error A/T Related Data |
| DTC U1120 | CAN Communications System TCL Uncontrollable by Engine Malfunction |
| DTC U1400 | Dynamic range error APS1 |
