>> C << Rack Assembly Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Do not close the vent hole in the rack with grease.

Apply a coating of multipurpose grease to the rack teeth face.

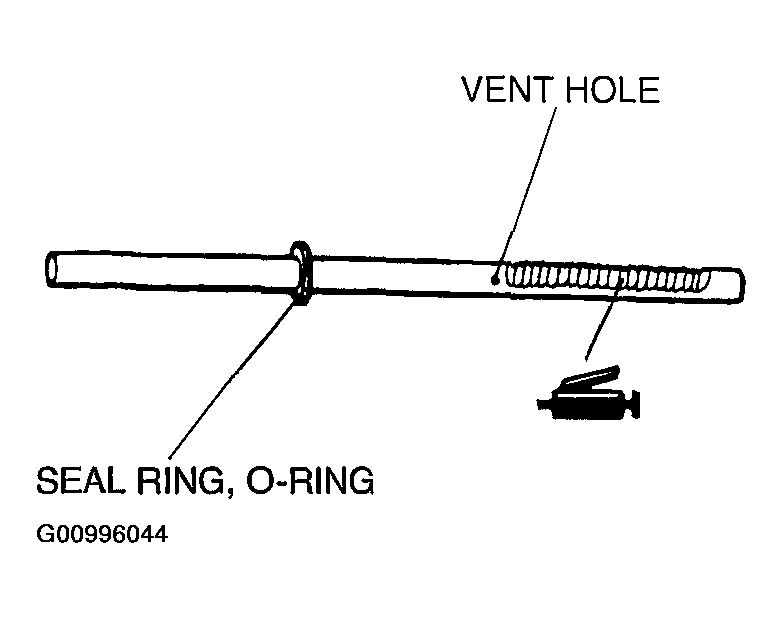

Fig 1: Applying Coating Of Multipurpose Grease To Rack Teeth Face
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Cover rack serrations with special tool MB991213.
Align the center of the oil seal with the rack to prevent the retainer spring form slipping. Slowly insert the rack from power cylinder side.

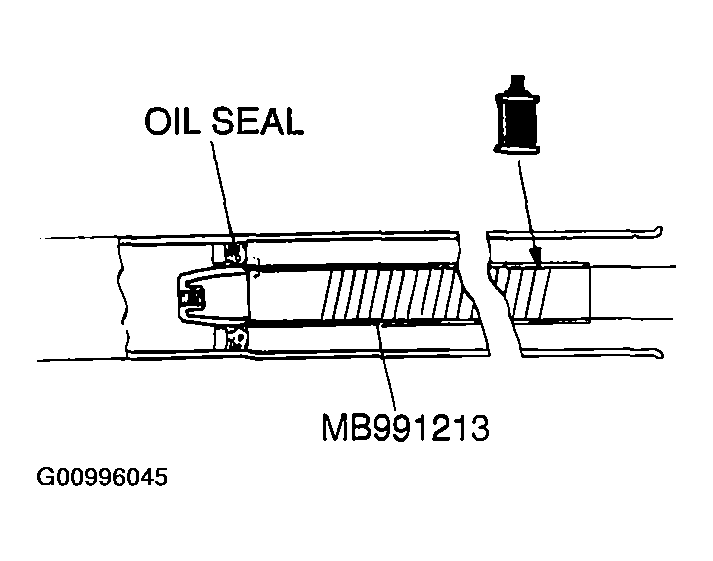

Fig 2: Aligning Center Of Oil Seal With Rack To Prevent Retainer Spring From Slipping
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
