>> E << CIRCLIP Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: Insert the circlip to the rack stopper hole while turning the rack stopper clockwise.

Insert the circlip to the rack stopper hole through cylinder hole. Turn the rack stopper clockwise and insert the circlip firmly.

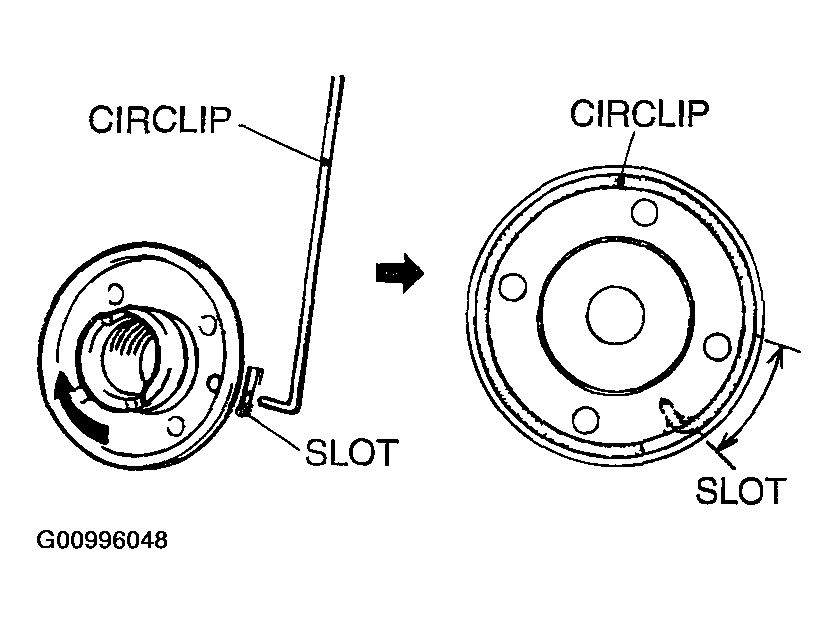

Fig 1: Inserting Circlip To Rack Stopper Hole While Turning Rack Stopper Clockwise
G00996048Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
