>> End << End Plug Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply 3M™ Part number 8661, 8663, 8672, 8678, 8679, or equivalent to the threaded part of the end plug.
  2. Secure the thread portion of the end plug at two places by using a punch.

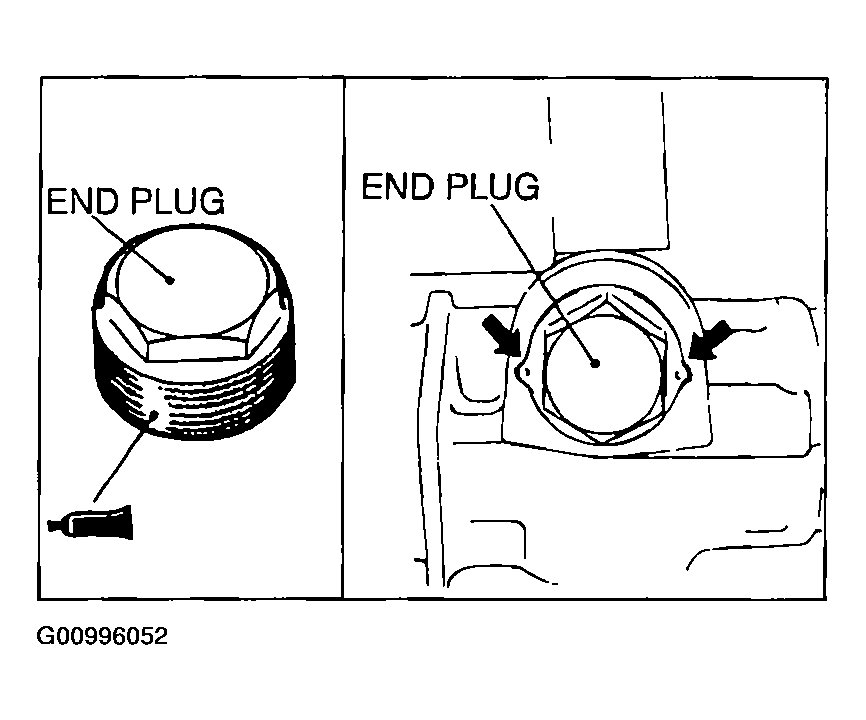

    Fig 1: Installing End Plug
    G00996052Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
