>> J << Rack Support Cover/Jam Nut Installation
WARNING: This page is about a different variant/trim than selected.
- Position the rack at its center.
- Apply 3M™ AAD Part number 8663, 8672, 8678, 8679 or equivalent to the threaded part of the rack support cover.
- Use special tool MB991204 to tighten the rack support cover to 23 +/- 2 N.m (17 +/- 1 ft-lb).

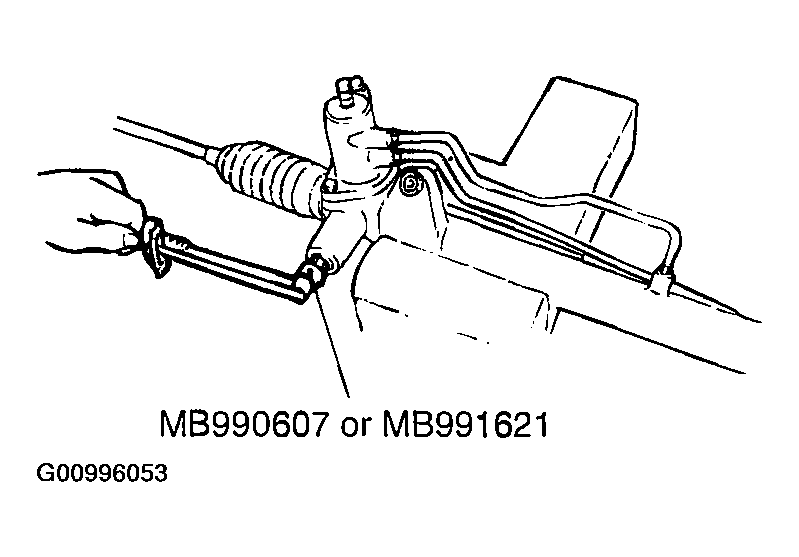

- MB990607: Torque Wrench Socket < Vehicles with 15 inch tire >
- MB991621: Piston Drive < Vehicles with 16 inch tire >
- Turn the rack support cover 30 degree angel counterclockwise.
- Use special tool MB991204 to hold the rack support cover, and then tighten the jam nut to 59 +/- 10 N.m (44 +/- 4 ft-lb).
