Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before removing the steering gear box, center the front wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury. Refer to REMOVAL & INSTALLATION .

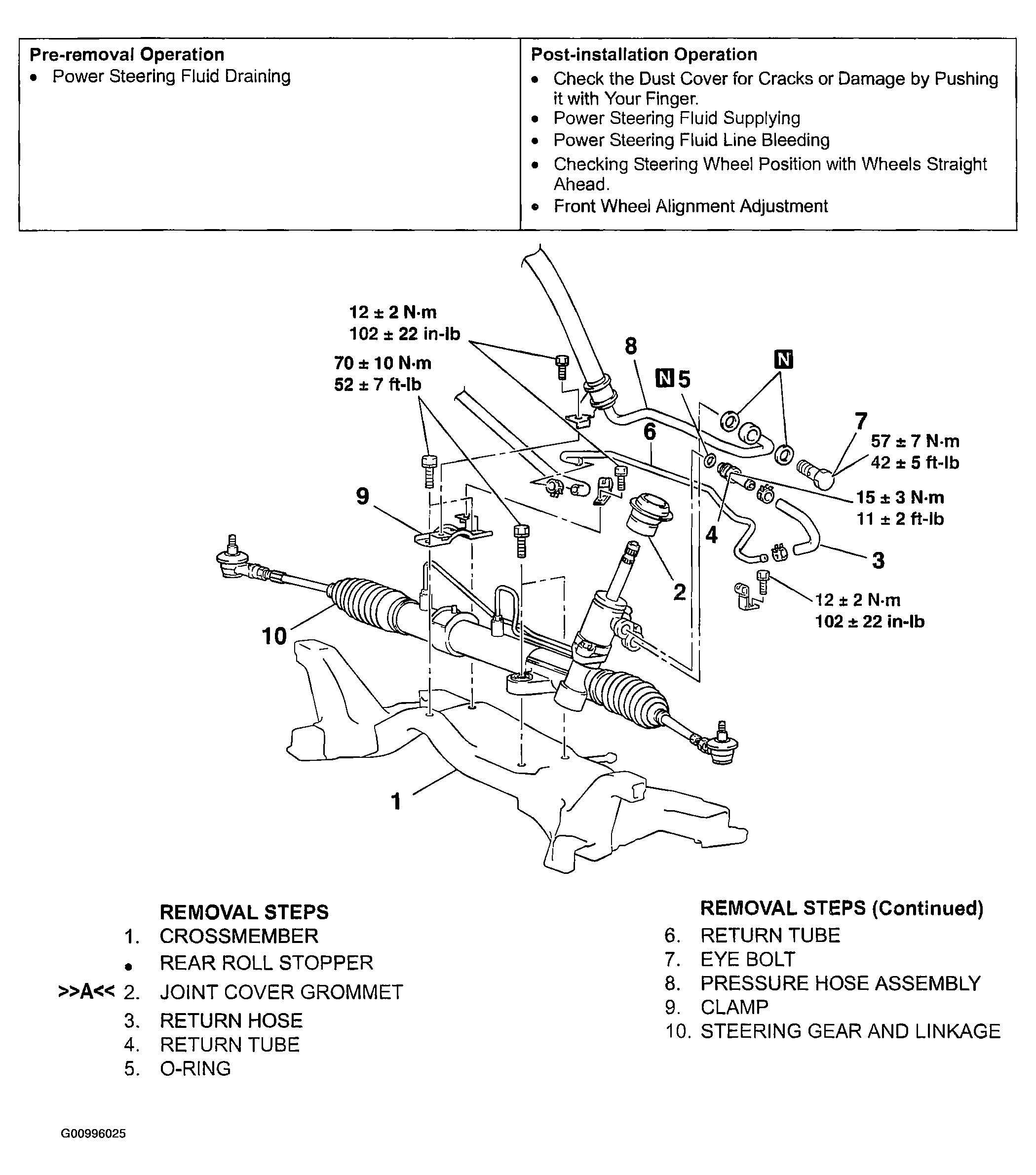

Fig 1: Removing And Installing Power Steering Gear Box
G00996025Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
