>> A << O-Ring Installation

WARNING: This page is about a different variant/trim than selected.

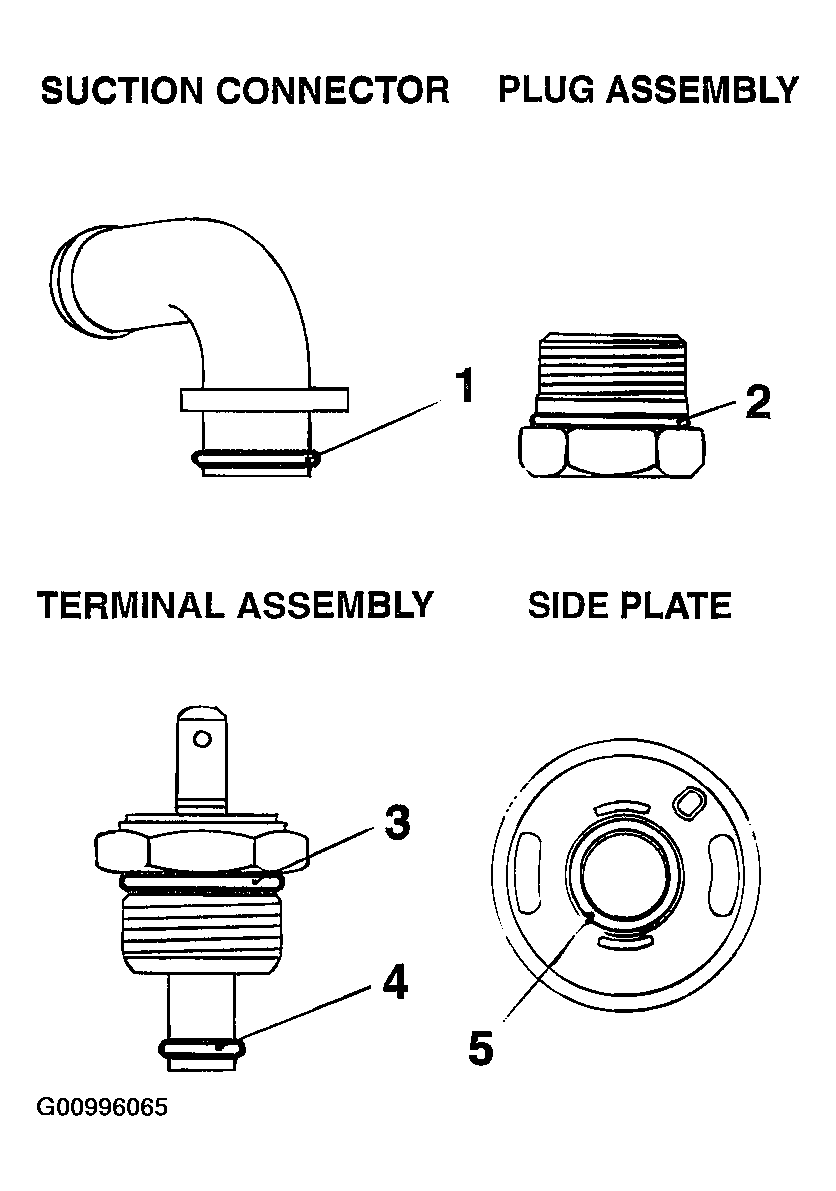

Fig 1: Identifying O-Rings
G00996065Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

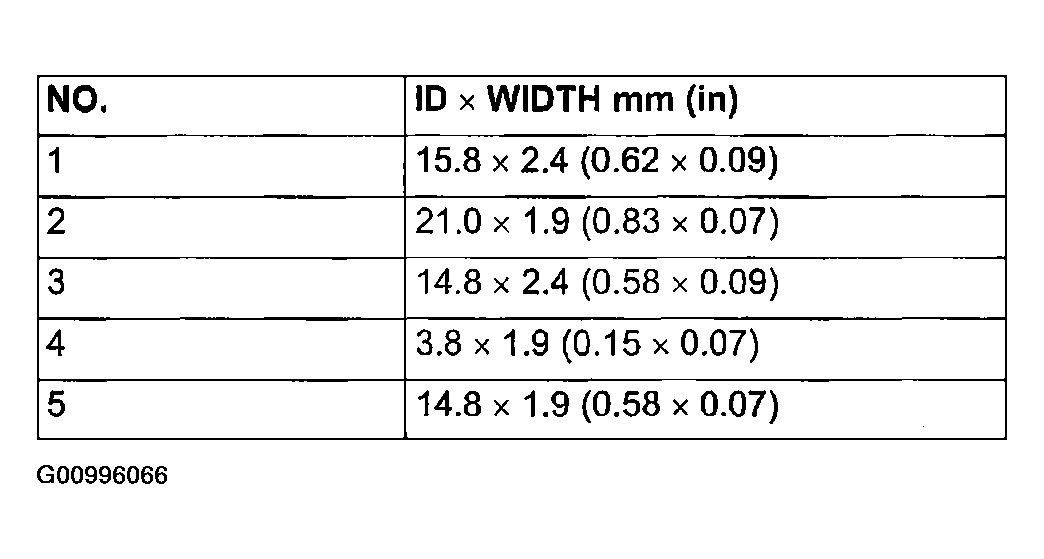

Fig 2: Identifying O-Ring Specifications
G00996066Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
