>> A << Steering Shaft Assembly Installation

WARNING: This page is about a different variant/trim than selected.

< When reusing steering shaft assembly >

CAUTION: Do not release the tilt lever until the steering column shaft assembly has been installed.

Ensure that the tilt lever is in the lock position, and install the steering shaft assembly. Tighten the four bolts in the order shown in illustration by hand, and then tighten them to the specified torque in the order shown.

Tightening torque: 12 +/- 2 N.m (102 +/- 22 in-b)

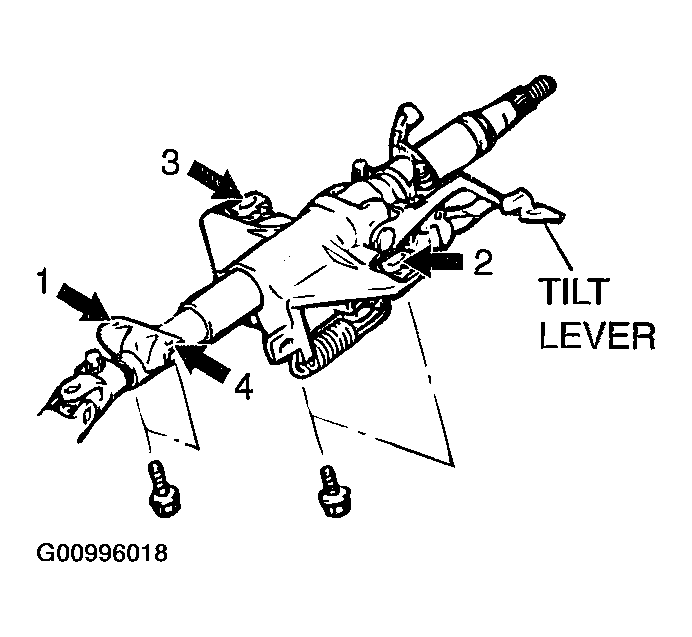

Fig 1: Locating Steering Shaft Assembly Bolts
G00996018Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< When replacing steering shaft assembly (Replacement tilt lever with fixing band) >

CAUTION:
  1. Do not release the tilt lever until the steering shaft assembly has been installed.
  2. Remove the fixing band after the installation has been done.

Ensure that the tilt lever is in the lock position, and install the steering shaft assembly. Tighten the four bolts in the order shown in illustration by hand, and then tighten them to the specified torque in the order shown in illustration.

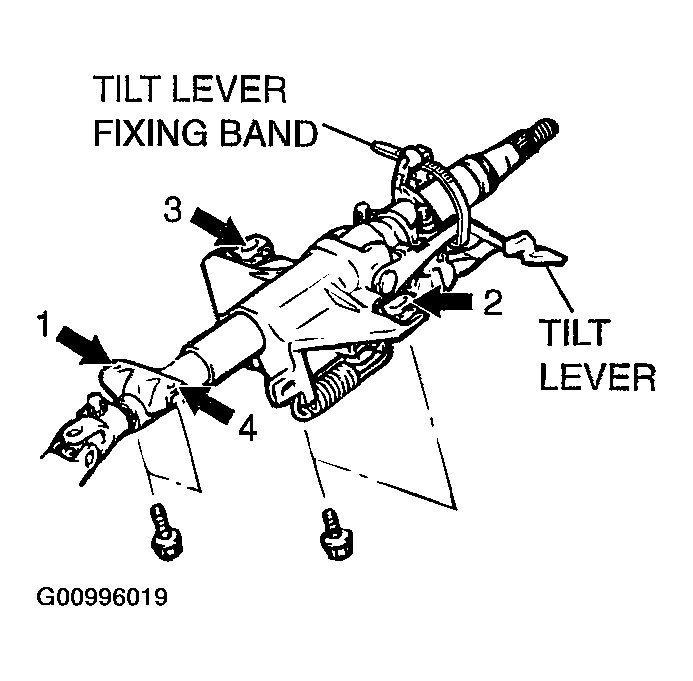

Fig 2: Tightening Steering Shaft Assembly Bolts
G00996019Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Tightening torque: 12 +/- 2 N.m (102 +/- 22 in-b)

< When replacing steering shaft assembly (Replacement tilt lever with fixing band) >

CAUTION: Do not release the tilt lever until the steering shaft assembly has been installed.

Ensure that the tilt lever is in the lock position, and install the steering shaft assembly. Tighten the four bolts in the order shown by hand, and then tighten them to the specified torque in the order shown.

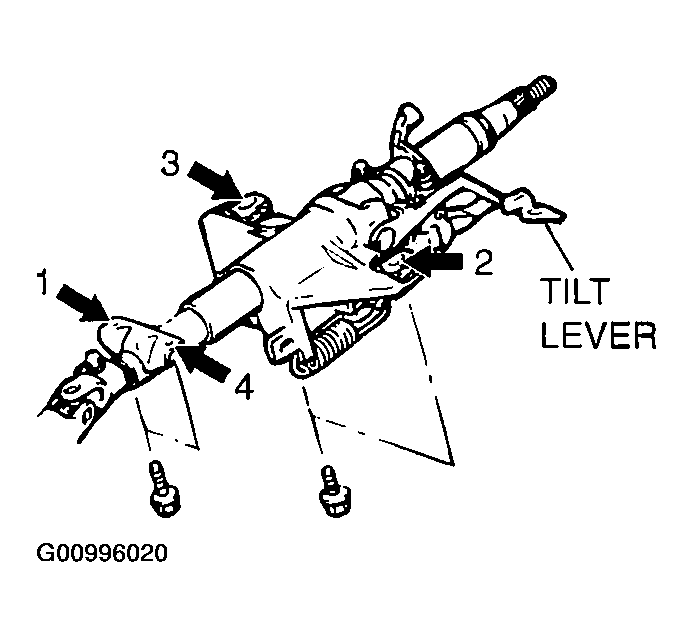

Fig 3: Identifying Tilt Lever
G00996020Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Tightening torque: 12 +/- 2 N.m (102 +/- 22 in-b)
