Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

WARNING:

Before removing the air bag module, refer to AIR BAG SAFETY PRECAUTIONS and DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING .
When removing and installing the steering wheel, do not let it bump against the air bag module.

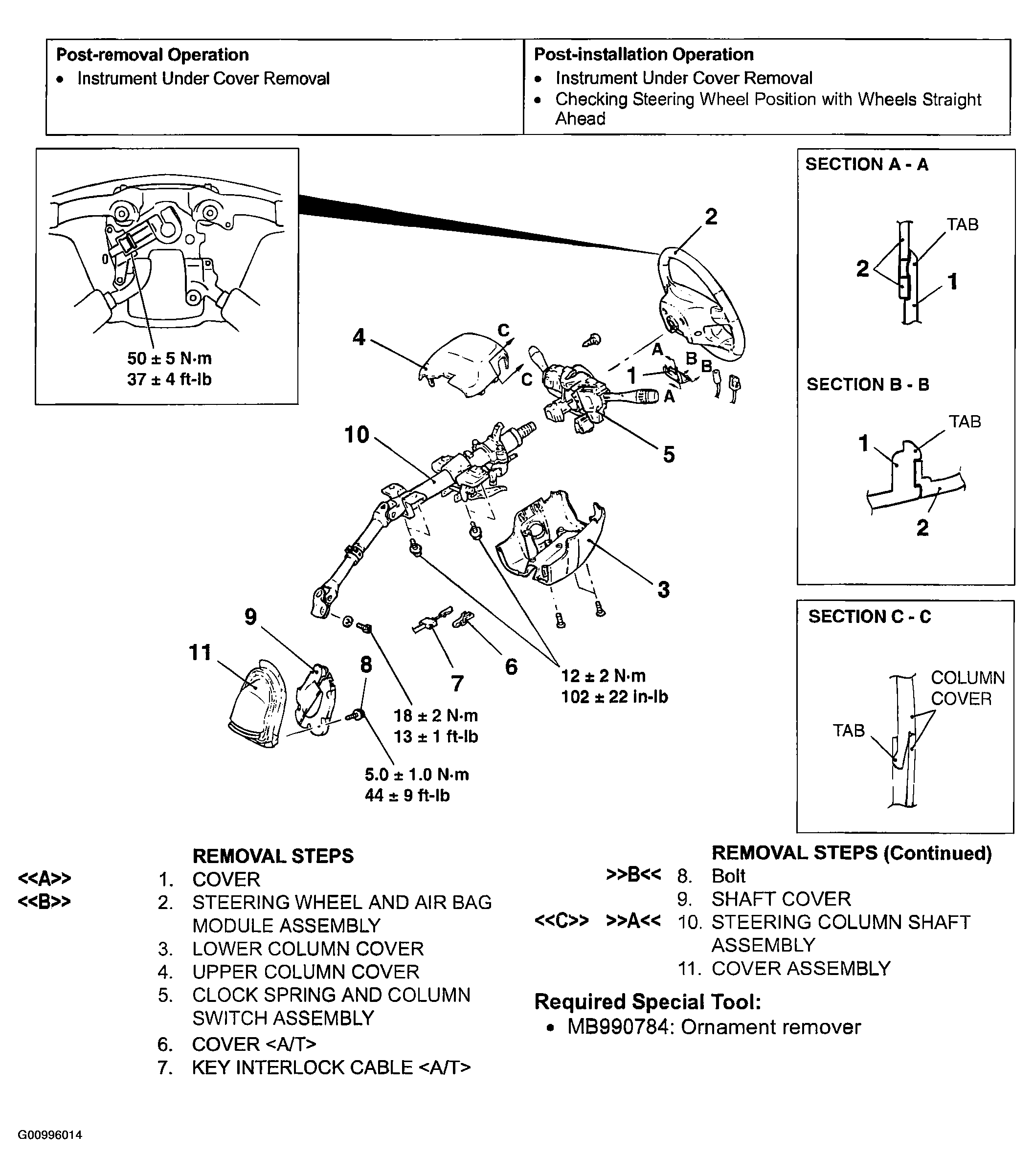

Fig 1: Removing And Installing Steering Wheel And Shaft Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
