Inspection Procedure 3: Fuel Gauge Does Not Work.: Notes

WARNING: This page is about a different variant/trim than selected.

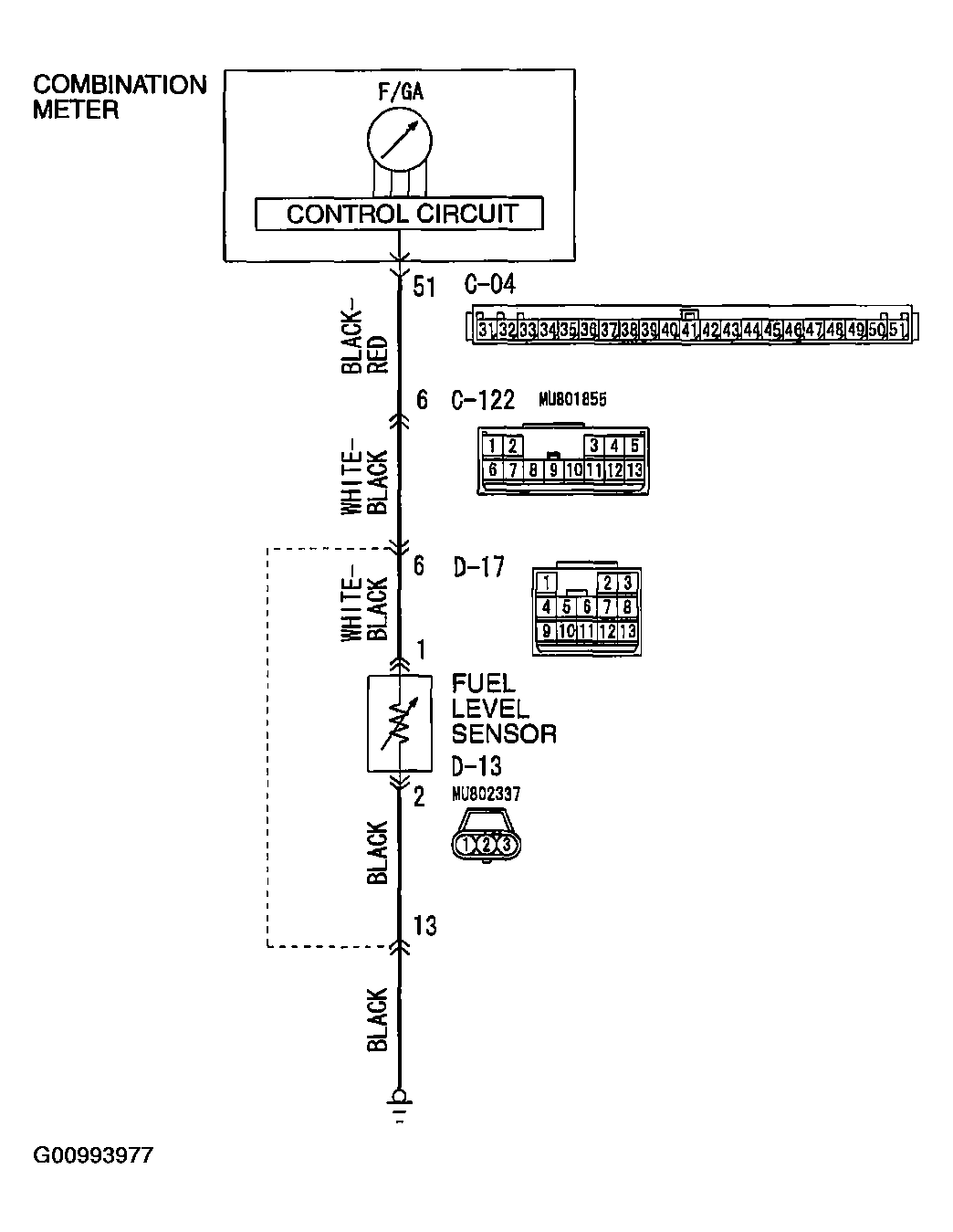

Fig 1: View Of Fuel Gauge Circuit Diagram
G00993977Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

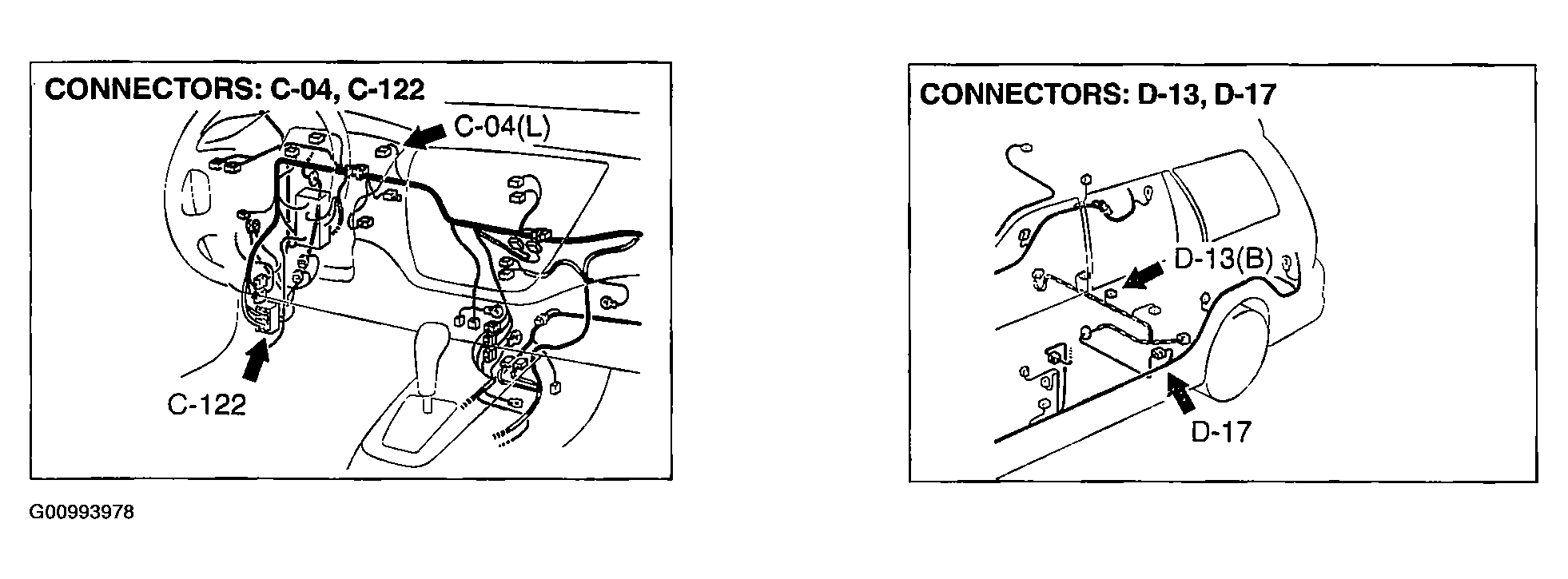

Fig 2: Identifying Connector Terminals
G00993978Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
