General Description (Exhaust Gas RECIRCULATION System): Operation
WARNING: This page is about a different variant/trim than selected.

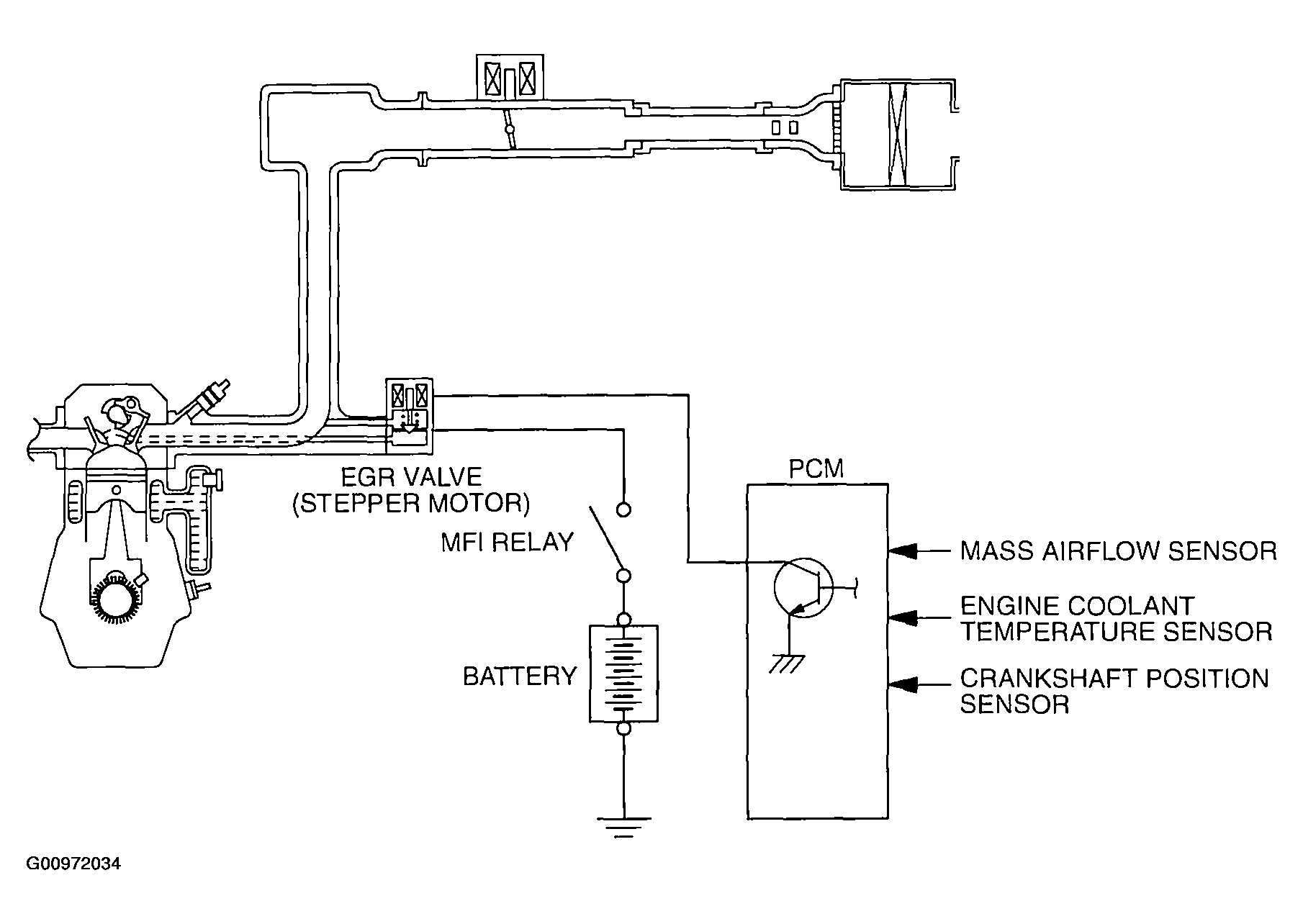

When the engine coolant temperature is low, when the engine is at idle or when a wide open throttle operation is performed, the EGR valve (Stepper Motor) is kept closed, achieving no EGR. After warming up of the engine, the EGR valve (Stepper Motor) can be opened by the powertrain control module (PCM).
The PCM monitors the EGR system and illuminates the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) to indicate that there is a malfunction.
