Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
WARNING: When removing and installing the key interlock cable and shift lock cable, be careful not to hit the SRS-ECU.

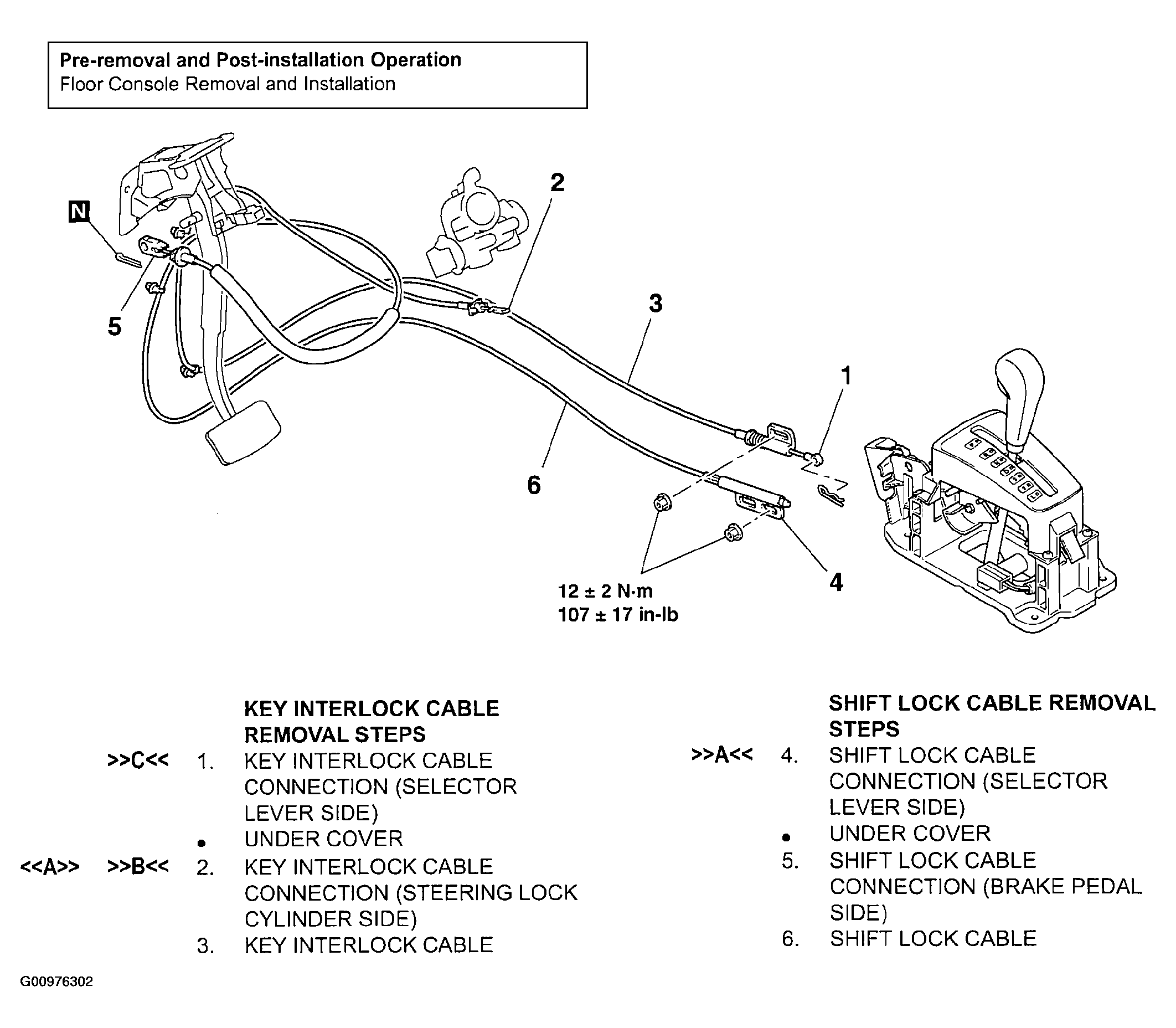

Fig 1: Identifying A/T Key Interlock And Shift Lock Mechanism Components
G00976302Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
