Section 26 (Diagnosis SPORTBACK): General Description: Notes

WARNING: This page is about a different variant/trim than selected.

F4A4B model has been established.

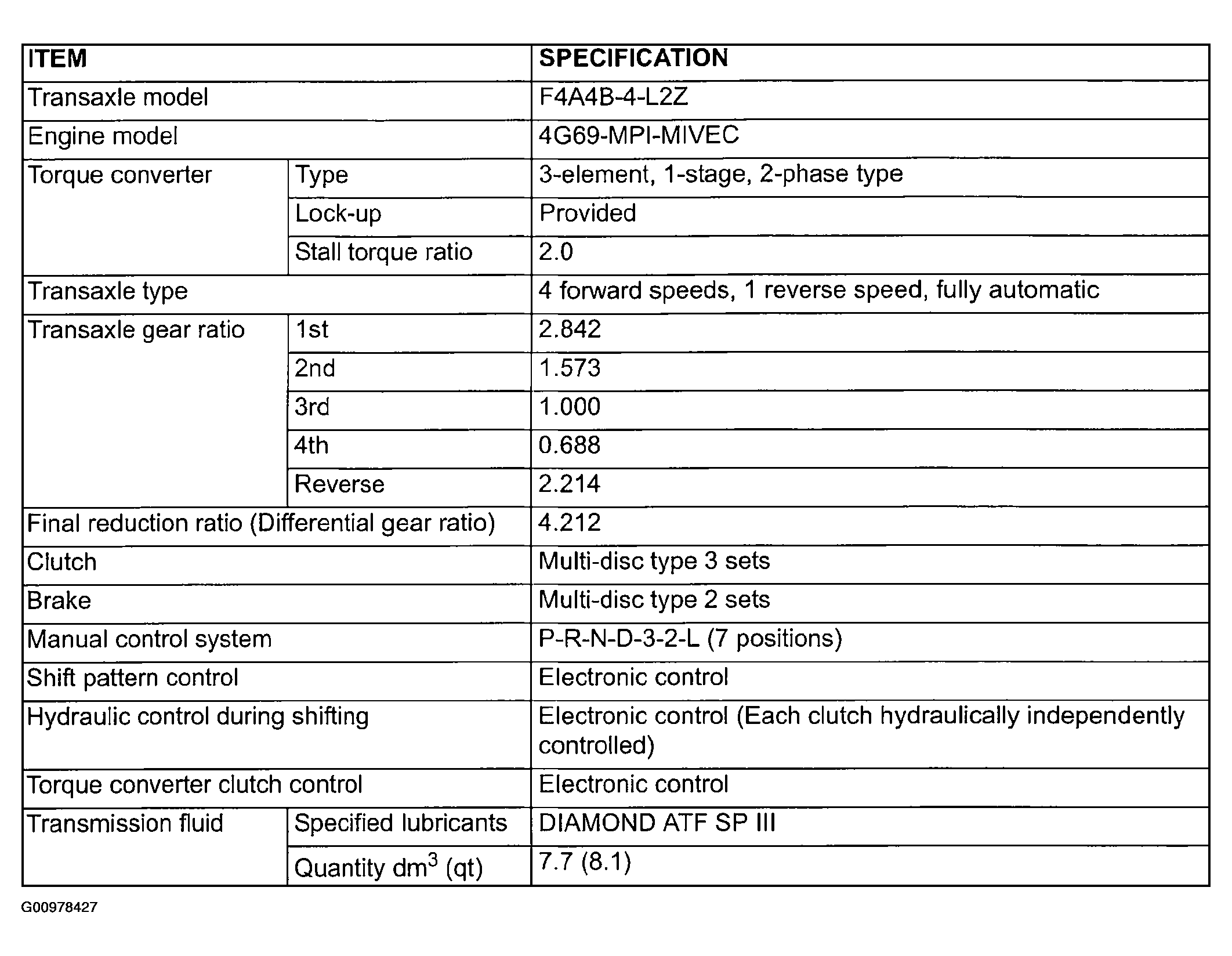

Fig 1: Transaxle General Description

G00978427

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
