A/T Control Component Layout
WARNING:
This page is about a different variant/trim than selected.

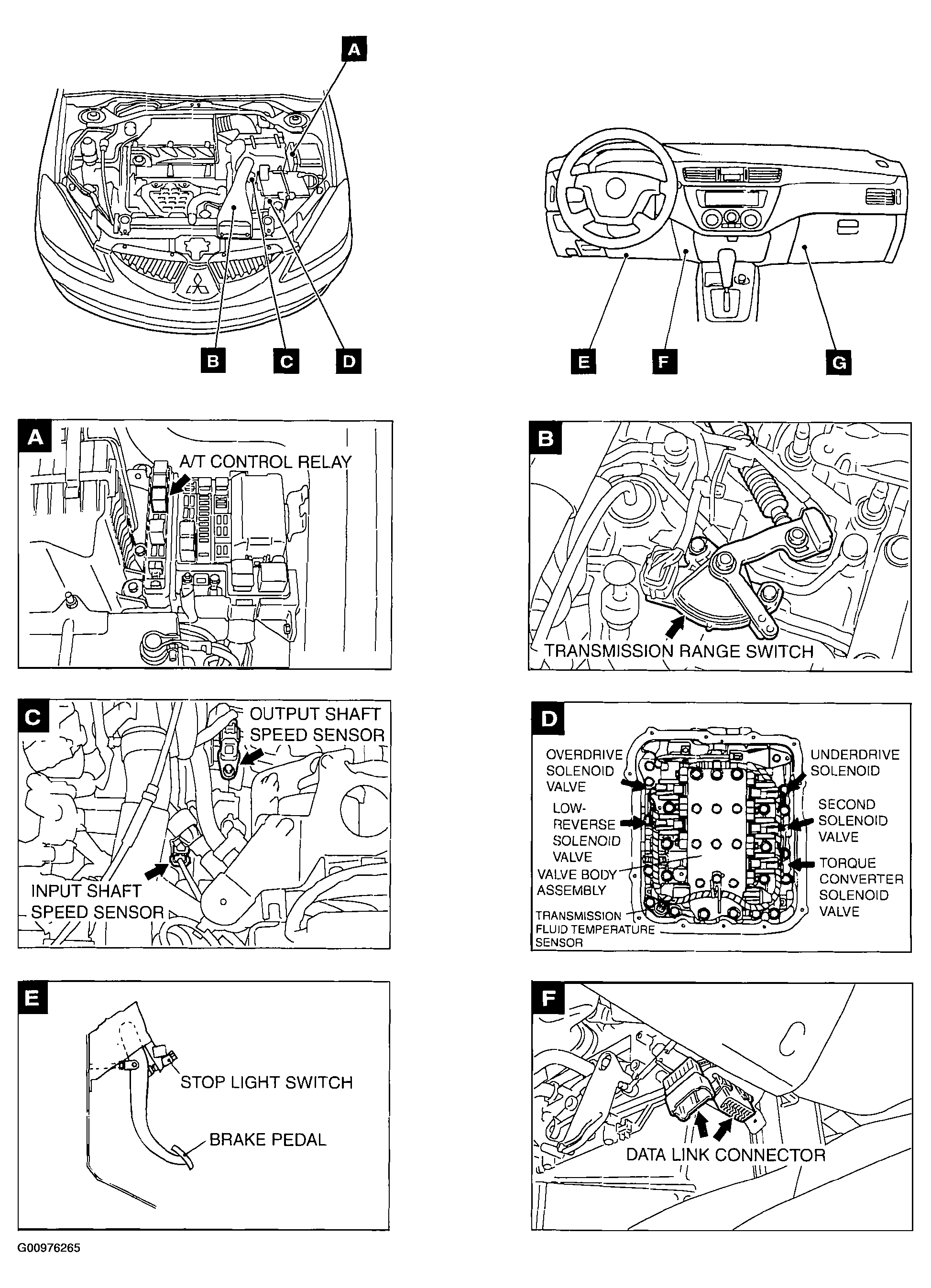

Fig 1: Identifying A/T Control Component Layout (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

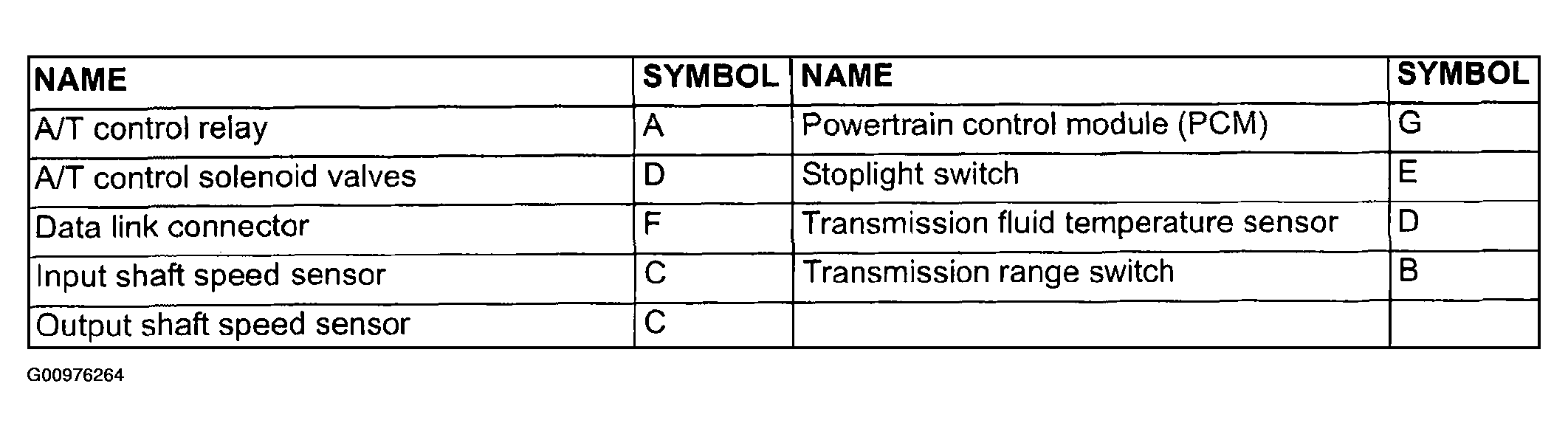

Fig 2: Identifying A/T Control Component Layout (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

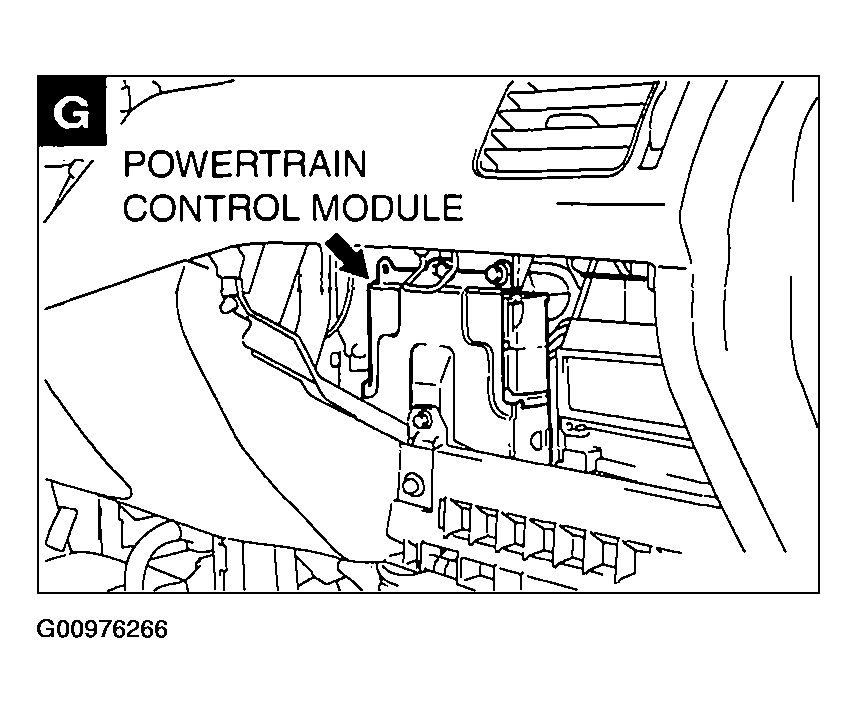

Fig 3: Identifying Powertrain Control Module
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
