Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
WARNING: When removing and installing the transaxle control cable, key interlock cable and shift lock cable, be careful not to hit the SRS-ECU.

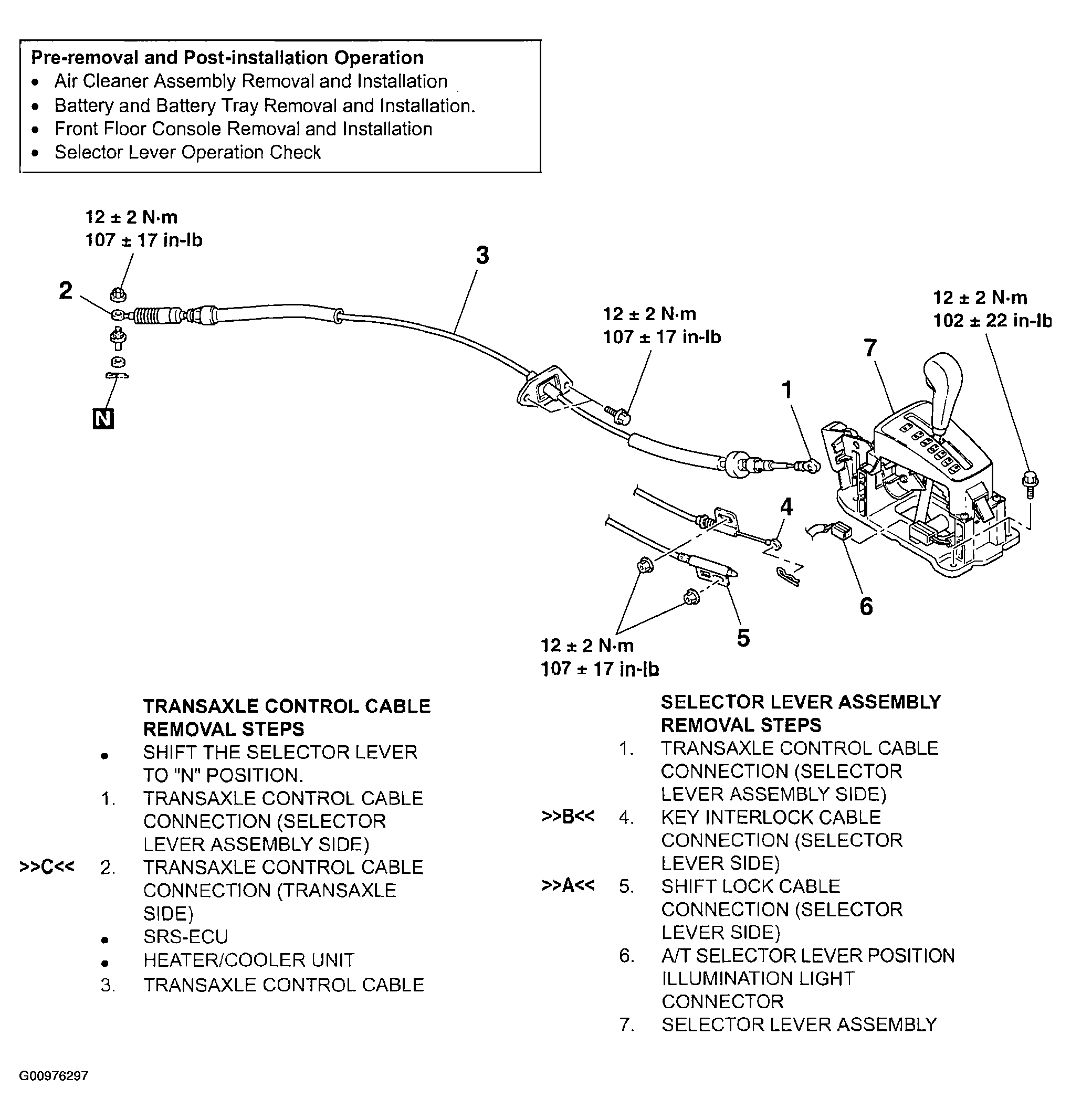

Fig 1: Removing & Installing Transaxle Control Components
G00976297Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
