Removal And Installation < 2.4L Engine >: Notes

WARNING: This page is about a different variant/trim than selected.

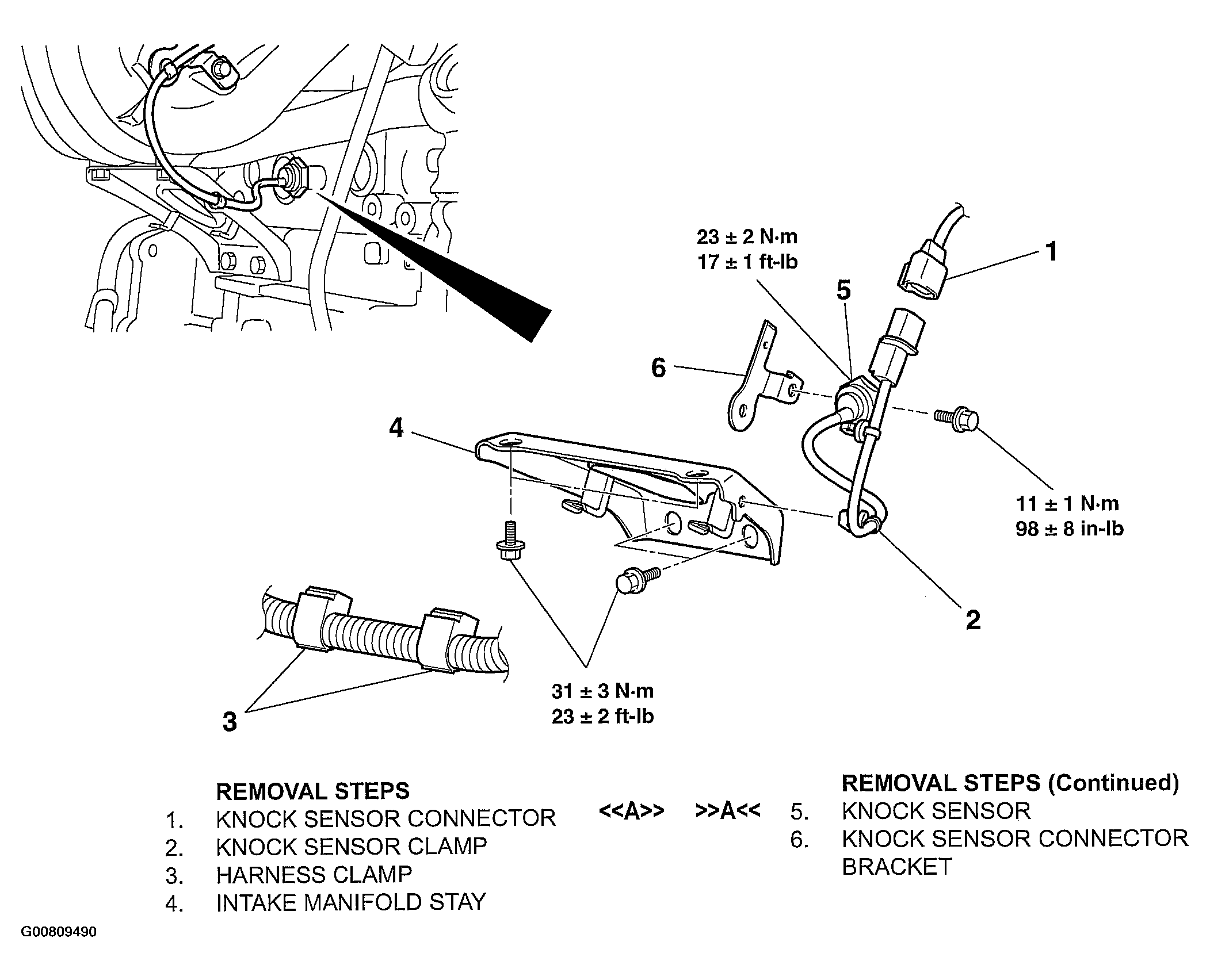

Fig 1: Removing And Installing Knock Sensor (2.4L Engine)
G00809490Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MD998773: Knock Sensor Wrench
