How To Read And Erase Diagnostic Trouble Codes
WARNING: This page is about a different variant/trim than selected.

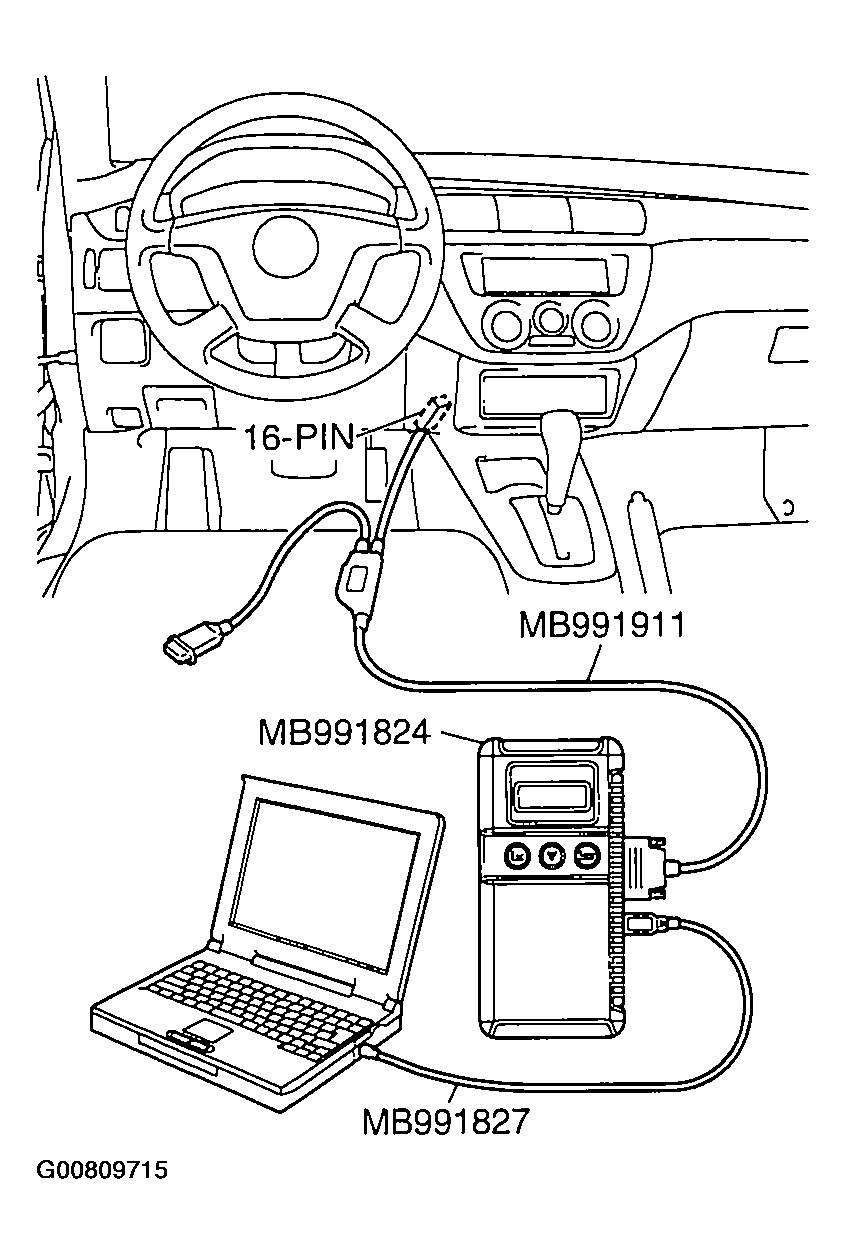

Required Special Tool:
- MB991958: Scan tool (MUT-III sub assembly)
- MB991824: V.C.I.
- MB991827: MUT-III USB cable
- MB991911: MUT-III main harness B
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
NOTE:
If the battery voltage is low, diagnostic trouble codes will not be set. Check the battery if scan tool MB991958 does not display.
- Connect scan tool MB991958 to the data link connector.
- Turn the ignition switch to the "ON" position.
- Select "Interactive Diagnosis" from the start-up screen.
- Select "System Select."
- Choose "AUTO-CRUISE" from the "POWERTRAIN" tab.
- Select "Diagnostic Trouble Code."
- If a DTC is set, it is shown.
- Choose "DTC erase" to erase the DTC.
- Turn the ignition switch to the "LOCK" (OFF) position.
- Disconnect scan tool MB991958.
