INSPECTION PROCEDURE 2: When the Clutch Pedal is Depressed, Auto-cruise Control is not Cancelled < M/T >.: Notes
WARNING:
This page is about a different variant/trim than selected.

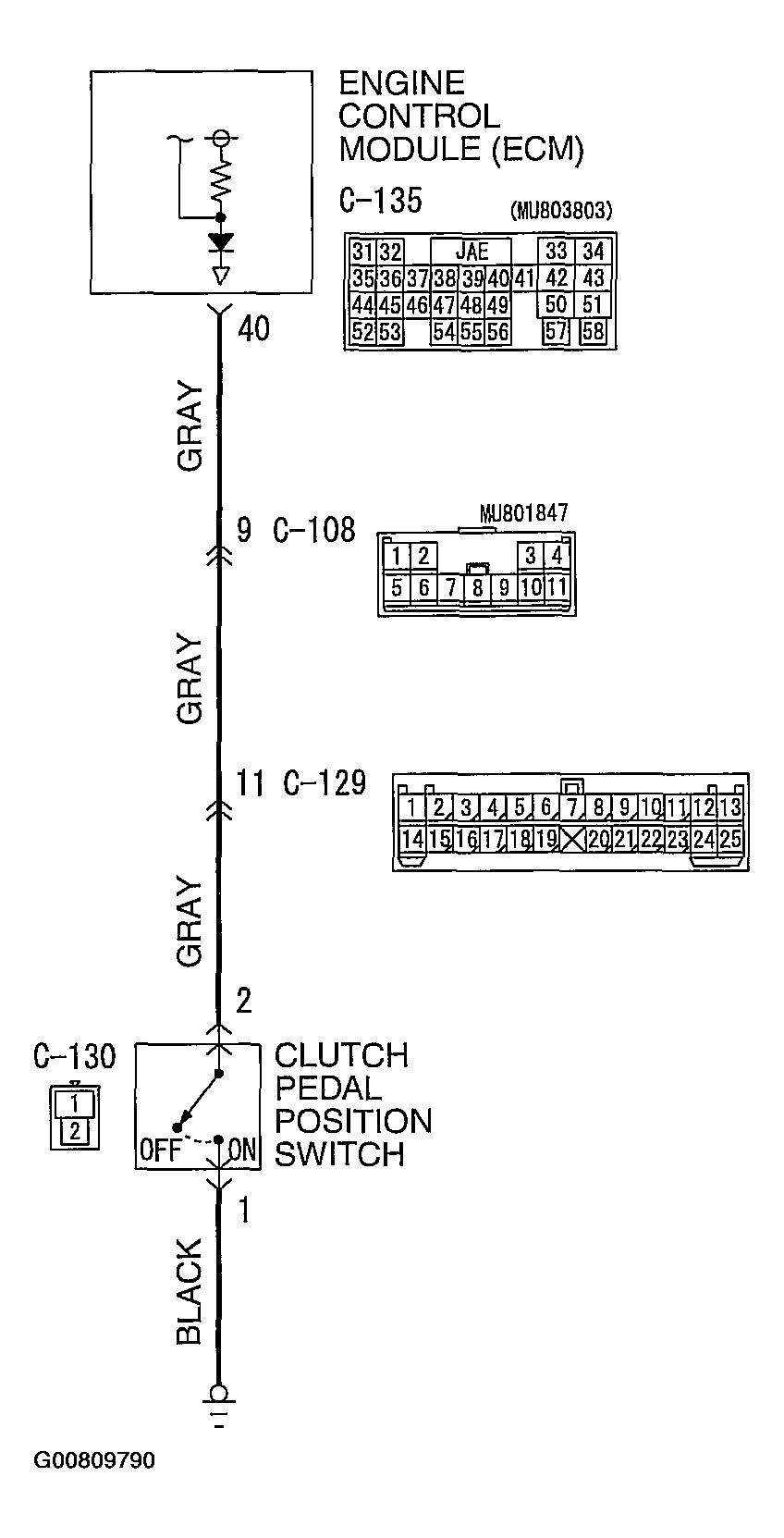

Fig 1: Clutch Pedal Position Switch Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

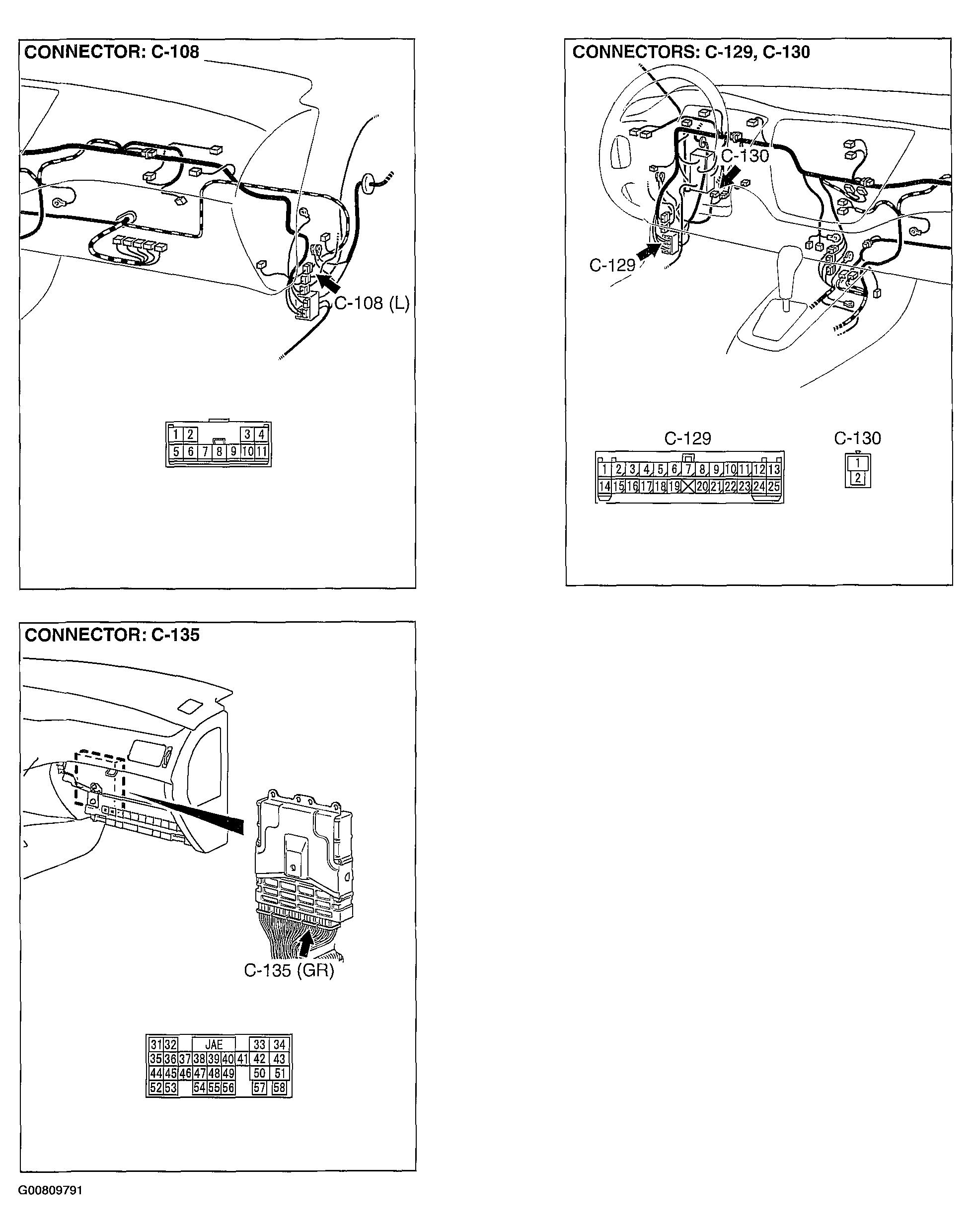

Fig 2: Identifying Connectors: C-108, C-129, C-139, C-135
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
