INSPECTION PROCEDURE 7: When "CRUISE" (MAIN) Switch is Turned "ON", "CRUISE" Indicator Light Inside Combination Meter does not Illuminate. (However, Auto-cruise Control is Normal).: Notes

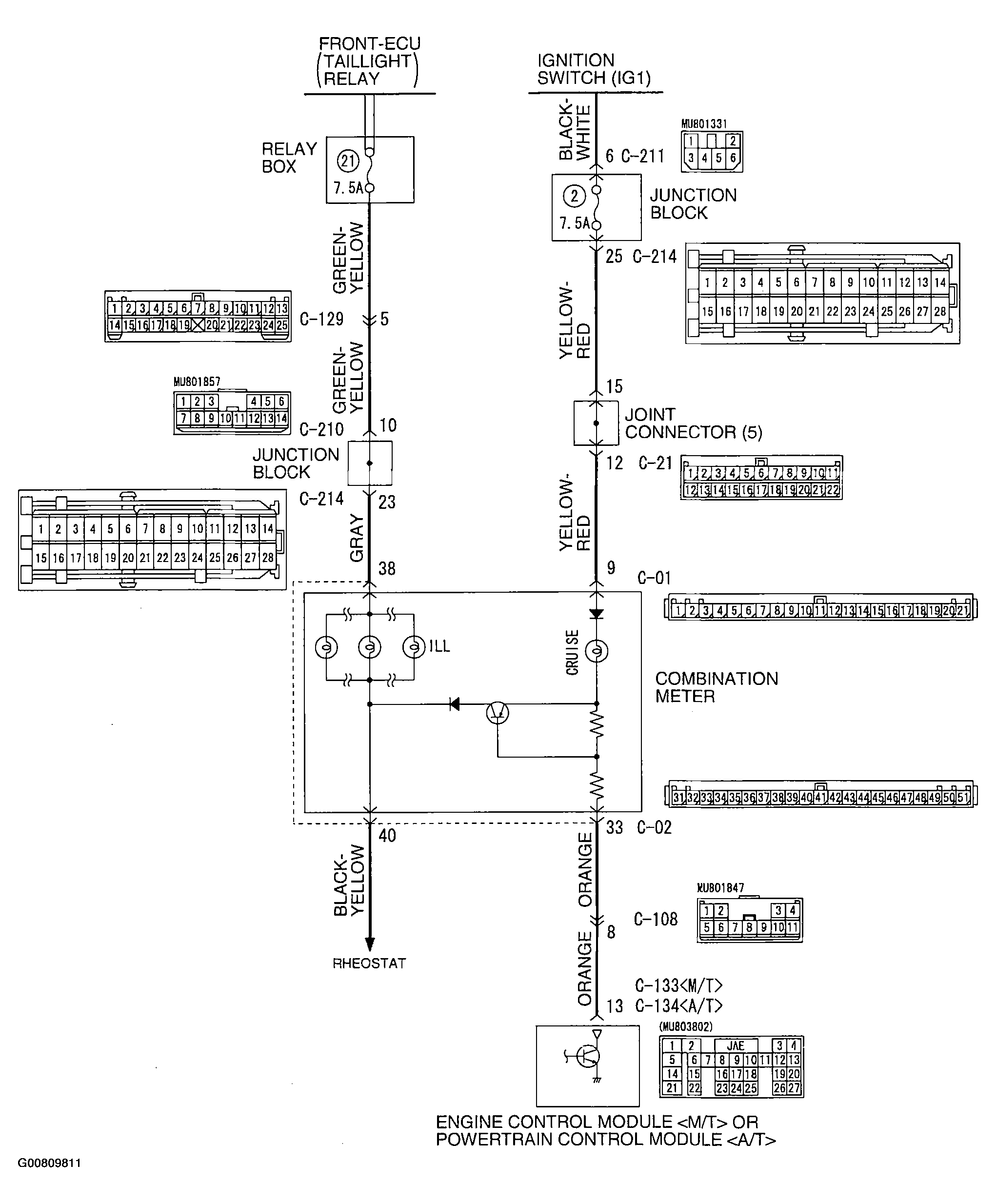

Fig 1: Auto-cruise Control Indicator Light Drive Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

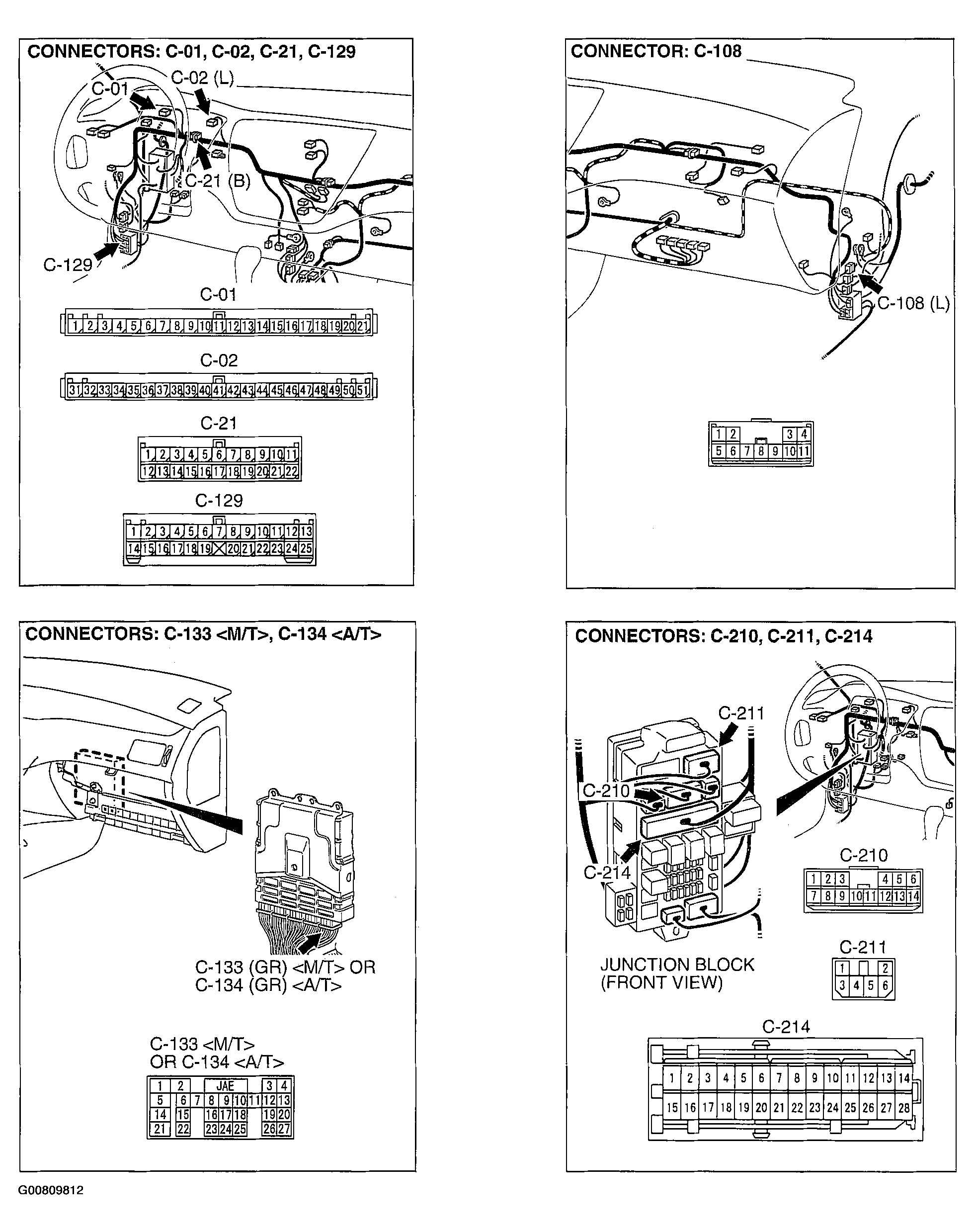

Fig 2: Identifying Connectors C-01, C-02, C-21, C-129, C-108, C-133 (M/T), C-134 (A/T), C-210, C-211, C-214

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
