Section 40 (Auto-Cruise Control System - 2.4L (Except Evolution & SPORTBACK)): General Description

WARNING: This page is about a different variant/trim than selected.

By using the auto-cruise control, the driver can select and maintain a desired cruising speed [between 40 km/h (25 mph) and 200 km/h (124 mph)] without depressing the accelerator pedal.

For this auto-cruise control system, in conjunction with the electronic throttle valve control system, the engine control module (ECM) < M/T > or powertrain control module (PCM) < A/T > electronically controls the throttle valve.

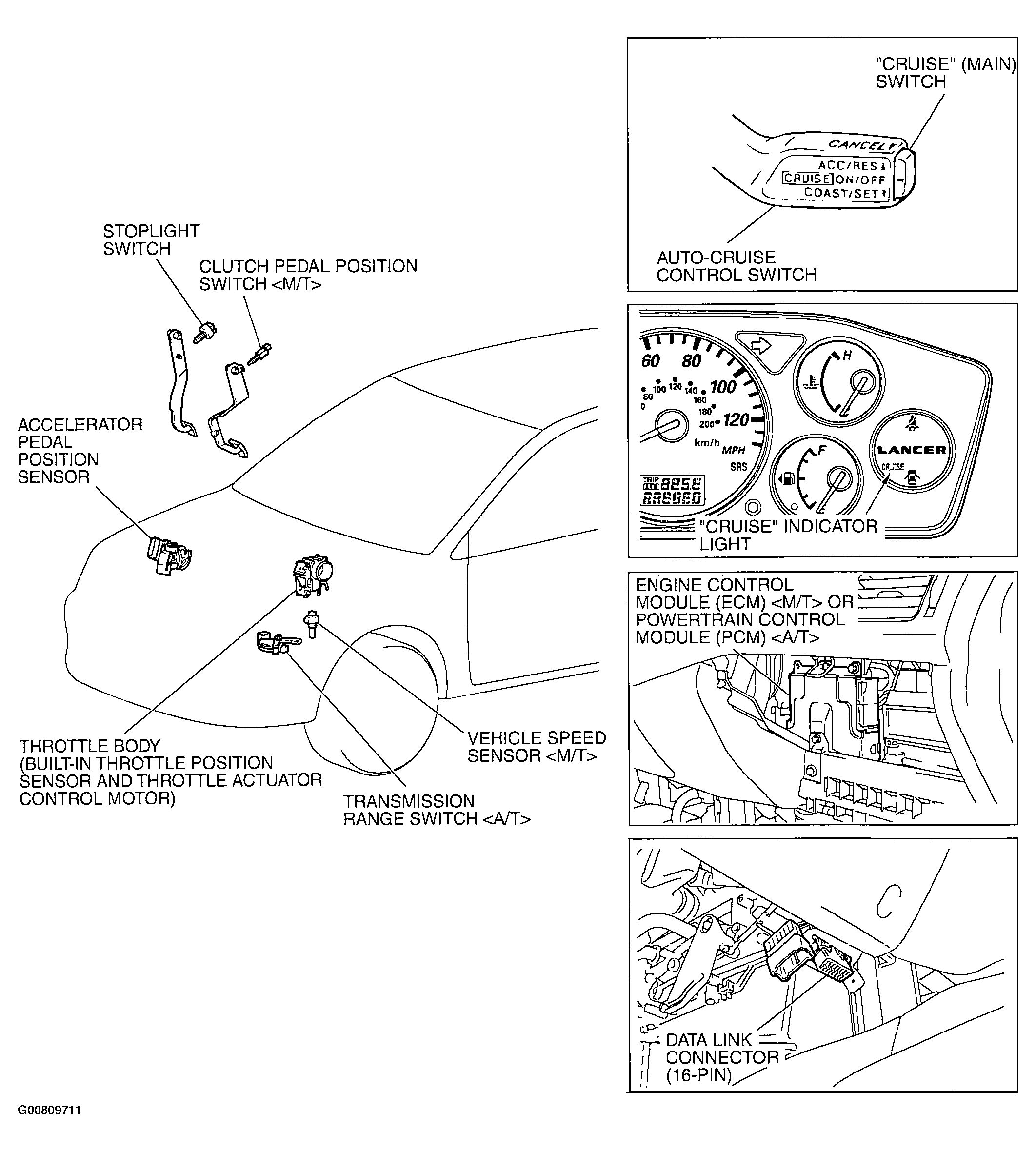

Fig 1: Identifying Cruise Control Construction Diagram
G00809711Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
