Auto-Cruise Control Switch Check

WARNING: This page is about a different variant/trim than selected.
  1. Remove the auto-cruise control switch (Refer to AUTO-CRUISE CONTROL ).
  2. Measure the resistance between terminal 2 and terminal 3 when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.

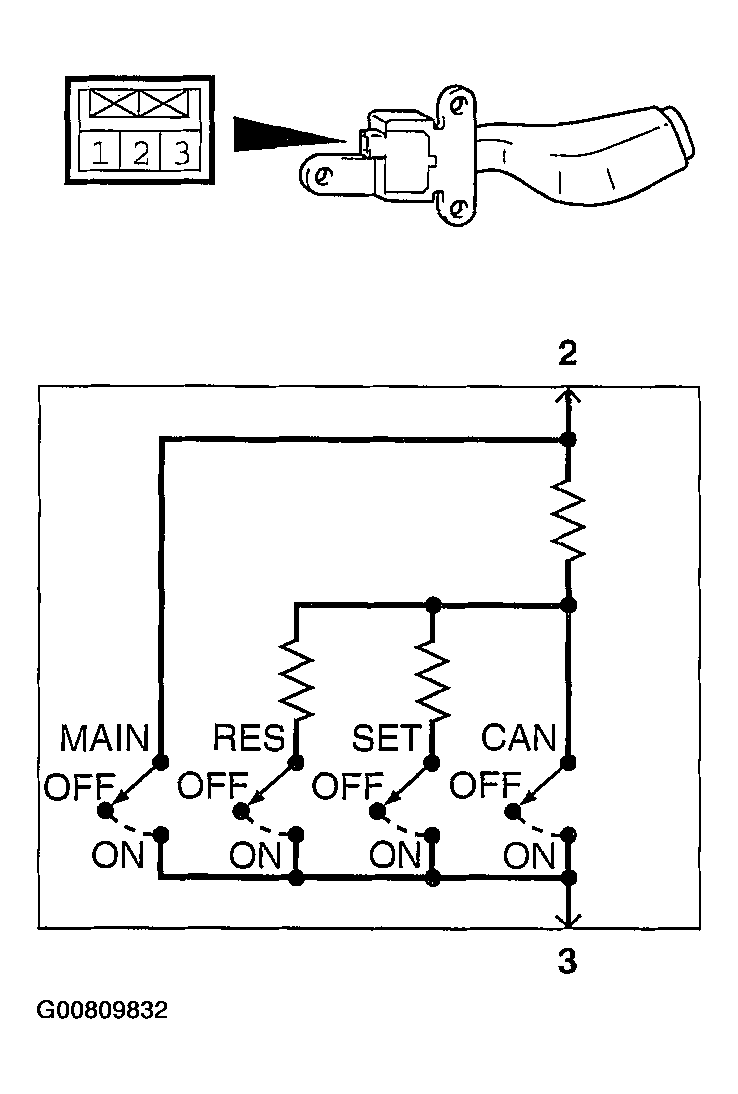

Fig 1: Checking Resistance
G00809832Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

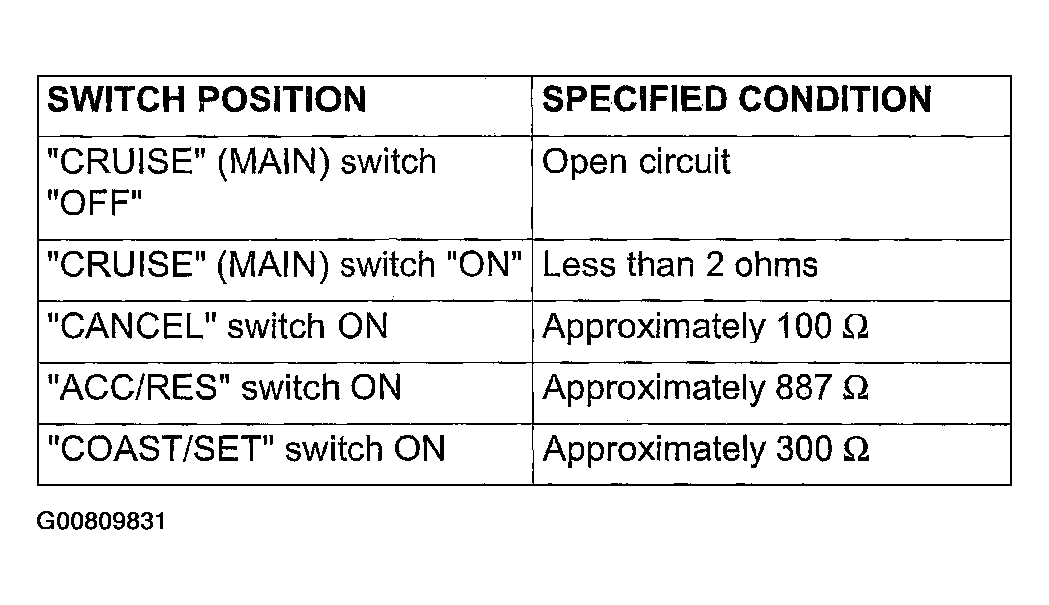

Fig 2: Identifying Specified Conditions
G00809831Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
