Section 41 (Emission Control System - Except Evolution & SPORTBACK)
>>
Exhaust Gas RECIRCULATION (EGR) System
>>
Component Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location
WARNING:
This page is about a different variant/trim than selected.

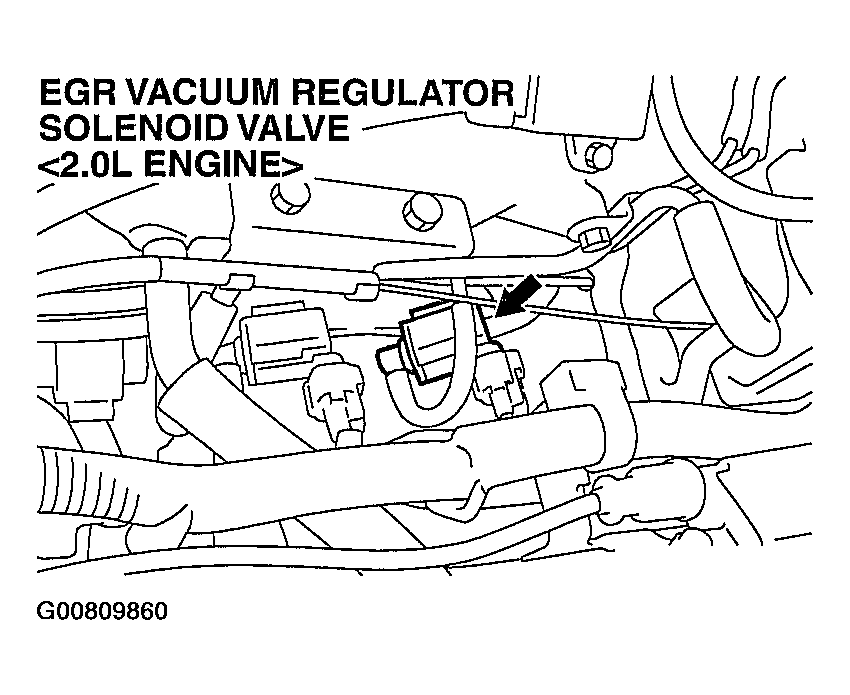

Fig 1: Component Location EGR Vacuum Solenoid Valve (2.0L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

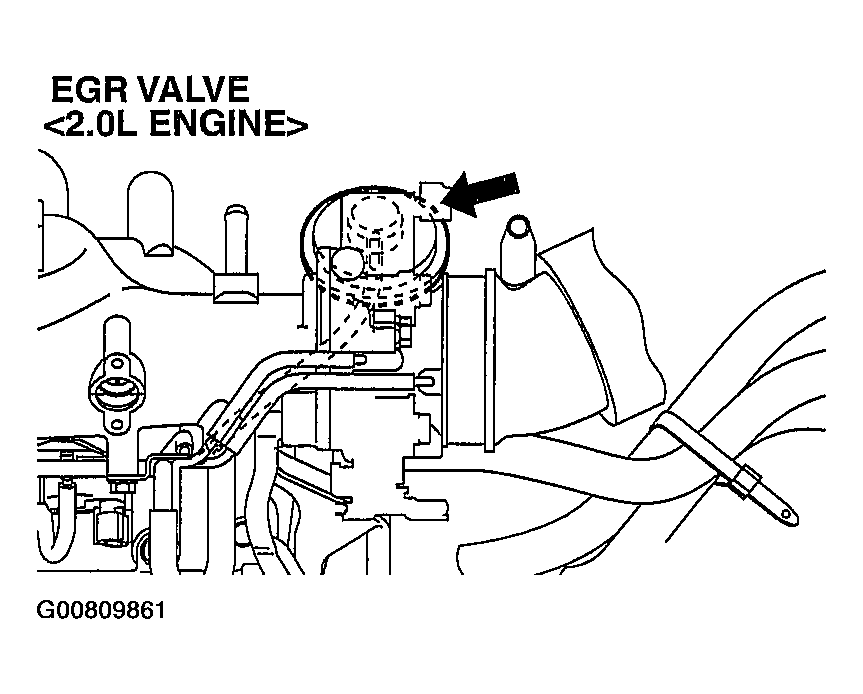

Fig 2: Component Location EGR Valve (2.0L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

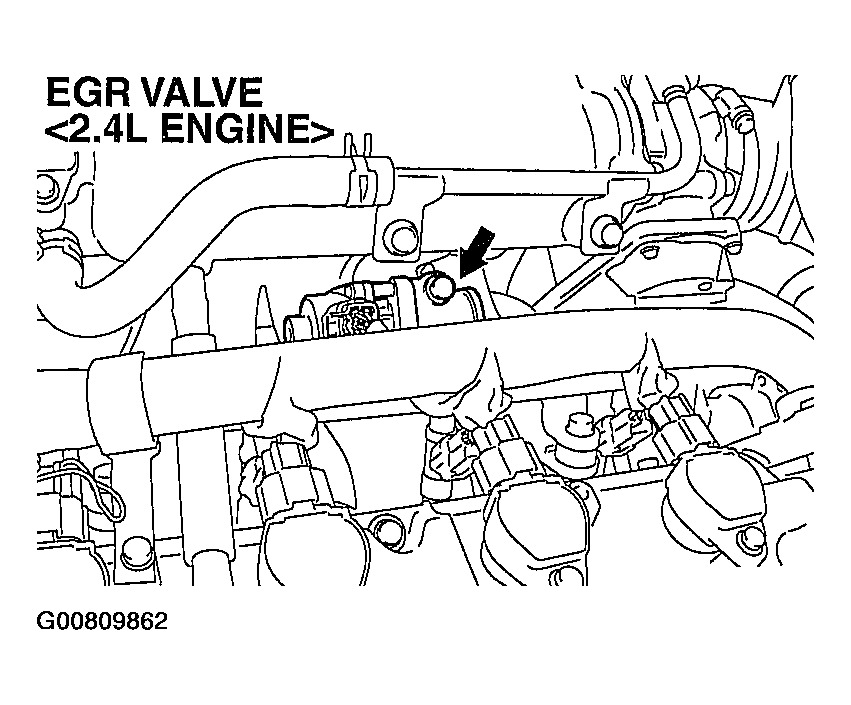

Fig 3: Component Location EGR Valve (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
