Hub Bolt Replacement

Required Special Tools:

• MB990767: End Yoke Holder
• MB991618: Hub Bolt Remover

1. Remove the caliper assembly and suspend it with wire so that it does not fail.
2. Remove the brake disc.
3. Use special tools MB990767 and MB991618 to remove the hub bolts.

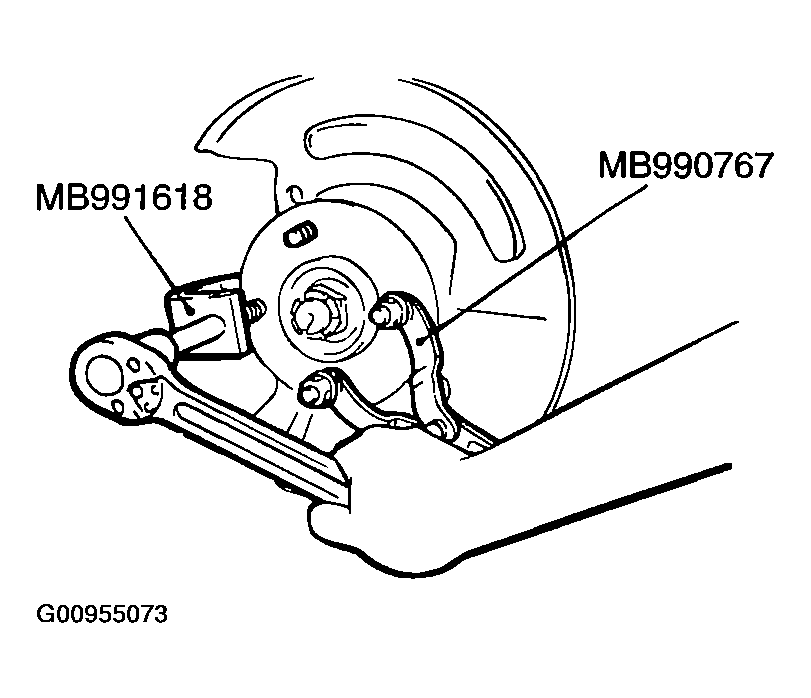

   Fig 1: Removing Hub Bolts

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Install the plain washer to the new hub bolt, and install the bolt with a nut.

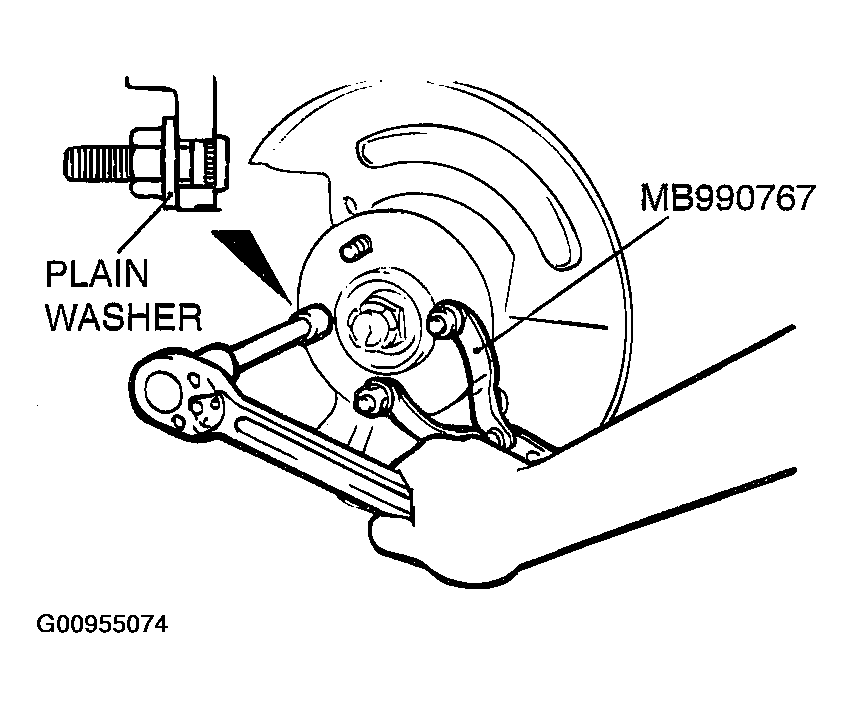

   Fig 2: Installing Plain Washer To New Hub Bolt

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
