<< D >> Oil Seal/Rack Bushing Installation

WARNING: This page is about a different variant/trim than selected.

Apply GENUINE MITSUBISHI POWER STEERING FLUID to the outer surface of the oil seal. Using the special tool MB990927, press in the oil seal until it is flush with the bushing end face.

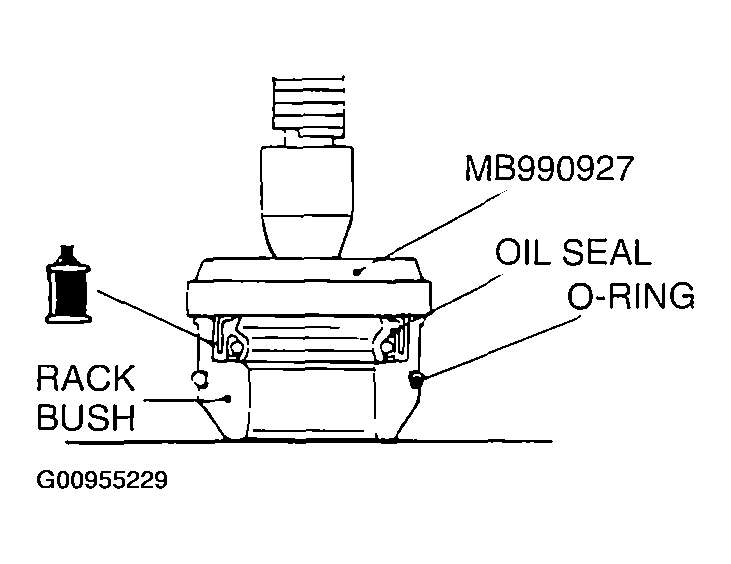

Fig 1: Installing Oil Seal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Apply GENUINE MITSUBISHI POWER STEERING FLUID to the oil seal inner surface and the O-ring.
Wrap the rack end with plastic tape, and push the rack bushing onto the rack.

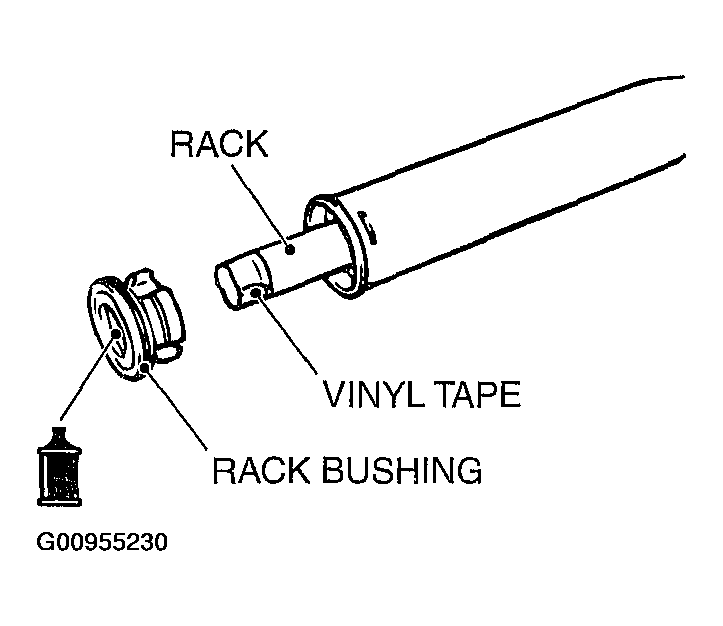

Fig 2: Wrapping Rack End With Plastic Tape, And Pushing Rack Bushing Onto Rack
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
