<< G >> Seal Ring Installation

WARNING: This page is about a different variant/trim than selected.

Because the seal rings expand after installation, tighten after installing by using special tool MB991317 to compress the rings, or press down by hand.

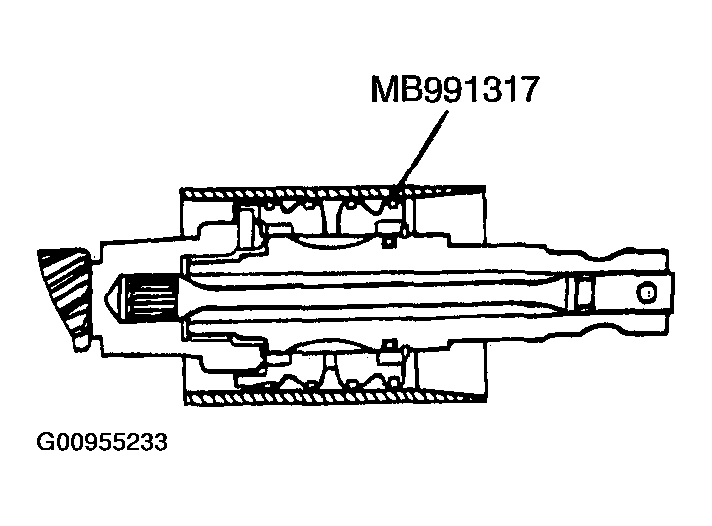

Fig 1: Installing Seal Rings
G00955233Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
