<< N >> Tie Rod End/Tie Rod End Jam Nut Installation
WARNING: This page is about a different variant/trim than selected.

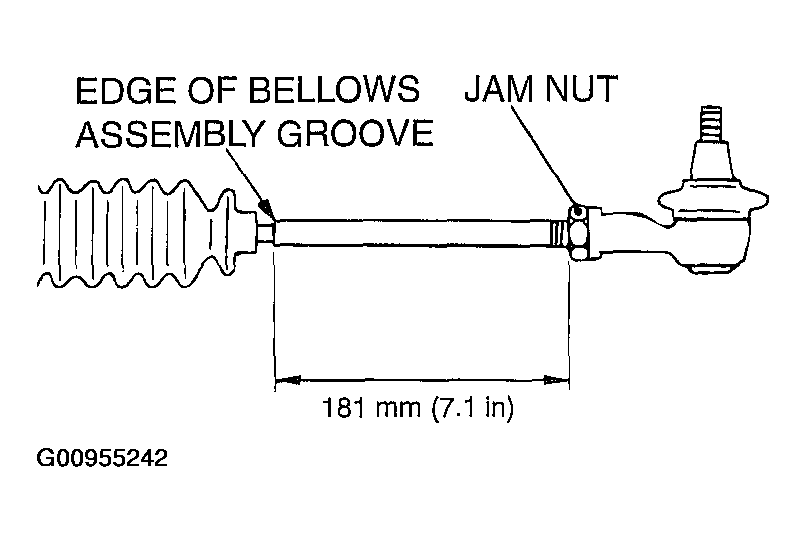

Screw in the tie rod end to achieve the right and left length as illustrated. Lock with the jam nut.
NOTE:
The locking nut must be tightened securely only after the power steering gear box and linkage are installed to the vehicle and toe-in is adjusted.
