<< O >> Gear Mounting Rubber Installation

WARNING: This page is about a different variant/trim than selected.

Install the gear mounting rubber to the rack housing so that the distance is as shown in the illustration.

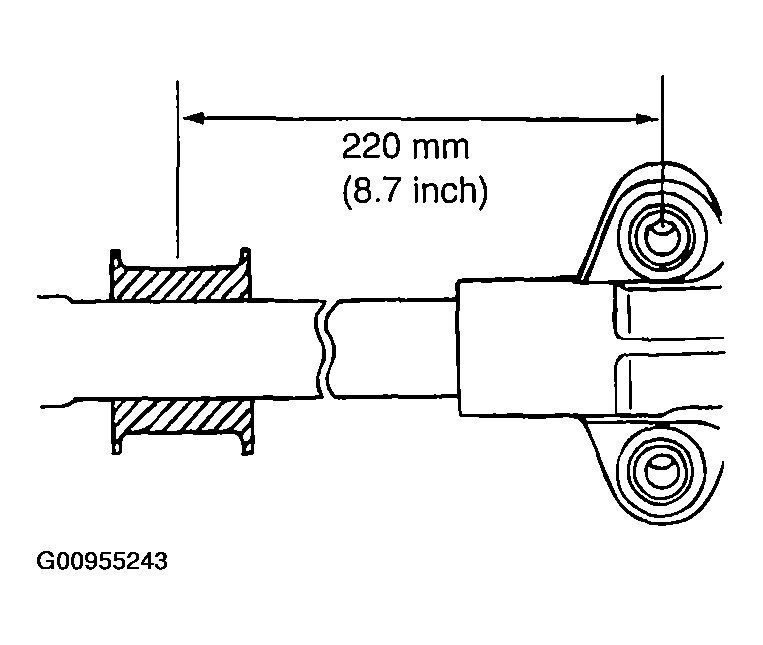

Fig 1: Installing Gear Mounting Rubber To Rack Housing
G00955243Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
