<< A >> Rack Support Cover Removal

WARNING: This page is about a different variant/trim than selected.

Using the following special tool, remove the rack support cover from the steering gear.

MB991204: Torque Wrench Socket < Vehicles with 14 and 15 inch tire<

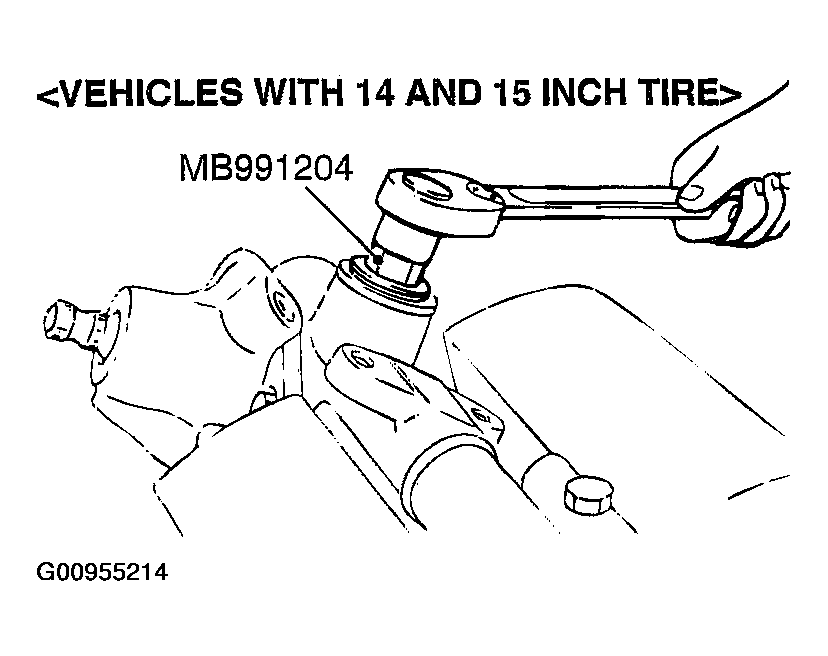

Fig 1: Removing Rack Support Cover From Steering Gear (Vehicles With 14 And 15 Inch Tire)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
MB991621: Piston Driver < Vehicles with 16 inch tire<

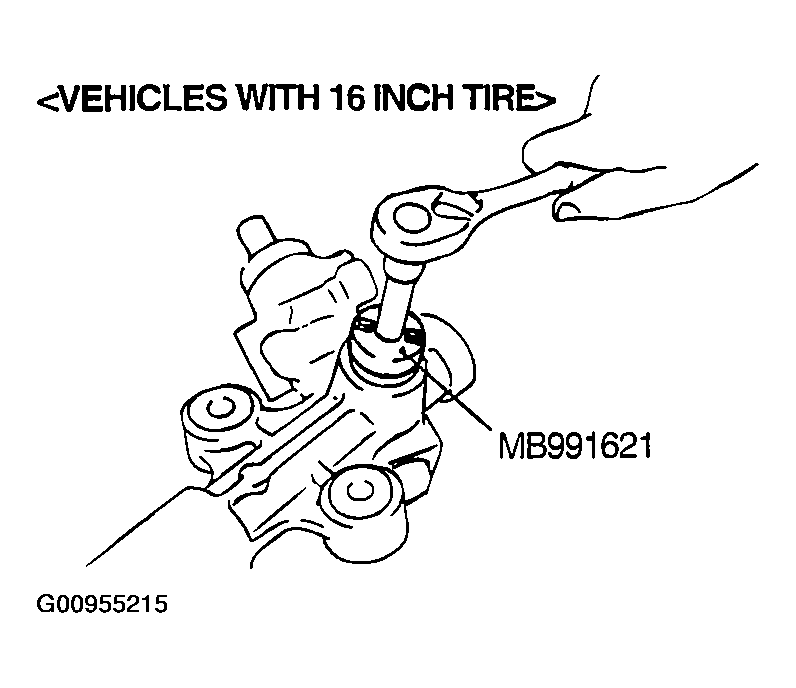

Fig 2: Removing Rack Support Cover From Steering Gear (Vehicles With 16 Inch Tire)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
